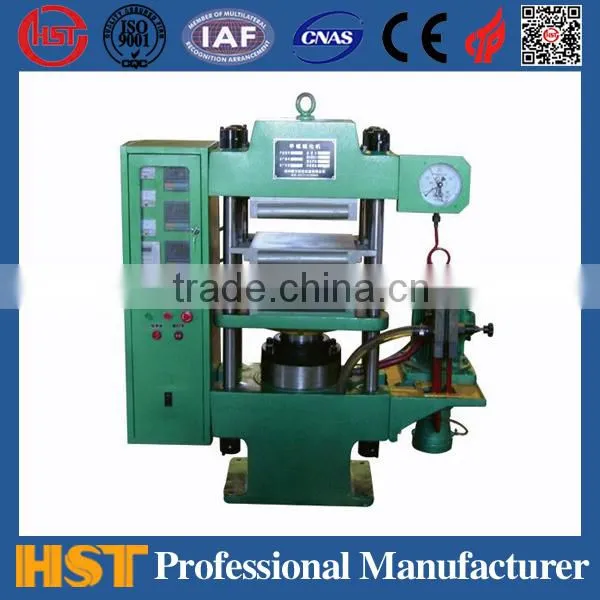

HS-6034 Plate Vulcanizing Press Machine
Plate Vulcanizing Press Machine
Features & Characteristics:
1. this machine is used for vulcanizing all kinds of rubber and plastic mould products, and non-mould products.
2. frame-type structure , hot plate and plunger are high quality material ,has the features with precision machining, difficult to abrasion, anticorrosion, convenient maintenance ,stable working pressure ,and easy to adjust.
3. we can also design and produce according to customer’s requirement .if controlled by PC , vulcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine.
Technical parameters:
Model:HST-6034 type plate vulcanizing press
Total pressure(MN):2.5
The maximum working pressure of hydraulic system:14.5Mpa
Hot plate size:350*350mm
Hot plate distance(mm):75(can be amplified)
Working layer number:2
Piston stroke(mm):250
Piston rising velocity:1.2mm/min(adjustable )
Total power of electric heating: 7.2 KW
Motor power:1.5kw
Max. Operating temperature:Electric heating temperature ≤200 °C
Max. Steam pressure: 0.6-0.8Mpa
Steam heating temperature: ≤170 °C
Size(length×width×height)mm:1250×550×1420mm
Weight:1.2T
Plate Vulcanizing Press Machine
1. What about your delivery time?
A: We have skilled workers and professional work division for assembly and checkout. Usually, our delivery time is 7~14days.
2. What about the transportation?
A: We have stable forwarding agent for Air transportation and Sea transportation. And also express delivery of TNT, DHL.
3. What about your packaging?
A: Digital material universal testing machine packed with export standard wooden box.
Plate Vulcanizing Press Machine
After-sales service commitment
Warranty
The testing machine is guaranteed for a year by Jinan Kason Testing Co., LTD and has whole-life service
(including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely
welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and
support, there will be enjoyable and long-term friendly cooperation.
Plate Vulcanizing Press Machine
Factory
Plate Vulcanizing Press Machine
