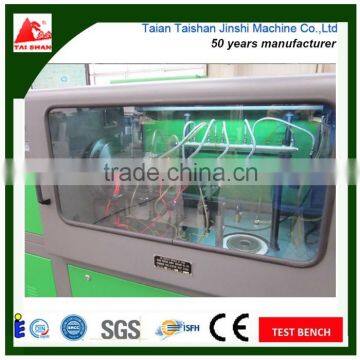

Help CenterFactory Direct Sale CRSS-C Common Rail Testing Machine is a Common Machine for Diesel Fuel Injection CR Products Safety Test
Related Products
-
Low MOQ Injector Pump Tester Common Rail Testing Machine Manufacturer CRSS-CUS$ 5,000 - 7,000MOQ: 1 Set -
The Latest Smart Gadgets and Tools CRSS-C Common Rail Repair Injector Test MachineUS$ 6,000 - 8,000MOQ: 1 Set
-
Common Rail Injector Nozzle Tester for ExportUS$ 0.01 - 6,400MOQ: 1 Set
-
380/220V Voltage and ISO Certification Common Rail Diesel Injector Test BenchUS$ 0.01 - 6,400MOQ: 1 Set
-
CRS900 Common Rail Injector Test Bench With Test Function!!US$ 0.01 - 6,400MOQ: 1 Set
----------------TaiShan jinshi------------------TaiShan jinshi ------------------TaiShan jinshi ------------------
To be working more safe & more convenient every day .
( NEW designs for 2016 NEW YEAR)
(just FOR you ONLY by TaiShan jinshi)
Be NO1 get these new designs RIGHT NOW
CRSS-C Multifunctional test stand for diesel injectors and pumps
" Big discount in 2016! CRSS-C bosch diesel fuel injection pump test bench same design with Bosch eps 815 test bench! "
is based on the diesel engine ECU, also provides control signal of common rail system of
Bosch, Denso, Delphi and Siemens etc. (the CP1 /CP2 /CP3/ HP3 /HP4 / DELPHI),
drive the high pressure common rail injector to work. The user can set parameters according to their actual situation, and save the data according to the different group, so that the servicemen do the correct judgment and maintain of the working of common rail system.
| The main technical parameters | |
| Test Bench Model | CRSS-C |
| Spindle speed range:(r/min) | 0~3000 |
| Spindle roration | Positive and negative |
| Test injector Count | 1~7 |
| Spindle maximum output power(KW) | 11 |
| High pressure common rail fuel supply pressure:(Mpa) | 0~200 |
| The amount of oil conter:(times) | 0~1000 |
| The amount of fuel tank volume:(L) | 42 |
| Pulse width settings:(microseconds) | 0~-3000 |
| Pressure control:(PID) | open loop/close loop |
| Inverter Power:(kW) | 11 |
| Fuel temperature control:(℃) | 40±2 |
| Motor Power:(kW) | 11 |
|
Dimensions:(mm)(L*W*H) /Test Weight:(kg) |
1900*800*1500 /500 |
