Specifications
Drop Testing Machineg1.hydraulic buffer device improve the machine life
2.high testing accuracy

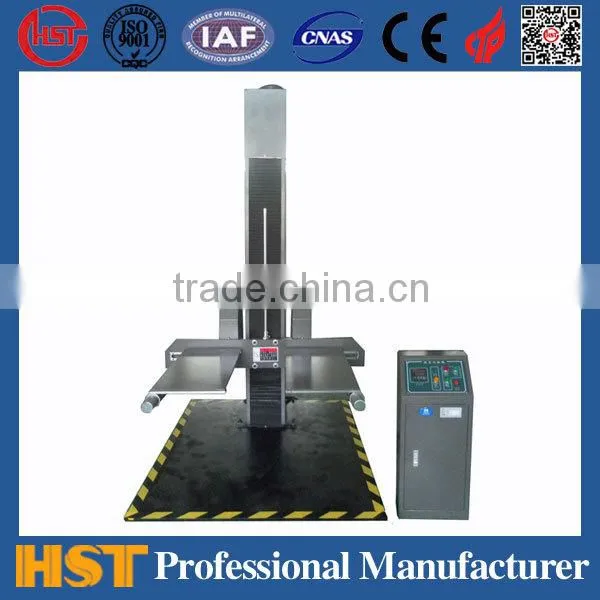

Package Drop Testing Machine
This Drop testing machine is used for testing packaged products are free of the damage degree, fall the rhombohedrons, including packaging container, surface can be tested and evaluate electronic components in handling, falling of strength, mainly used for assessment product package in the transportation, loading and unloading process to improve the ability to withstand fall, perfect packaging design.
Applicable standards :
ISO 2248 JIS Z0202-87 GB/T4857.5-92
Main technical parameters:
Model |
DL-1500 |
DL-2000 |
Drop Height |
300~1500 mm |
300~2000 mm |
Drop Panel Area (W×L×H) |
1700×1400×20 mm |
1700×1400×20 mm |
Specimen Max. Size (L×W×H) |
1000×800×1000 mm |
1000×800×1000 mm |
Arm Size |
290×240×8 mm |
290×240×8 mm |
Drop Error |
± 10 |
± 15 |
Drop Flat Error |
≤5 |
≤5 |
Specimen Max. Weight |
60 Kg |
70Kg |
Outside Dimension (L×W×H) |
1700×1200×2515mm |
1700*1200*2827mm |
Weight of Specimen |
100Kg |
100Kg |
Net Weight |
About600 |
About700 |
Motor power |
1.75KW |
1.75KW |
Power supply |
AC380V/ 50Hz |
AC380V/ 50Hz |
Design Criteria |
GB4757.5-84 |
ISO2248-1072(E) |
Main Features:
This machine can be a face of packaging, horn, edges as free drop test, equipped with digital display
highly display and using decoder the high tracking, which can accurately gives products drop height, and the drop height error less than 2% or 10 mm. The machine adopts single arm double column frame structure, with electric reset, electric control drop and electric lift device, easy to use; Unique hydraulic buffer device to greatly improve the machine service life, stability and security. The single arm Settings, can be easily placed products, drop impact Angle face and floor plane Angle error is less than or equal to 5 º.

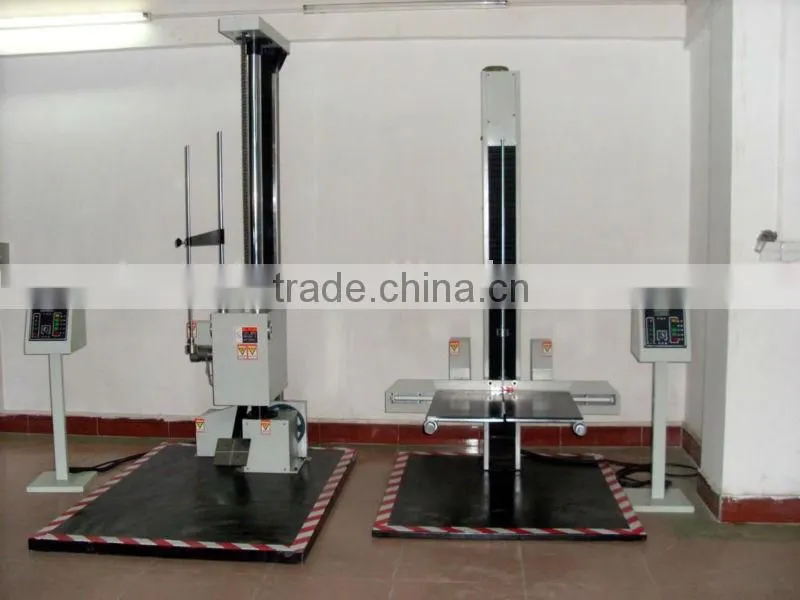

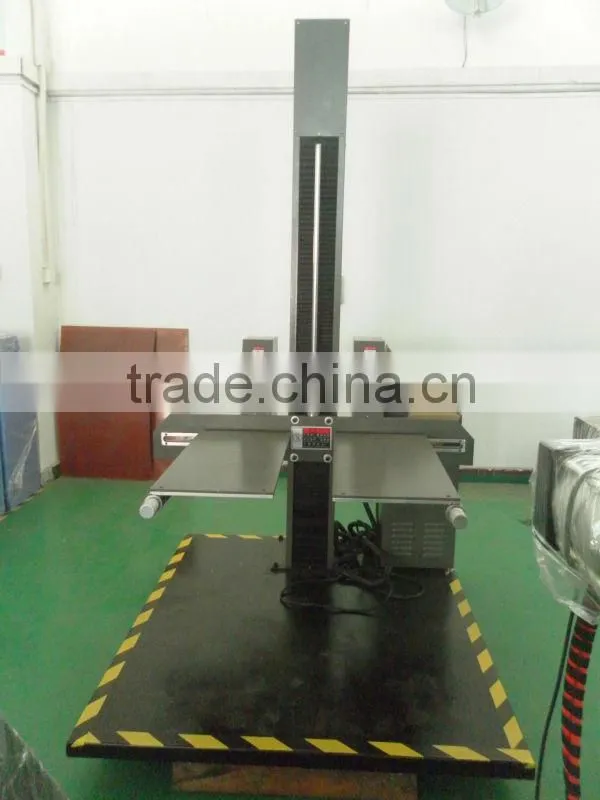

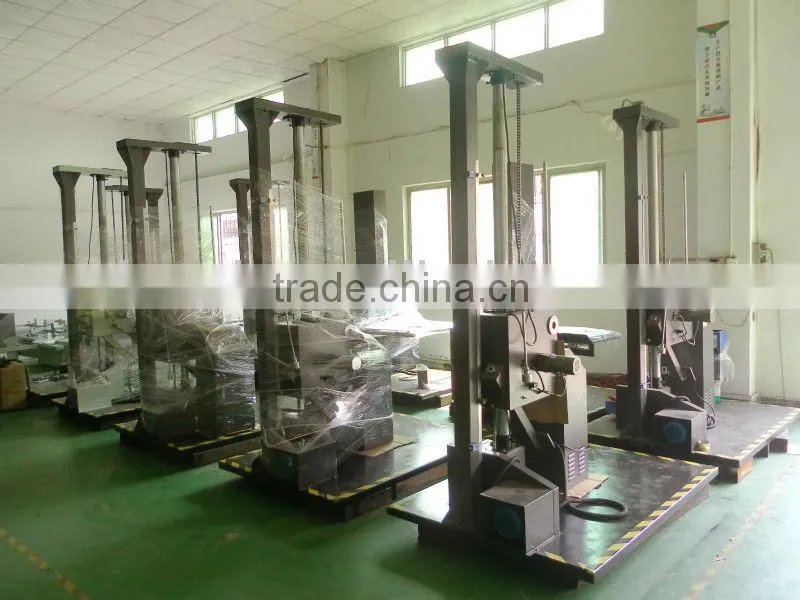

Drop Testing Machine Pics:
CE Certificate:
