Help CenterCommon Rail Injector Test Bench With Full Set Of Common Rail Tools
Related Products
-
Bosch Fuel Injector Test Bench Diesel Car Fuel Engine Test Bank Product Stand PriceUS$ 5,000 - 7,000MOQ: 1 Set -
TSJS-708 A Professional Diesel Auto Common Rail Pump Injector Test StandUS$ 5,000 - 7,000MOQ: 1 Set
-
Best Diesel Pump Test Equipment CRSS-C Common Rail Injector Pump Fuel StandUS$ 5,000 - 7,000MOQ: 1 Set
-
CRSS-C Wholesale Made in China Common Rail Diesel Injector Test StandUS$ 3,500 - 7,000MOQ: 1 Set
-
Common-rail-injector-repair-tool-to-meet-bosch-3- Injector Nozzle Repair MachineUS$ 0.01 - 6,400MOQ: 1 Set
----------------TaiShan jinshi------------------TaiShan jinshi ------------------TaiShan jinshi ------------------
To be working more safe & more convenient every day .
( NEW designs for 2016 NEW YEAR)
(just FOR you ONLY by TaiShan jinshi)
Be NO1 get these new designs RIGHT NOW

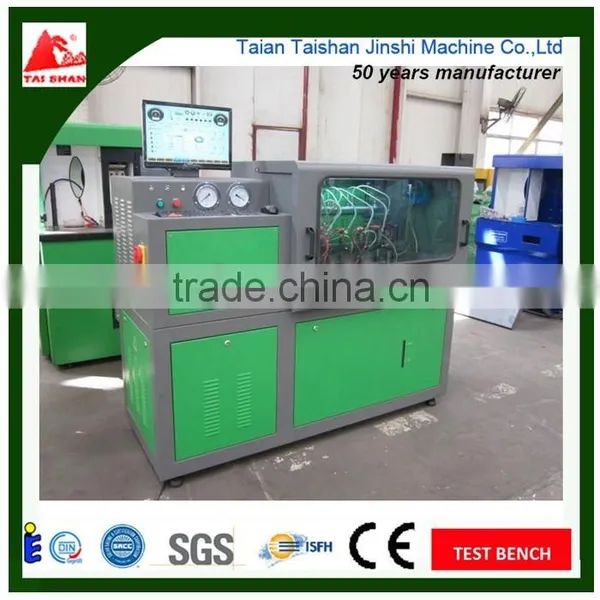

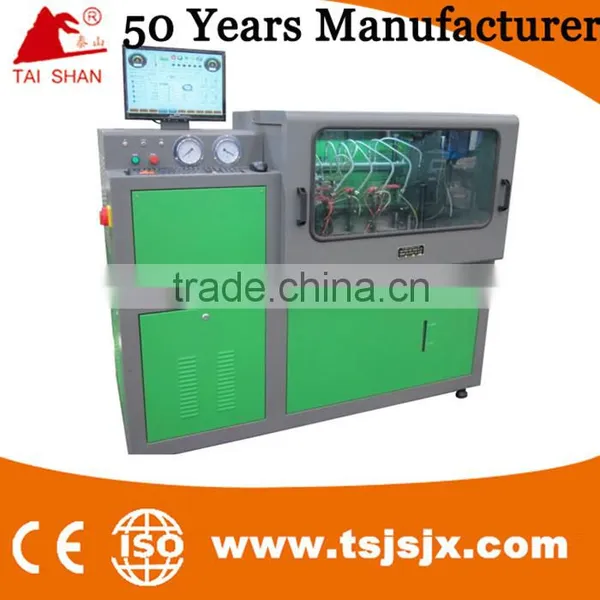

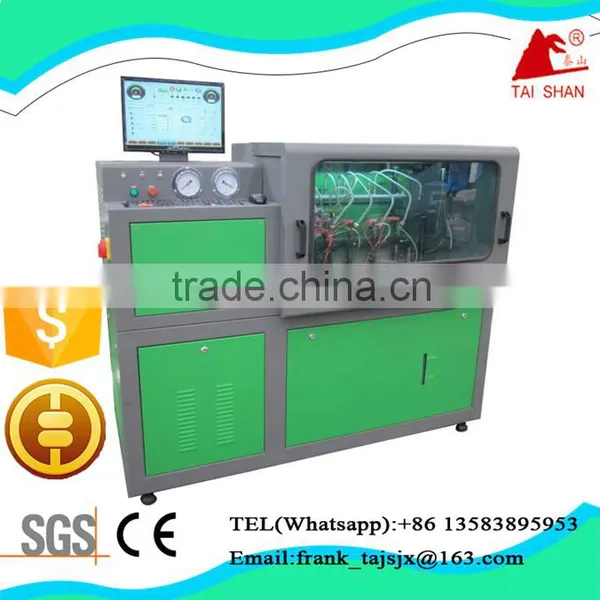

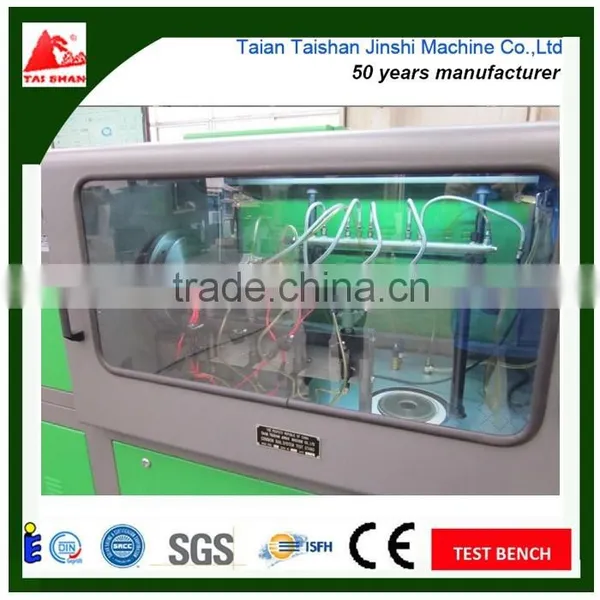

CRSS-C Multifunctional test stand for diesel injectors and pumps
" Big discount in 2016! CRSS-C bosch diesel fuel injection pump test bench same design with Bosch eps 815 test bench! "
is based on the diesel engine ECU, also provides control signal of common rail system of
Bosch, Denso, Delphi and Siemens etc. (the CP1 /CP2 /CP3/ HP0/HP3 /HP4 / DELPHI),
drive the high pressure common rail injector to work. The user can set parameters according to their actual situation, and save the data according to the different group, so that the servicemen do the correct judgment and maintain of the working of common rail system.
| The main technical parameters | |
| Test Bench Model | CRSS-C |
| Spindle speed range:(r/min) | 0~3000 |
| Spindle roration | Positive and negative |
| Test injector Count | 1~7 |
| Spindle maximum output power(KW) | 11 |
| High pressure common rail fuel supply pressure:(Mpa) | 0~200 |
| The amount of oil conter:(times) | 0~1000 |
| The amount of fuel tank volume:(L) | 42 |
| Pulse width settings:(microseconds) | 0~-3000 |
| Pressure control:(PID) | open loop/close loop |
| Inverter Power:(kW) | 11 |
| Fuel temperature control:(℃) | 40±2 |
| Motor Power:(kW) | 11 |
|
Dimensions:(mm)(L*W*H) /Test Weight:(kg) |
1900*800*1500 /500 |
---------------TaiShan jinshi --------------TaiShan jinshi --------------TaiShan jinshi---------------
---------------TaiShan jinshi --------------TaiShan jinshi --------------TaiShan jinshi---------------
---------------TaiShan jinshi --------------TaiShan jinshi --------------TaiShan jinshi---------------
---------------TaiShan jinshi --------------TaiShan jinshi --------------TaiShan jinshi---------------
Taian Taishan Jinshi Machine Co.,Ltd(manufacturer)
Sales Manager - Frank Zhang
ADD: MIDDLE PART OF CHUANGYE ROAD,TAISHAN QINGCHUN CHUANGYE DEVELOPMENT ZONE,TAIAN CITY,SHANDONG,CHINA
TEL:+86-538-8560888
FAX:+86-538-8560888
Mobile No(Whatsapp):+86-13583895953
QQ:1610926861
Skype:weiwei57555
Website: Http://
Http:https://img13.fr-trading.com
Send Inquiry to This Supplier
