2. ultra-low power design , power circuit board smaller .
3. Large-capacity battery configuration , longer life.
Unique intelligent charging protection function , prevention of over- flow , overcharge phenomenon . The battery life of a stronger , more durable .
Good dynamic weighing performance , not because of swaying weighing .
4.equipped with wireless meter for easy operation.

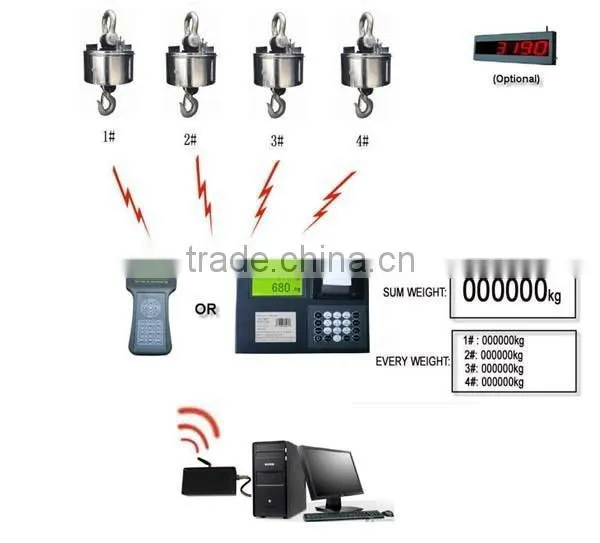

Wireless two-way control , the conventional communication distance of 300 meters above the control scale body switching machine .
5.accumulated , accumulated automatically , peeled, peeled distance, to maintain the value , the display for dividing the value of any weight correction .
6.Overload, underload remind display, low voltage alarm, alarm when the battery capacity is less than 10% . Technical indicators.
(1 ) Accuracy class according to OIML III scales standard
(2) Power battery-powered , scale and monitor batteries are 6V/4AH
( 3 ) Radio Frequency 430MHz to 470MHz, hardware 8 - way point , the software 100 frequency selectable
(4 ) Display update rate 6 times / sec
(5 ) The load cell excitation power supply DC 5V ± 5 %
(6) -10 ℃ -40 ℃ Operating temperature display scale body to compensate for temperature range -10 ° C -50 ° C allowable working temperature of -40 ° C to -70 ° C
( 7 ) scale body battery charging time continuous working time 40 hours
(8) weighing indicator battery charging a standby time of 60 hours
(9 ) wireless transmission distance without block is not less than 500 m
Model |
Max. Cap.(Kg) |
Min. Weigh(Kg) |
Division(Kg) |
Total Display Counts (N) |
OCS-WS1 -01 |
1000 |
10 |
0.5 |
2000 |
OCS-WS 1-02 |
2000 |
20 |
1 |
2000 |
OCS-WS 1-03 |
3000 |
20 |
1 |
3000 |
OCS-WS 1-05 |
5000 |
40 |
2 |
3000 |
OCS-WS 1-10 |
10000 |
100 |
5 |
2000 |
OCS-WS 1-15 |
15000 |
100 |
5 |
3000 |
OCS-WS 1-20 |
20000 |
200 |
10 |
2000 |
OCS-WS 1-30 |
30000 |
200 |
10 |
3000 |
OCS-WS 1-50 |
50000 |
400 |
20 |
2500 |
Accuracy |
Grade Ⅲ , n=3000 |
ower battery-powered |
scale and monitor batteries are 6V/4AH |
Radio Frequency |
430MHz to 470MHz, hardware 8 - way point , the software 100 frequency selectable |
Display |
update rate 6 times / sec |
The load cell excitation power supply |
DC 5V ± 5 % |
Product Description
1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.
2.Delivery time according to the order quantity.
Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.
4) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
