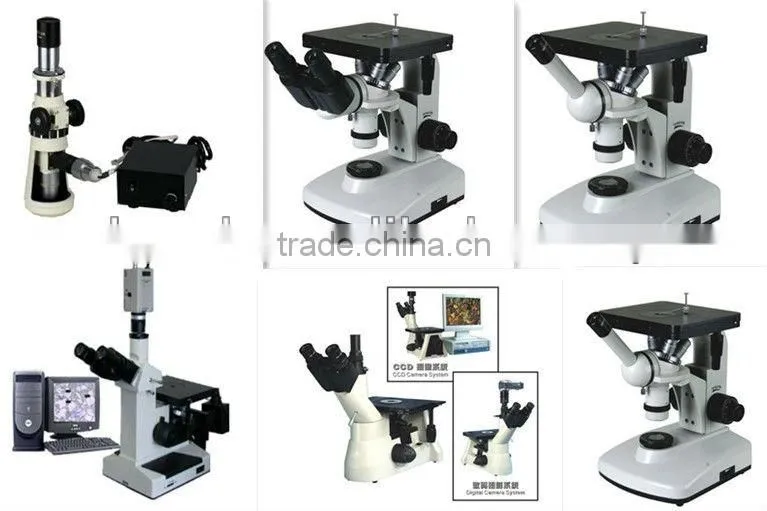

4XC Trinocular Inverted metallographic microscope
Application:
The instrument can used for identification and analysis structures tissue of metal surface, it is important tool for metal physics examining metallurgical structures. It is a crux equipment of appraising the quality for iron and steel, boiler, mine, machine tool tool, automobile, shipping, bearing, diesel engine,farm implement, industry etc.
The instrument can be equipped photo attachment and CCD video camera with photograph metalurgical structures. Metal pictures can be taken and the analyzed, measured, edited, output, savedand managed.
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
Specification:
1.Achromatic Objective:
Magnification |
10X |
20X |
40X |
100X(Oil) |
Numerical |
0.25N.A |
0.40N.A |
0.65N.A |
1.25N.A |
Working distance |
8.9mm |
0.76mm |
0.69mm |
0.44 mm |
2. Plan Eyepiece:
10X (Diameter field Ø 22mm)
12.5X (Diameter field Ø 15mm) (pick out part)
3. Dividing Eyepiece:
10X (Diameter field Ø20mm) (0.1mm/div.)
4. Moving stage:
Working stage size: 200mm×152mm
Moving range: 15mm×15mm
5. Coarse and Fine focusing adjusting device:
Coaxial limited position, Fine focusing scale value: 0.002mm
6. Magnification:
Objective Eyepiece |
10X |
20X |
40X |
100X |
10X |
100X |
200X |
400X |
1000X |
12.5X |
125X |
250X |
600X |
1250X |
7. Photo Magnification
Objective Eyepiece |
10X |
20X |
40X |
100X |
4X |
40X |
80X |
160X |
400X |
|
4X And additional 2.5X-10X |
100X |
200X |
400X |
1000X |
