Specifications
1.Bosch CP3 pump
2.test common rail injector
3.test close to 600 inectors
4.Have Bosch Denso Delphi Siemens data

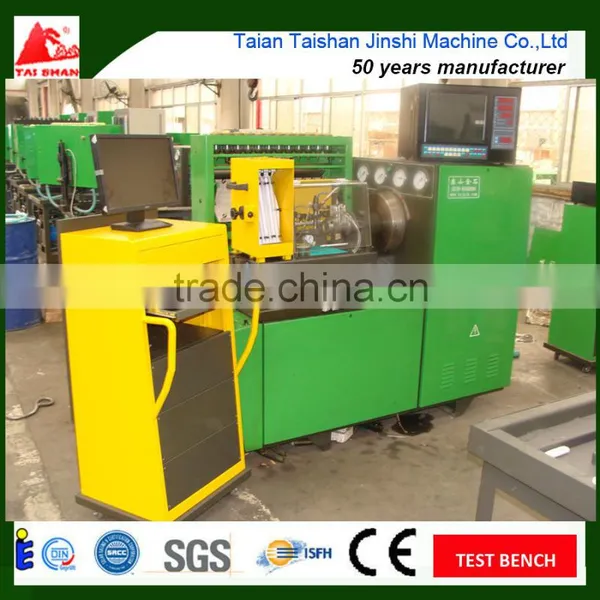

CRIS-1 common rail injector test bench--stable performance
Main Technical Data:
Model |
CRIS-1 |
Rotating speed range of main shaft (rpm) |
0~3000 |
Rotation direction of main shaft |
Positive, negative |
Testable cylinders of injection pump |
1 |
Maximum output power (kw) |
5.5 |
Fuel supply pressure of common rail (Mpa) |
0~160 |
Auto overturn angle of measuring oil plate(degree) |
180 |
Time indication of pour oil (s) |
30 |
Oil measuring frequency |
0~1000 |
Capacity of fuel tank (L) |
20 |
Pulse Width set: (MS) |
0~-3000 |
Pressure control (PID) |
Open loop /close loop |
Power of Ultrasonic cleaner(kw) |
0.2 |
Power of inverter (kw) |
7.5 |
Controlling temperature of fuel (°C) |
40±2 |
Power of main motor (kw) |
5.5 |
Weight (kg) |
350 |
