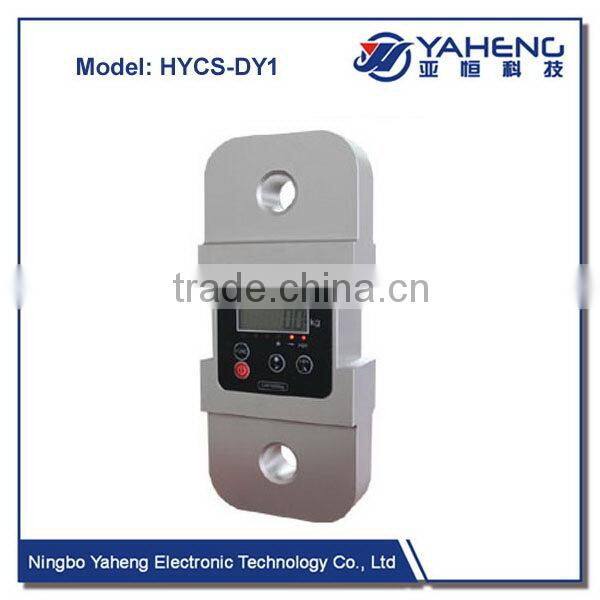

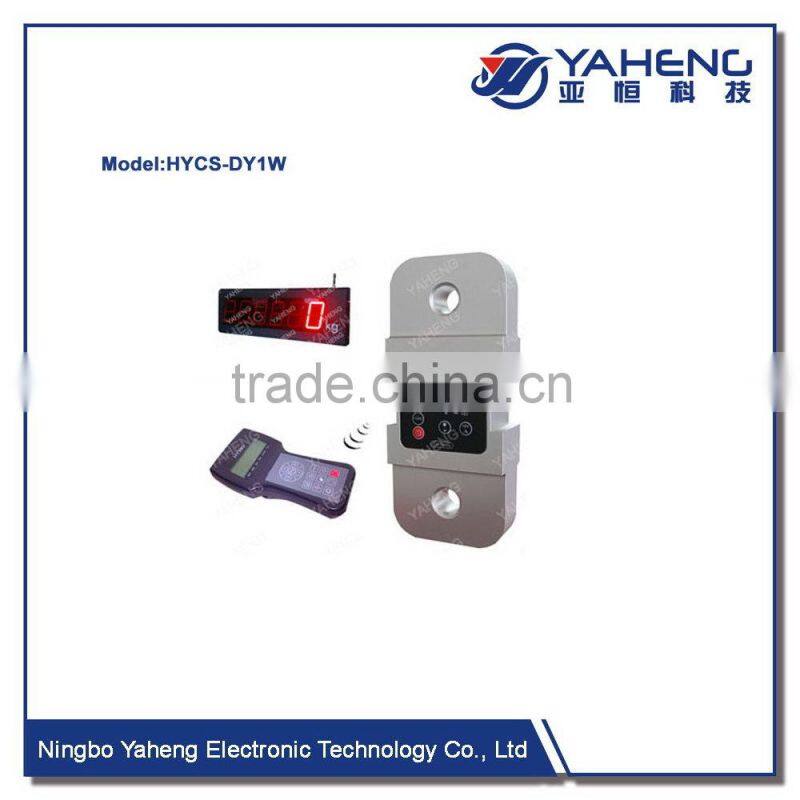

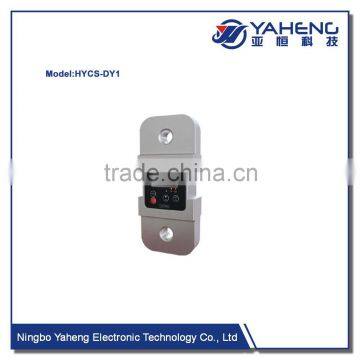

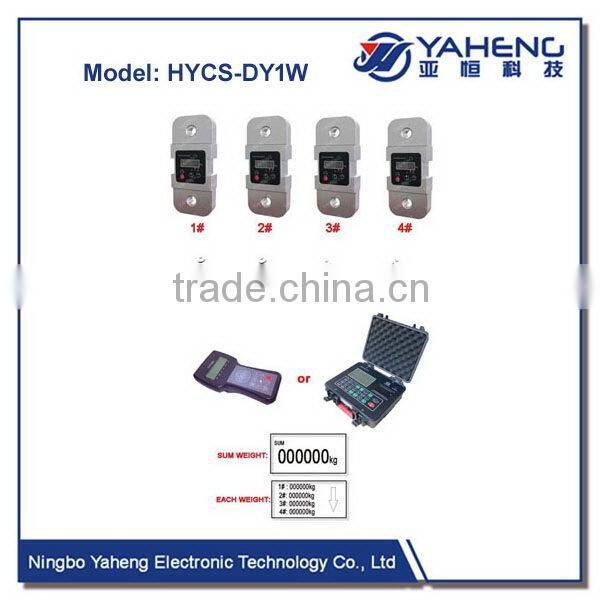

high quality weight indicator HYDY1W Wireless Weighing Sensor Load electronic scale transmitter and receiver
- 5000 Set / Sets per Month
- Ningbo or Shanghai
- Credit Card
You May Like
-
industrial scale wireless Crane Scale OCS WZ1 Electronic Weighing with beam crane weighing scales platform digital display
-
1t 2t 3t 5t 10t Hanging scale digital weighing for crane scale
-
Popular Electronic Weighing with crane mini scale Load Capacity 100kg to 10T ocs crane scale
-
Cheapest Weighing Crane Scale architectural scale models aluminium digital crane scale 2 ton
-
Industry Electronic wireless Crane Scale OCS Digital electronic crane scale 300kg~1T with dry battery
-
High Precision bench Scale sales HYCS 2 body scale 2000kg digital Weighing ocs crane Scale With Plate Ningbo China
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YAHENG | |
| Model Number | HY-DY1W | Type | Crane Scale | |
| Power Supply | 3pcs*AA battery | Display Type | LED | |
| Rated Load | 0.25KG | Accuracy | 0.01g, Grade 3 , n=3000 |
Product Description
engine dynamometer features:
1 . Accuracy: Grade Ⅲ , n=3000
2 . Sample Rate : 8 0 times / second
3 . Scale interval : 1/2/5/10/20/50 for option
4 . Display : 6 bits L C D , 6 state indicating signals
5 . Communication interface : Wireless signal
6 . Power supply: Battery AA 1.5V*3
7 . Operating temperature/humidity: -1 0 ~ 45 ℃ ; ≤90%RH
8 . transporting temperature: -20 ~ 50℃
DIMENSIONS(Dimensions shown are nominal and subject to tolerances)
Model | Cap. | Div | A | B | C | D | φ | H | Material |
(mm) | |||||||||
HYCS-DY1-01 | 1t | 0.5kg | 245 | 112 | 3 5 | 190 | 43 | 335 | Aluminum |
HYCS-DY1-02 | 2t | 1kg | 245 | 116 | 3 5 | 190 | 43 | 335 | Aluminum |
HYCS-DY1-03 | 3t | 1kg | 260 | 123 | 3 5 | 195 | 51 | 365 | Aluminum |
HYCS-DY1-05 | 5t | 2kg | 285 | 123 | 5 5 | 210 | 58 | 405 | Aluminum |
HYCS-DY1-10 | 10t | 5kg | 320 | 120 | 5 5 | 230 | 92 | 535 | Alloy |
HYCS-DY1-20 | 20t | 10kg | 420 | 128 | 7 0 | 260 | 127 | 660 |
Alloy |
HYCS-DY1-30 | 30 | 10kg | 420 | 138 | 8 0 | 280 | 146 | 740 | Alloy |
HYCS-DY1-50 | 50t | 20kg | 465 | 150 | 10 0 | 305 | 184 | 930 | Alloy |
HYCS-DY1-100 | 100t | 50kg | 570 | 190 | 1 4 2 | 366 | 229 | 1230 | Alloy |
1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.
2.Delivery time according to the order quantity.
Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.
4) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
