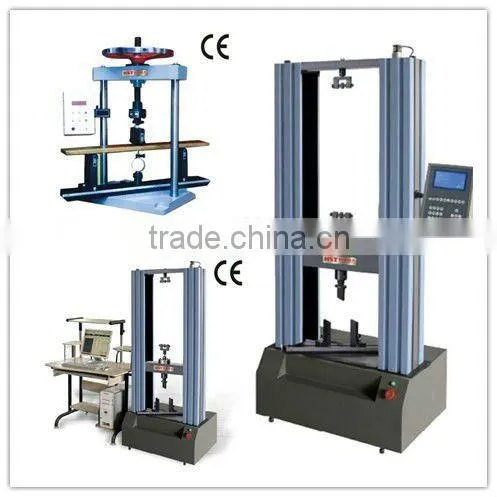

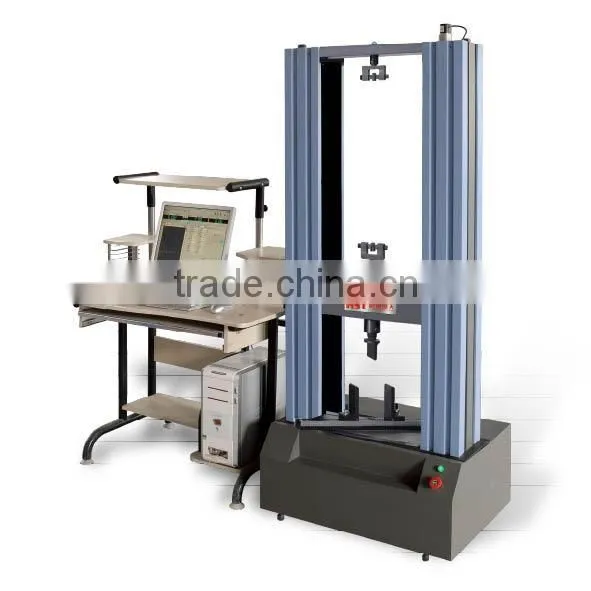

MWW 5KN 10KN 20KN 50KN Computer Control artificial board testing machine
1.Introduction:

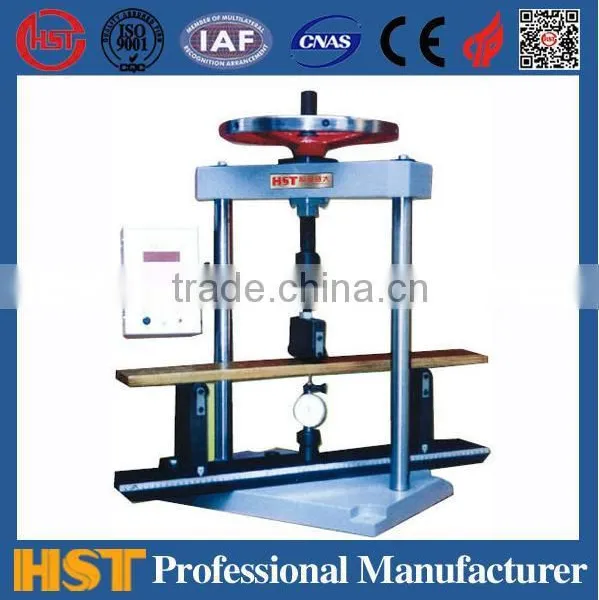

Man Made Wood Static Bending Tester made for the wood manufacturing and quality supervision station. Can do the following test: bone strength, surface bone strength, tensile strength, static bending strength, modulus of elasticity test, screw griping test and shear test of ofMDF,shaving board, plywood, core-board.
2. Standard:
GB/T17657-1999, EN, ASTM, GB/T 16491-1996
3.Technical parameters:
Model |
MWW-5 |
MWW-10 |
MWW-20 |
MWW-50 |
|
Max testing force(KN) |
5 |
10 |
20 |
50 |
|
Testing force level |
1 Level |
||||
Testing range |
1%--100%FS |
||||
Relative error of indicating value |
≤±1% |
||||
Force resolution |
1/300000 |
||||
Displacement resolution |
≤±1% |
||||
Displacement resolution(mm) |
0.01 |
||||
Load speed(mm/min) |
0.05-500 |
||||
Effective tensile space(mm) |
800 |
700 |
|||
Effective compression space(mm) |
750 |
650 |
|||
Effective testing width(mm |
350 |
400 |
|||
4.Package list:
Name |
Quantity |
10KN high strength host |
1 pc |
High precision photoelectric encoder |
1 pc |
Digital servo control system and digital servo control motor |
1 set |
High precision ball screw assembly |
2 sets |
High precision arc synchronous gear system |
1 set |
High precision arc synchronous gear system |
1 set |
Special measurement and control system |
1 set |

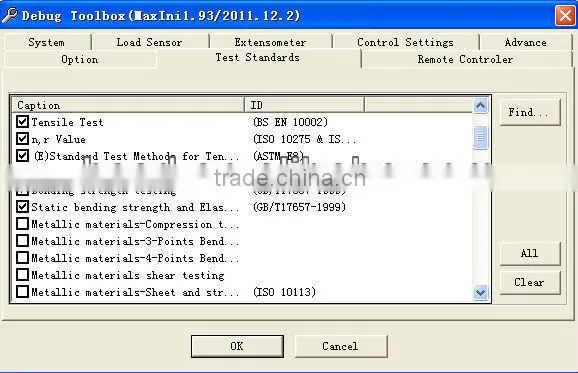

Under WINDOWS operating environment MAXTEST special software |
1 set |
LENOVO computer |
1 set |
HPA4 printer |
1 set |
Standard configuration with 6 sets testing fixtures as below | |
Surface bonding strength testing fixture |
1 set |

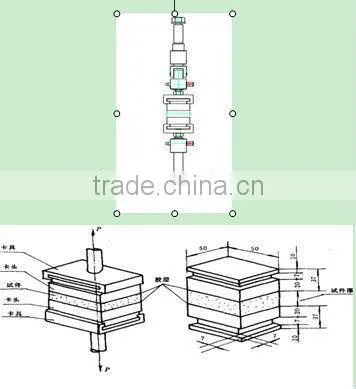

Internal bonding strength testing fixture |
1 set |
Screw holding strength testing fixture |
1 set |
Static bending strength testing fixture |
1 set |
Elastic modulus testing fixture |
1 set |
Screw griping testing fixture |
1 set |
Technical document |
1 set |

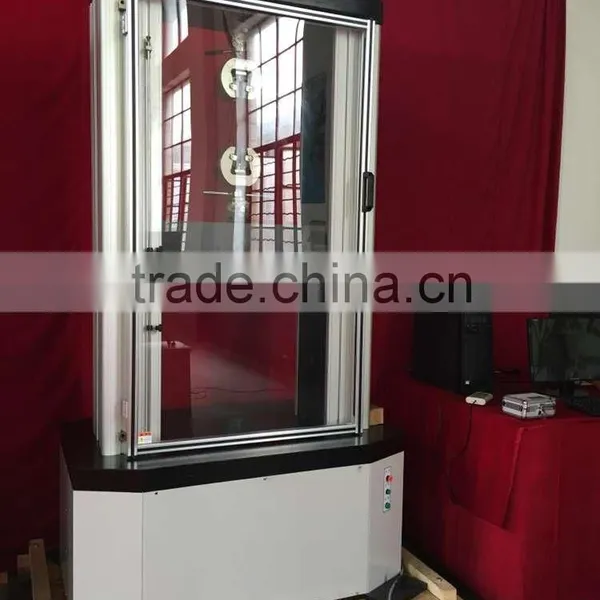

MWW 5KN 10KN 20KN 50KN Computer Control artificial board testing machine
MWW 5KN 10KN 20KN 50KN Computer Control artificial board testing machine

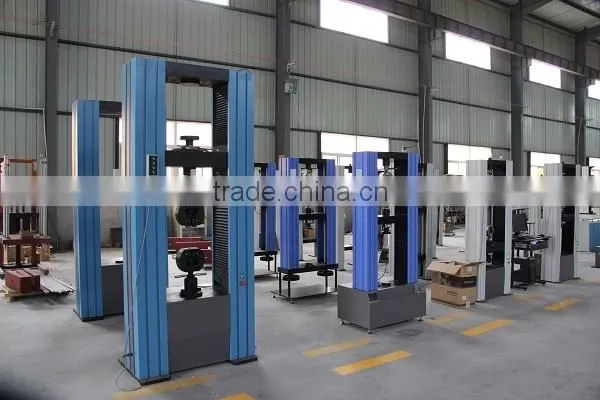

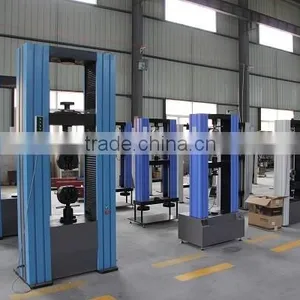

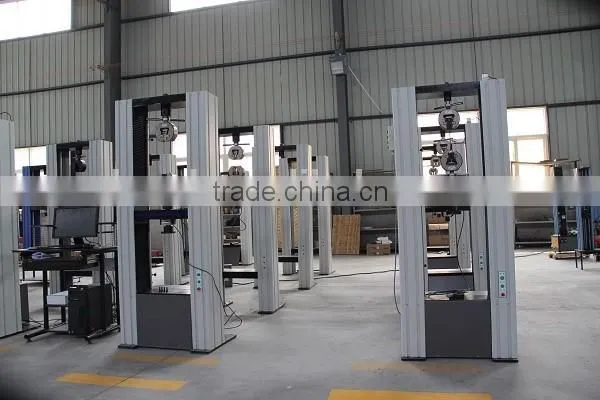

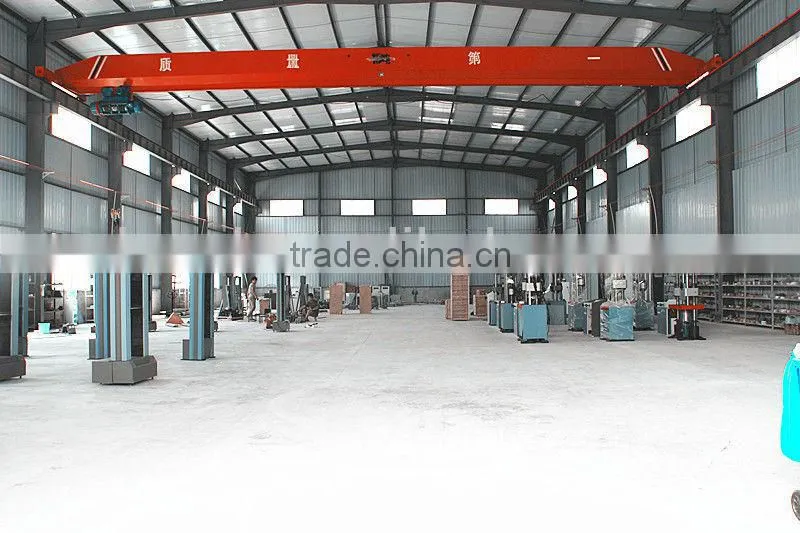

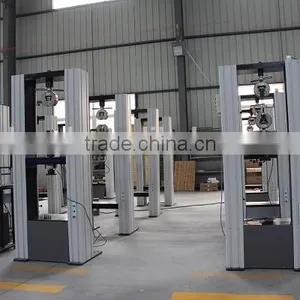

Factory Picture
CE Certificat
Contact me : Sunny
mobile:+86-15589960023
Skype:jessica-hssd
We sincerely welcome friends at home and abroad to cooperate with us.
We would like to offer you our best products and service.
