JB-300 manual operated impact testing machine
JB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped. The impact cutter is installed and fixed by screws and is convenient and easy to be replaced. Safety guard pin is arranged on the principle machine which is also provided with safety guard net.
Semi Impact Testing machine specification:
|
Model
|
JB-300B |
JB-500B |
JB-800B |
||
|
impact energy
|
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
850mm |
800mm |
||
|
Impact speed
|
5.2m/s |
5.4 m/s |
5.9m/s |
||
|
Pre-rising angle of the pendulum
|
150° |
||||
|
Specimen bearer span
|
40+0.2mm |
||||
|
Round angle of the jaw
|
R1-1.5mm |
||||
|
Round angle of impact edge
|
R2-2.5mm,R8±0.05mm |
||||
|
Angle accuracy
|
0.1° |
||||
|
Standard specimen dimension
|
10mm×10(7.5/5)mm×55mm |
||||
|
Power supply
|
3phs, 380V, 50Hz Or 220V,60Hz |
||||
|
Dimensions (mm)
|
2124*600*1340 |
2200*650*1960 |
2450*1200* 2455 |
||
|
Net Weight (kg)
|
450 |
650 |
2300 |
||
Impact Testing Machine Configurations:
1). Main unit----------1 set
2). Pendulum
JB-300B |
JB-500B |
JB-800B |
150J/300J--2 pcs |
250J/500J--2 pcs |
500J/800J--2 pcs |
3). Span specimen plate (L = 40mm)----1 pc
4). Specimen centering plate (L = 40mm)(U, V)----1 pc
5). Stripping attachment----1 pc
6). Internal hexagonal wrench (S=12mm)---1 pc
7). Anchor bolts (M16x300mm)---4 pcs
8). Impact testing security guards----1 pc
JB series Impact Testing Machine :
Impact Testing Machines in stock, can be shipped directly after receiving orders:
Izod Impact universal Testing Machine photo:
Impact Specimen Gap Broaching Machine: --- For cutting notch of the impact sample in impact test.
CST-50 Charpy Projector --- use for checking the processing quality of U or V-shaped notch of the impact specimen.

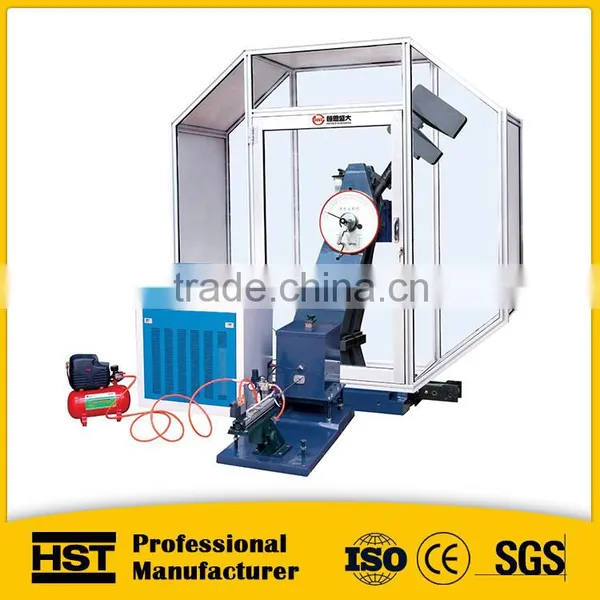

DWC series Low Temperature Chamber --- use for cooling the impact sample before low temperate imapct test .
Compressor Cooling Chamber Liquid Nitrogen Cooling Chamber
CE certificate:
Company photo:
Our impact testing machines& other related products can be delivery within 3 working days --5 working days after receiving payment, the products can be shipped by air, by sea or by express delivery !
1) Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
2) Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3) Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
4) Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
Dear customer, if you need our testing machines, please contact with us without any hesitate ! We will supply our best service for you ! Best Wishes !
-------------
Adela Wang
Jinan Hensgrand Instrument Co.,Ltd.
Tel/WhatsApp: +86-18660396497
Fax:+86-531-81901323
TradeManager: cn1519065146tuuj
Add: 4915,West Jingshi Road,Jinan city,ShanDong Province,China
If you interested in below two kinds of impact testing machines, please click picture directly for details :

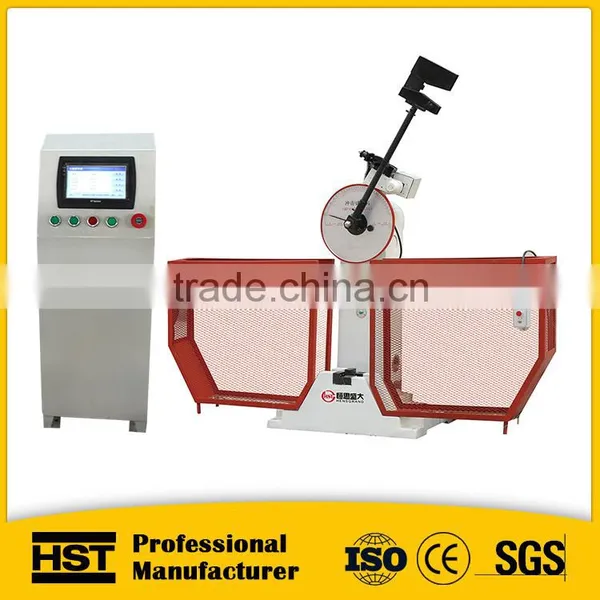

digital impact testing machine JBS-300B computer display impact testing machine
