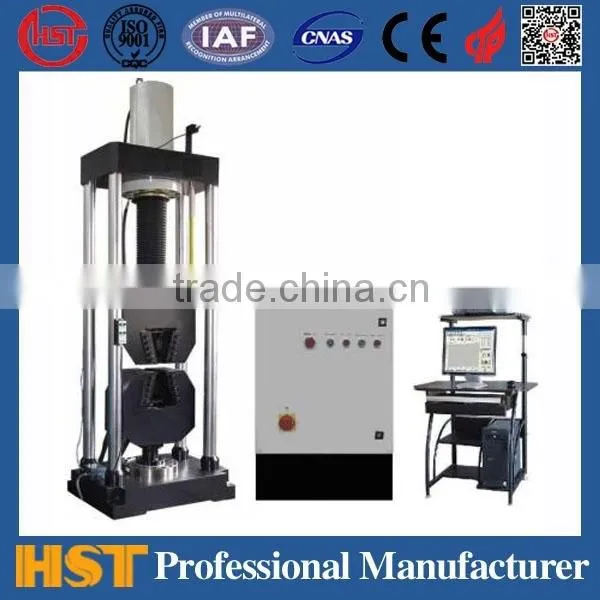

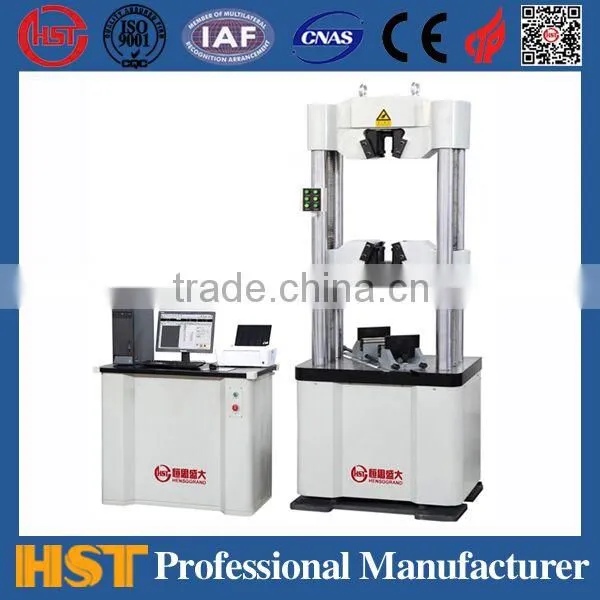

WEW-D Computer Display Hydraulic Loading Parts of Universal Testing Machine
1. Application
The Parts of Universal Testing Machine adopts hydraulic loading, Computer Display,
easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2. Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3. Host Features
3.1adopts that fuel tank is mounted under the host, tensile test space is located above the host, compression, bending, shearing test space is located under the host, means between beam and worktable
3.2The structure is designed with solid four column and two screw, the whole machine has strong stability.
3.3The host is designed all-inclusively to ensure its super strong stiffness so that it can resist micro-deformation when it is loading.
3.4Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.
3.5 Fuel tank adopts gap sealed, improving the measurement accuracy and also extending service lifetime.
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
4. Overload protection
4.1 When the test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.
4.2 When the piston rises to the upper limit position, travel protection, pump motor will stop.
5. Main specifications
Model |
WEW-300D |
WEW-600D |
WEW-1000D |
|||
Max load (kN) |
300 |
600 |
1000 |
|||
Structure |
6 column Parts of Universal Testing Machine |
|||||
Control way |
loading process manual control,computer automatic data dealing |
|||||
Load accuracy |
≤±1% or ≤± 0.5% |
|||||
Load range |
2%-100%FS or 0.4%-100%FS |
|||||
Load resolution |
1/300000 |
|||||
Deformation Measurement Range |
2%~100%FS |
|||||
Deformation accuracy |
≤±1%/± 0.5% |
|||||
Displacement resolution |
0.01mm |
|||||
Displacement error |
≤±0.5% |
|||||
Max.piston stroke |
250mm |
|||||
Max. tension test space |
650mm (can customize) |
|||||
Max.Compression Test Space |
500mm (can customize) |
|||||
Oil cylinder moving speed |
140 |
90 |
50 |
|||
Crosshead moving speed |
200 |
150 |
120 |
|||
Effective space between columns (mm) |
430 |
475 |
525 |
|||

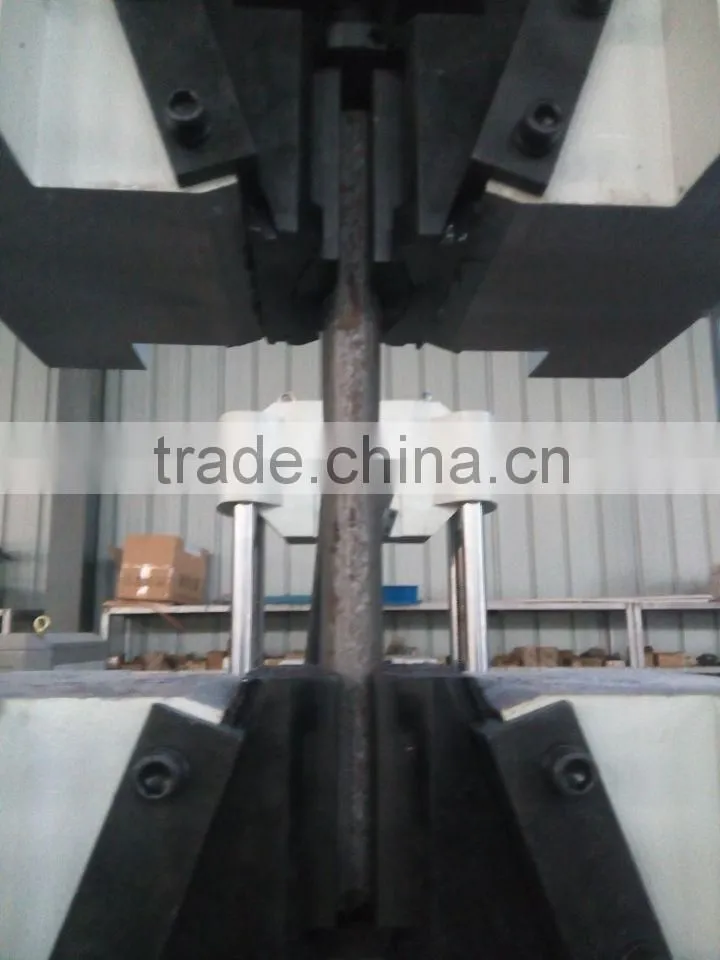

Round specimen clamping range |
Φ10-Φ32mm |
Φ13-Φ40mm |
Φ13-Φ40mm |
|||
Flat specimen clamping range |
0-15mm |
|||||
Clamping method |
Hydraulic clamp |
|||||
Clamp height |
70mm |
90mm |
90mm |
|||
Clamping width |
75mm |
80mm |
80mm |
|||
Compression plate size |
φ160mm |
|||||
Bending roller distance |
450mm |
|||||
Width of bending rollers |
120mm |
|||||
Power supply |
3-phase,AC380V, 50Hz(can be customized) |
|||||
Parts of Universal Testing Machine
WAW-F Single Pull HWS Dynamic Static UTM WAW-H UTM
Rubber , Film High Low Temperature Plywood Spring
Machine' Packaging: Parts of Universal Testing Machine
Q:Are your company a trading one or a factory? Parts of Universal Testing Machine
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
Parts of Universal Testing Machine
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
And welcome to our company! We display more new design in our showroom.
♥ Main web site: : http://www.
Tel: 86 531-58618759| Fax: 86 531 86113759
Parts of Universal Testing Machine
