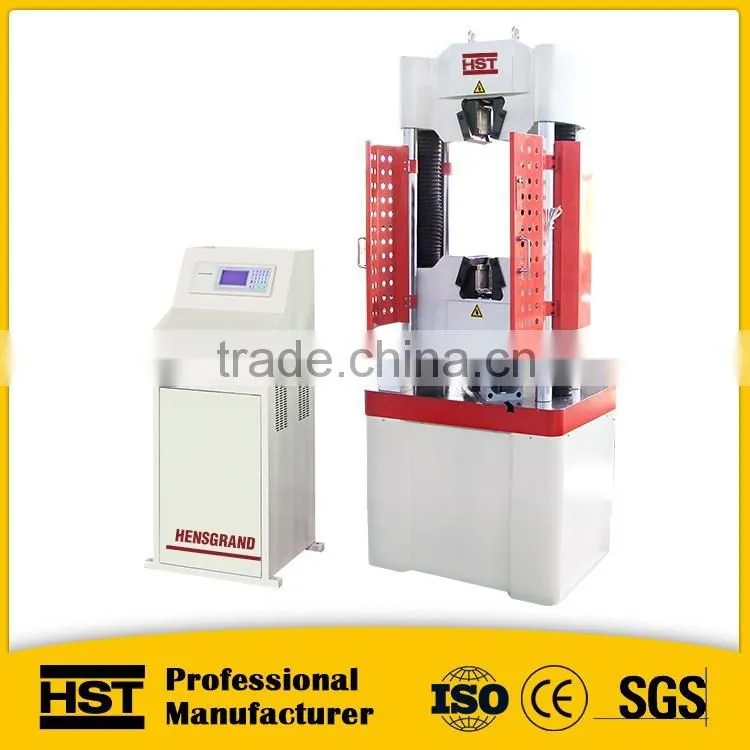

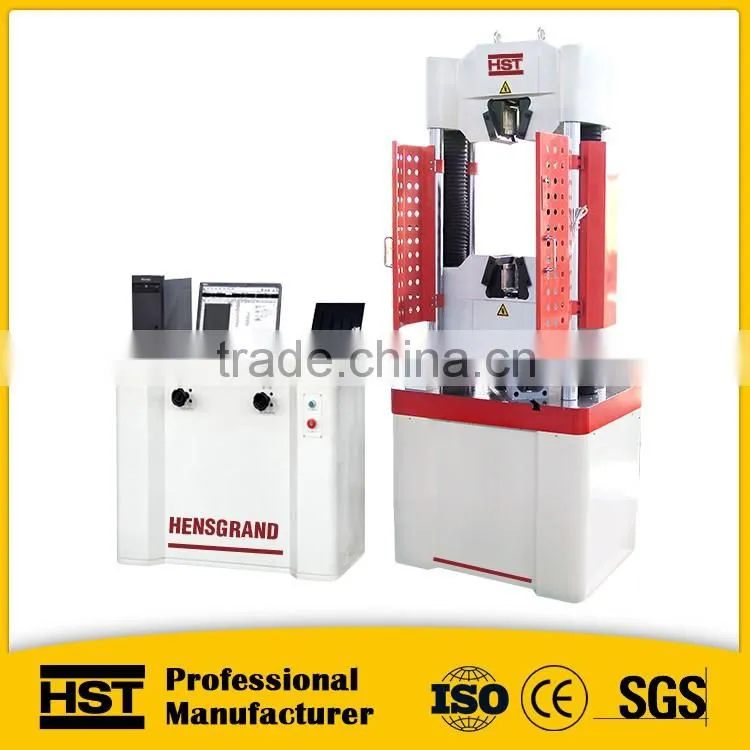

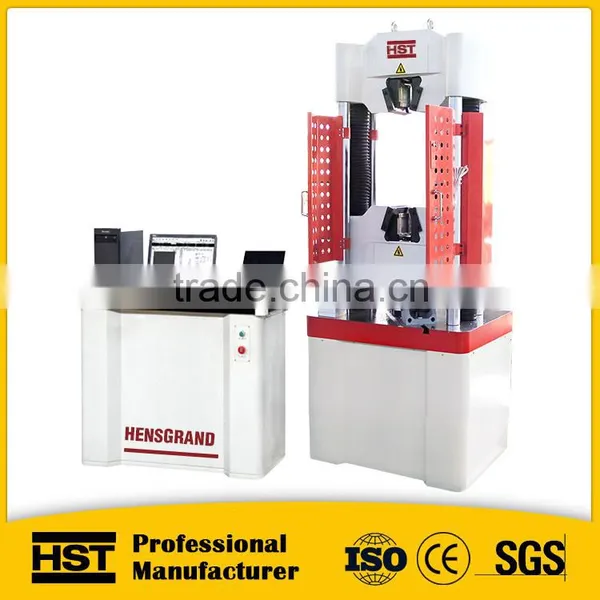

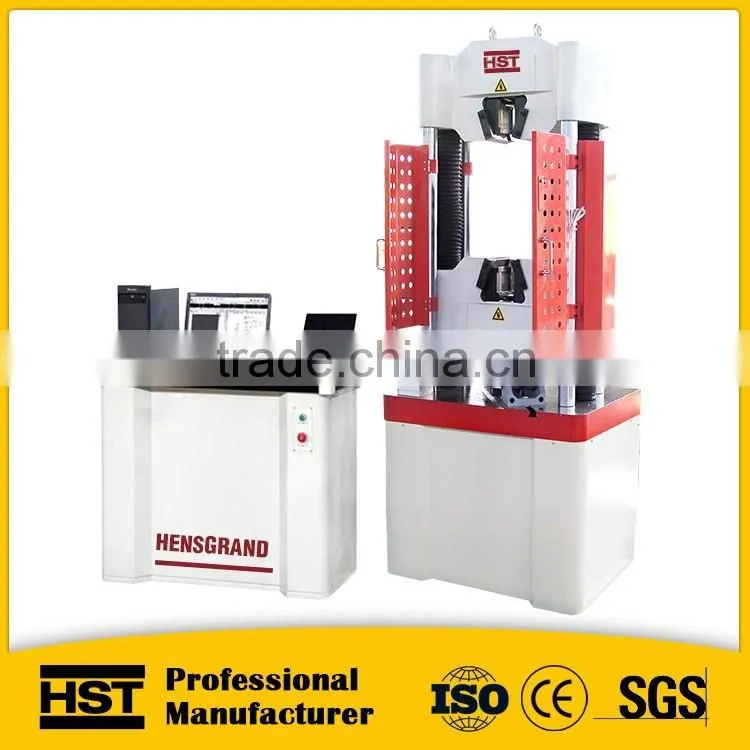

Hot Sale WEW-D 300KN 600KN 1000KN Hydraulic
Universal Compression Tension Testing Machine
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
1. Application
UniversalCompression Tension Testing Machine is suitable for tension,
compression, bending, shearing,peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards of universal testing machine price
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications universal testing machine price
Model |
WAW-300D |
WAW-600D |
WAW-1000D |
|||
Max load (kN) |
300 |
600 |
1000 |
|||
Structure |
6 column Compression Tension Testing Machine |
|||||
Control way |
constant stress uniform deformation constant displacement three closed loop control and program control |
|||||
Load accuracy |
≤±1% or ≤± 0.5% |
|||||
Load range |
2%-100%FS or 0.4%-100%FS |
|||||
Load resolution |
1/300000 |
|||||
Deformation Measurement Range |
2%~100%FS |
|||||
Deformation accuracy |
≤±1%/± 0.5% |
|||||
Displacement resolution |
0.01mm |
|||||
Displacement error |
≤±0.5% |
|||||
Max.piston stroke |
250mm |
|||||
Max. tension test space |
650mm (can customize) |
|||||
Max.Compression Test Space |
500mm (can customize) |
|||||
Oil cylinder moving speed |
140 |
90 |
50 |
|||
Crosshead moving speed |
200 |
150 |
120 |
|||
Effective space between columns (mm) |
430 |
475 |
525 |
|||
Round specimen clamping range |
Φ10-Φ32mm |
Φ13-Φ40mm |
Φ13-Φ40mm |
|||
Flat specimen clamping range |
0-15mm |
|||||
Clamping method |
Hydraulic clamp |
|||||
Clamp height |
70mm |
90mm |
90mm |
|||
Clamping width |
75mm |
80mm |
80mm |
|||
Compression plate size |
φ160mm |
|||||
Bending roller distance |
450mm |
|||||
Width of bending rollers |
120mm |
|||||
Power supply |
3-phase,AC380V, 50Hz(can be customized) |
|||||
4. Our machine feaures: Compression Tension Testing Machine

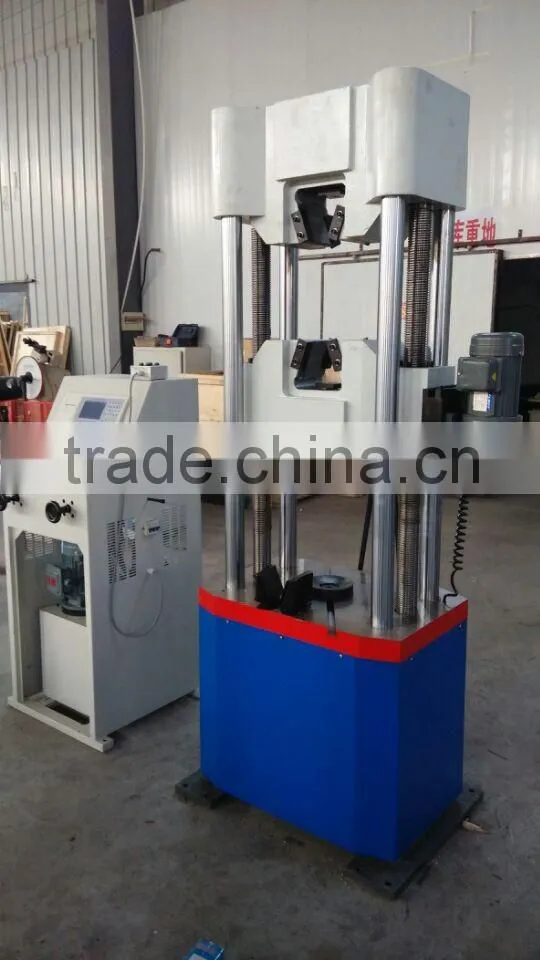

1. It has three parts: Host & oil source &measurement control system
2. Automatic rise, down, test and stop
3. Deepen jaw seat can prevent trumpet-shaped deformation as non-uniform stress in the test, can improve the soundness and life, make holding more firm and smooth
4. Between the jaw seat and jaw plate added wear-resisting backing board, protect the jaw seat and card plate, making the jaw seat more flexible
5. Between the host base and screw using the cone bearing which make screw rotation more stable and reliable, while solved the gap influence in the test progress
6. The middle cross bar adopt the adjustable gap nut mechanism, eliminated the gap and improve the measuring performance
7. All inclusive type host designed to ensure that its super stiffness to resist loads trace deformation
Compression Tension Testing Machine
Rubber , Film High Low Temperature Plywood Spring
Compression Tension Testing Machine
WEW-D UTM WE-D UTM WAW-D UTM
Compression Tension Testing Machine
Q:Are your company a trading one or a factory? Compression Tension Testing Machine
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
universal testing machine
Q:After an order is placed, when to deliver? Compression Tension Testing Machine
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality? Compression Tension Testing Machine
universal testing machine
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!

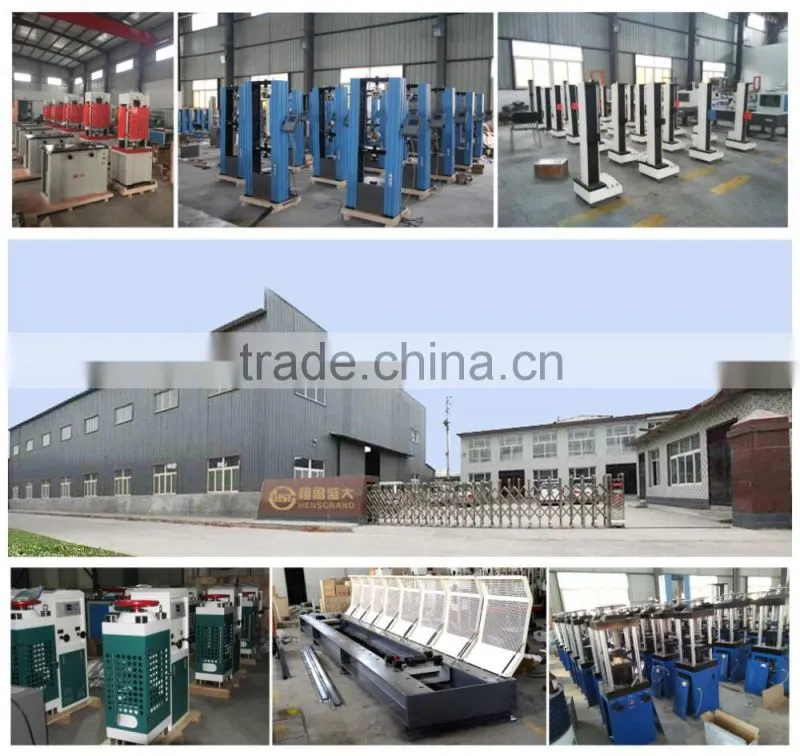

And welcome to our company! We display more new design in our showroom.
♥ Main web site: : http://www. universal testing machine price
Tel: 86 531-58618759| Fax: 86 531 86113759 universal testing machine price
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
