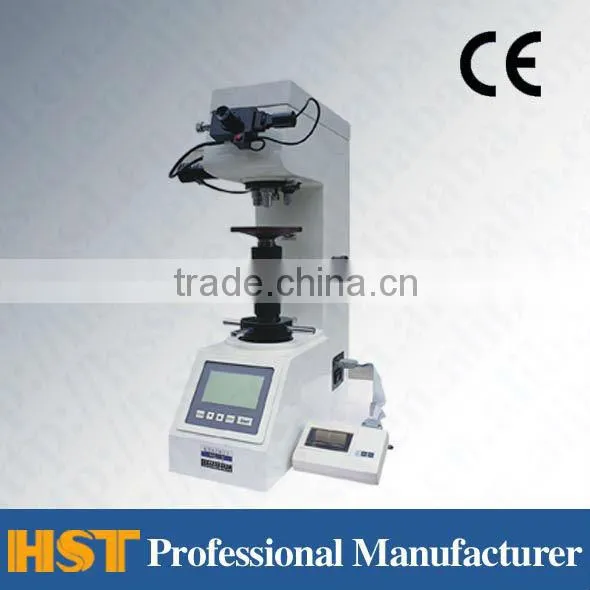

HVS-50 Digital Display Micro Vickers Hardness Tester+ Vikers Durometer

Feature & Use

Frictionless loading shaft, high precision testing force

LCD display, menu operating, complete function with data processing, hardness value conversion and so on

Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92

It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.

Specifications

   Measuring range: 5-2900HV

   Test force: 9.807, 49.03, 98.07, 196.1, 294.2, 490.3N

                    (1, 5, 10, 20, 30, 50kgf)

   Max. Height of test piece: 180mm

   Depth of throat: 125mm

   Magnifications of the measuring system: 125X, 250X

   Min. scale value of the optical micrometer: 0.5μm

   Power supply: 220V AC or 110V AC, 50 or 60Hz

   Dimensions: 580 x 260 x 730mm

   Weight: Approx. 90kg

Standard accessories

   Large flat anvil: 1 pc.            Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.             Diamond pyramid penetrator: 1 pc.

   Vickers standardized block: 3 pcs.   Printer: 1 pc.

After-sales service commitment:

Warranty

The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).

Training

1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.

2. We can arrange engineer to train the operation of equipment to customer’s company when you need.

Maintenance services

Consultation services. We answer your question timely via the telephone or email.

Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
