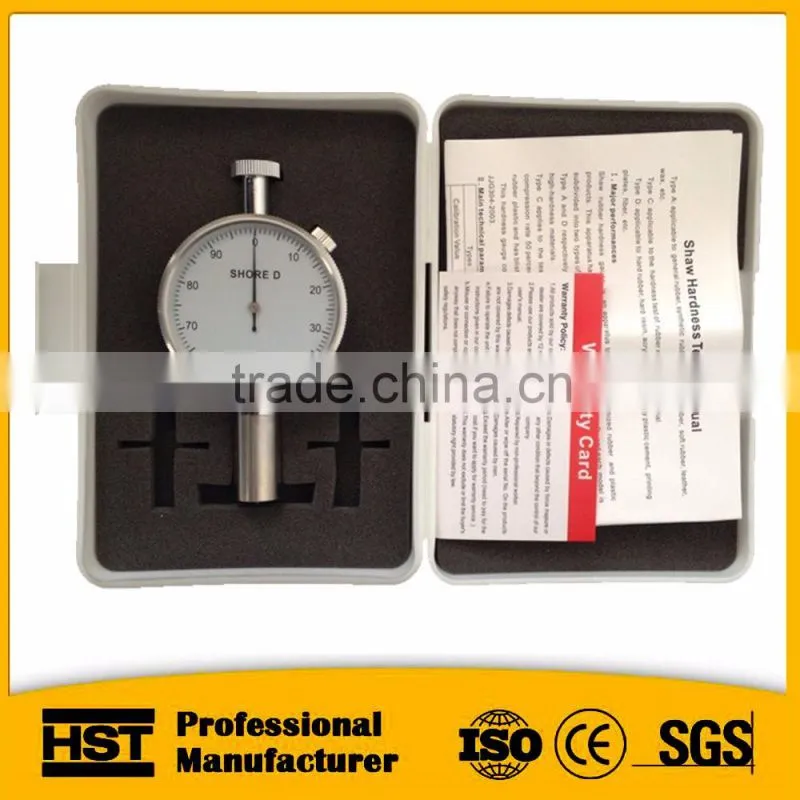

LX-A/LX-C/LX-D Series Indicator Needle Type Shore Hardness Tester
Contact :Sunny Whatsapp/Phone:+86-15589960023
1.Application:
Type A: Applicable to general rubber, synthetic rubber, vulcanized rubber, soft rubber, leather,
wax,etc.
Type C: Applicable to the hardness test of rubber microporous material.
Type D: Applicable to hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing
plates, fiber, etc.
2.Major Performances:
Shaw rubber hardness gauge is an apparatus to measure vulcanized rubber and plastic products.
This apparatus has three models of Type A, Type C and Type D and each model is subdivided into
two types of single pointer and double pointer.
Type A and D respectively are applicable to the testing of low and medium hardness, and high-hardness materials.
Type C applies to the testing of microporous material which is used to make shoes,with compression rate 50 percent, stress 0.049 MPa or above, and this kind of material is made of rubber plastic and has blister in plastic.
This hardness gauge conforms to the regulations of GB/T531-99, GB2411-80, hg/t2489-93, JJG304-2003.
3.Specifications:
Types |
LX-A |
LX-C |
LX-D |
|||||
Indicator Needle |
Single |
Double |
Single |
Double |
Single |
Double |
||

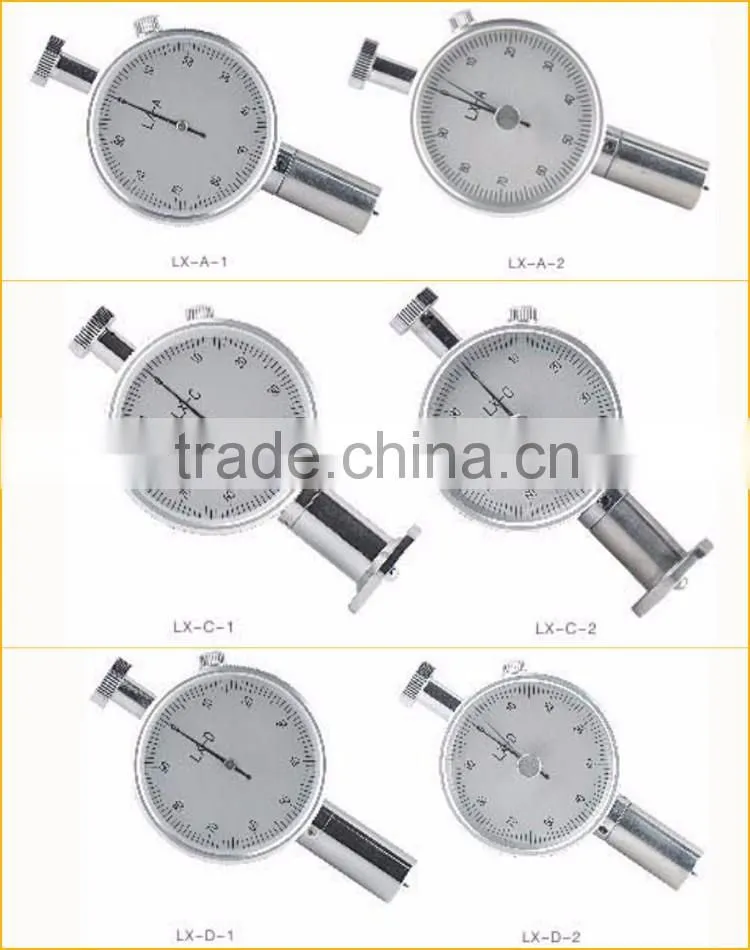

Model |
LX-A-1 |
LX-A-2 |
LX-C-1 |
LX-C-2 |
LX-D-1 |
LX-D-2 |
||
Test Range |
0-100HA |
0-100HC |
0-100HD |
|||||
Available Test Range |
10-90 HA |
10-90 HC |
10-90 HD |
|||||
Resolution |
1HA |
1HC |
1HD |
|||||
Pressure Head Size |
0.79mm |
SR2.5mm |
SR0.1mm |
|||||
End pressure of Pressure Head |
0.55N-8.06N |
0.55N-8.06N |
0-44.5N |
|||||
Stroke |
0-2.5mm |
|||||||

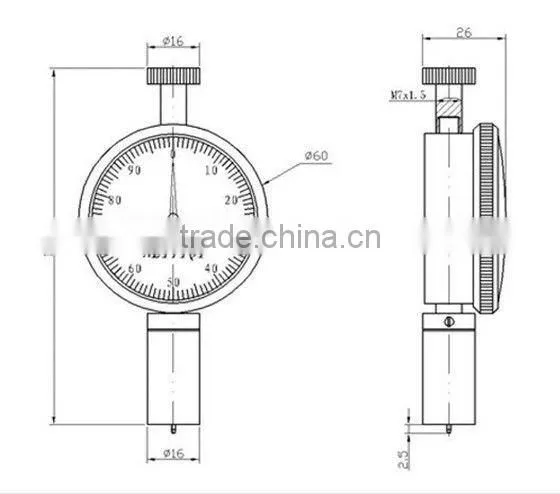

Dimension |
115*60*25mm |
|||||||
Apparatus Weight |
0.16 KG |
|||||||
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case. They not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Lifelong after-sales service & maintenance;
24 hours’ consult pre-sale on line or by Phone
Overseas training, installation is avaliable.
Jinan Hensgrand Instrument Co., Ltd. was established in 2001, is specialized in developing and manufacturing of testing equipments. The machiens are designed to test mechanical property of metal, non-metal and composite materials.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
