hand hold brinell fiber hardness test equipment
It's suitable to determine the Brinell hardness of unquenched steel,cast iron, non-ferrous metals and soft bearing alloys, etc.
Features:
1). Automatic testing process, no human operating error.
2). High travel, large size work table.
3). Large LCD screen displaying for parameters setup, easy operation.
4). Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10.
Brinell hardness tester Specifications:
Model |
HB-3000D |
Measuring Range |
8-650HBW |
Test Force |
612.9, 980.7, 1225.9, 1838.8, 2451.8, 7355.3, 9807, 14710.5, 29421N. (62.5, 100, 125, 187.5, 250, 750, 1000, 1500, 3000kgf) |
Diameter Of Tungsten Carbide Ball |
2.5mm, 5mm, 10mm |
Dwelling Time Of Test Force |
2-99s |
Max. Height Of Test Piece |
390mm |
Depth Of Throat |
200mm |
Power Supply |
220V AC or 110V AC, 50 or 60Hz |
Dimensions |
860x680x1250mm |
Height Of Base |
400mm |
Weight |
Approx. 400kg |

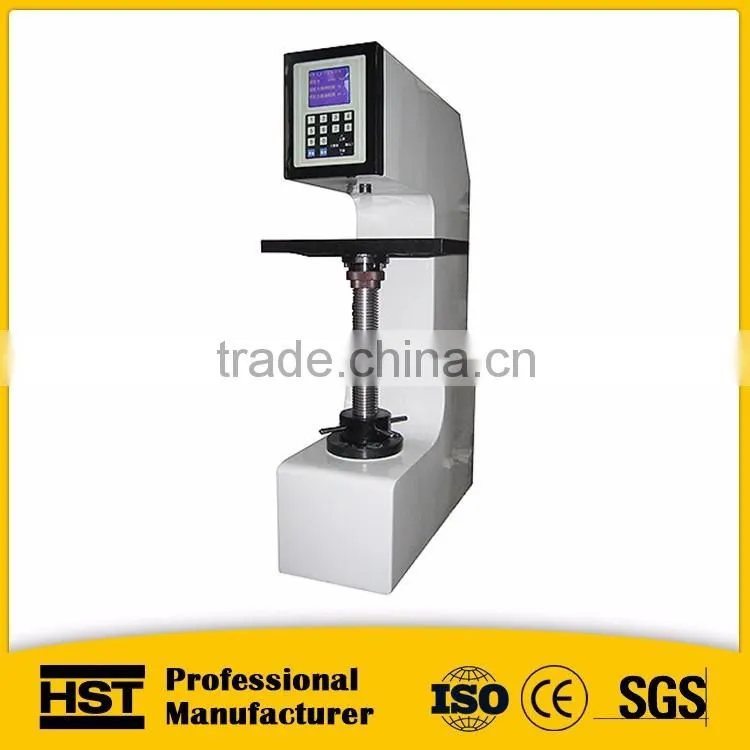

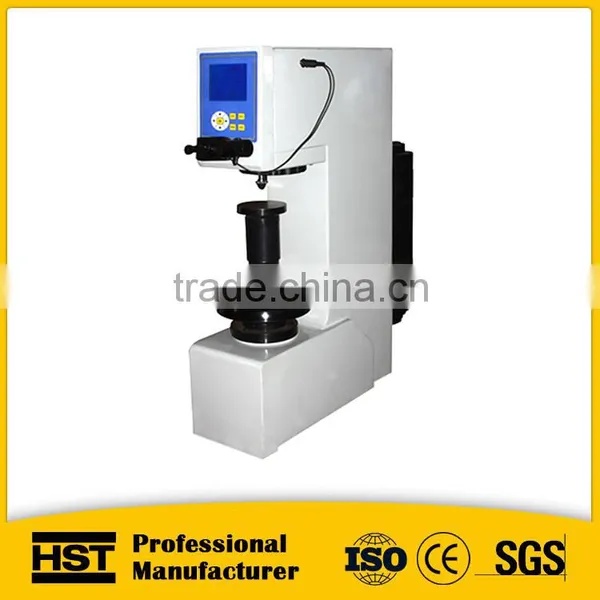

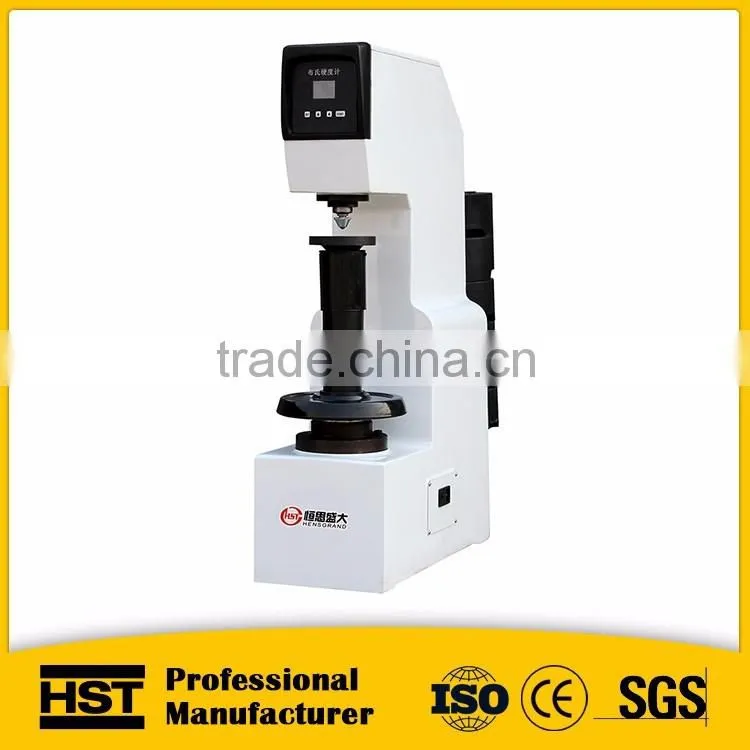

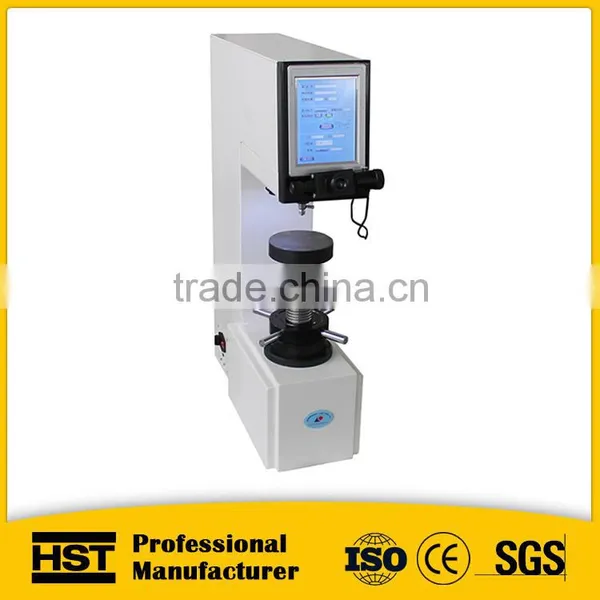

Brinell hardness tester photo:
