Product Description

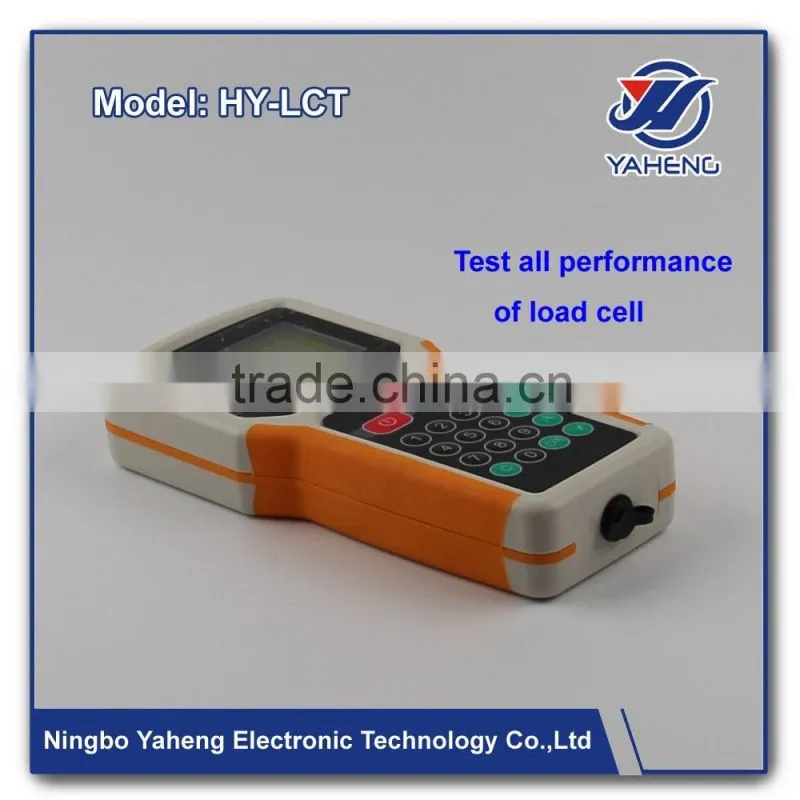

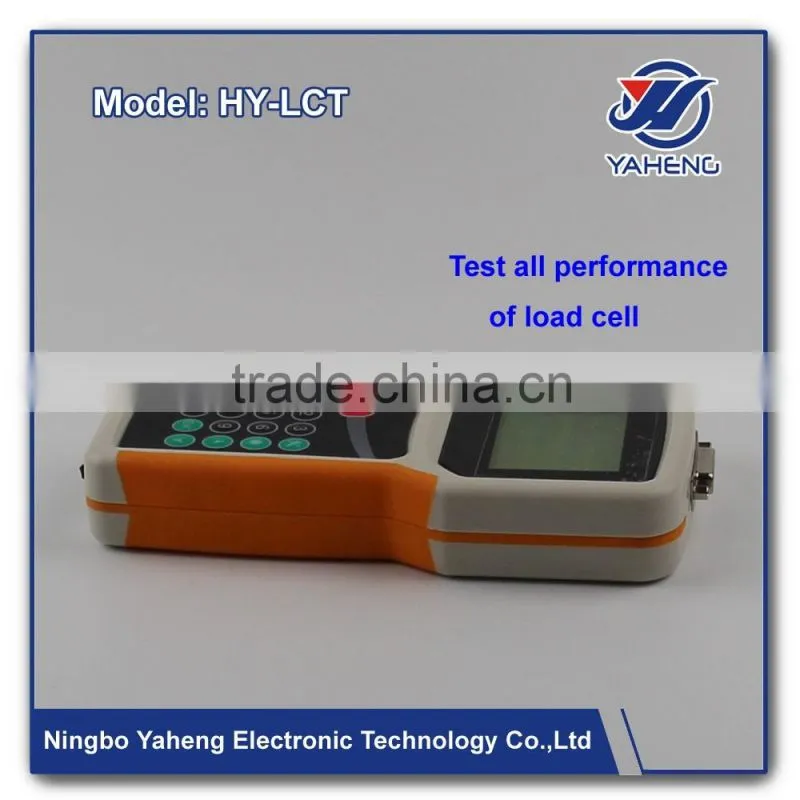

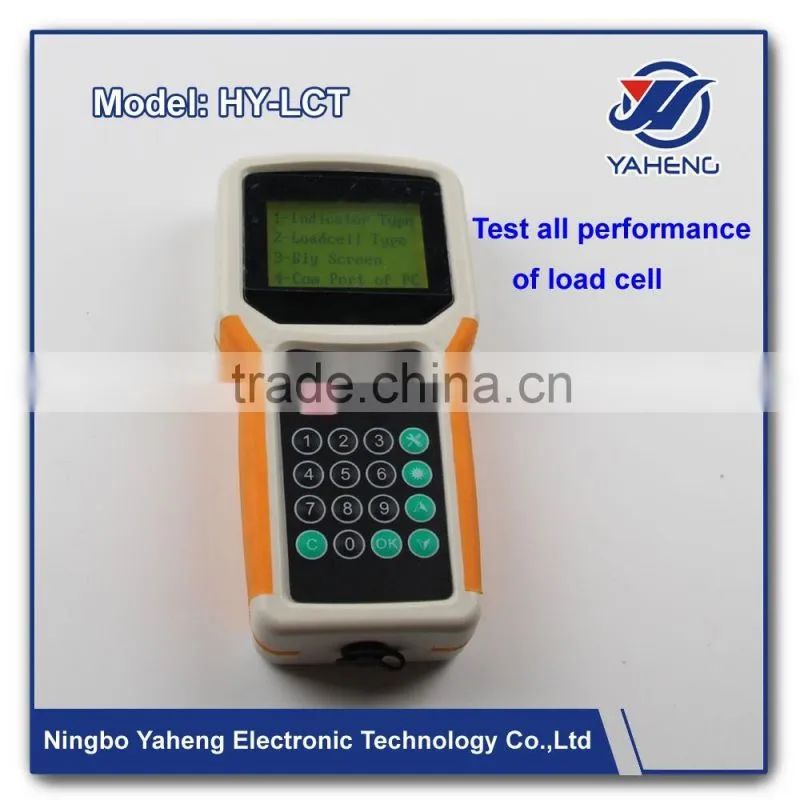

HY-LCT/LCTA Test instrument is a universal portable test device,mainly for various types of analog load cells,digital load cells,analog weighing indicators, big screen display and on-site troubleshooting for some interfaces.

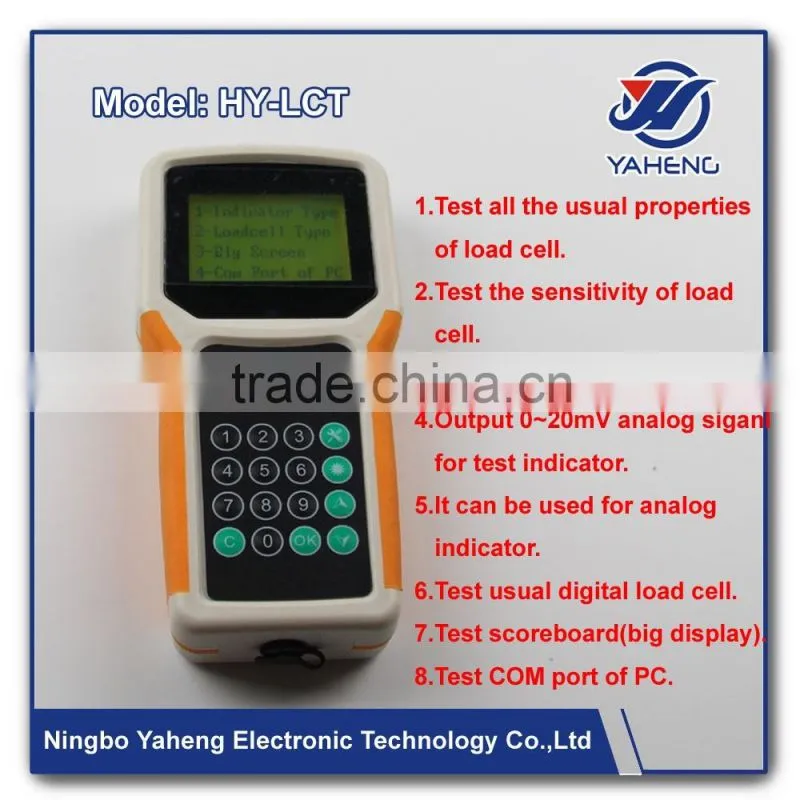

Main features:
  1.Test the capacity ,sensitivity and output signal of analog sensor  (in
microvolt).And conversion to display the current actual weight, used to
judge the performance of analog sensor;
   For example, zero output, stability,linearity and others parameters.More
accurate, more intuitive, eliminated the traditional by multimeter to
measure  the input and output resistance method;
  2.Check the digital sensors AD code,and conversion display the current
actual weight,used to judge the relative performance of digital sensors,
such as the over output,stability,linearity and others parameters;
  3.It can automatically read or set the digital sensor address,zero setting and
calibration operation for full capacity.(calibration function for VIP users);
  4.Decimal point can be set and display the division value and filtering parameters, used as a conventional analog instrumentation;
  5.It can output 0-20mv analog signal,1/4000 precision.For detecting or  calibration traditional analog indicators.
 6.Through RS232 to test the big screen display is normal or patible with a variety of the communication protocol of big screen display from different manufactures(Yaohua and Qiuhao) and continuous improvement.
  7.Test the computer serial port is damaged or not.
Instrument  Appearance
External Dimension:               210mm×100mm×35mm
Weight:                                    550g

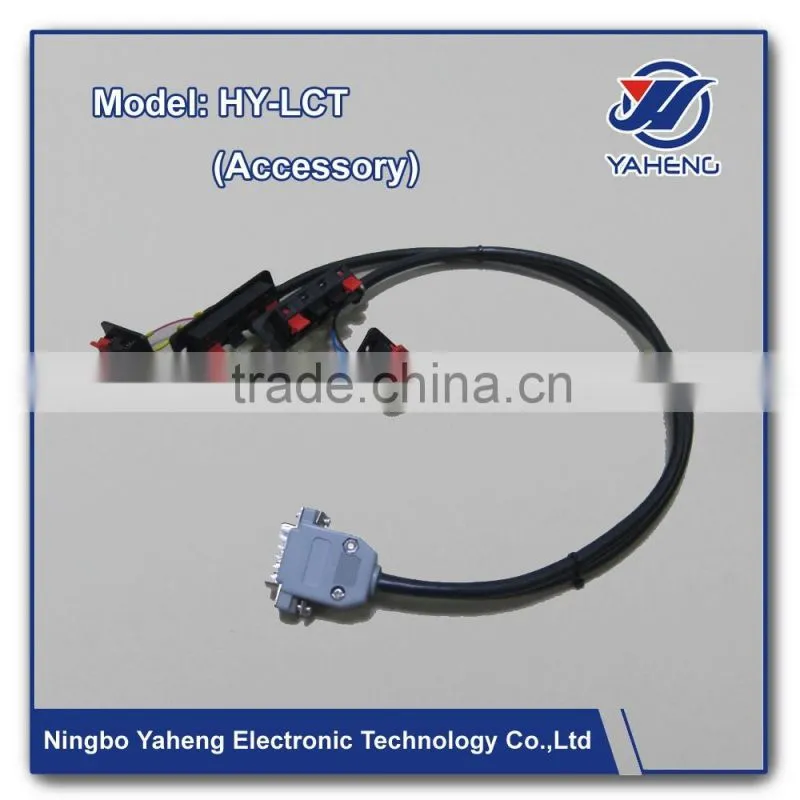

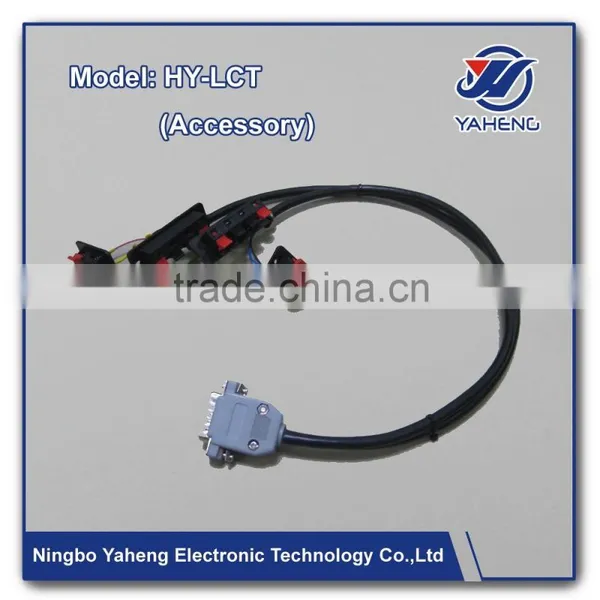

Interface:   (DB15 wire interface)



Signal
Instruction
1
VCC7.4V
Digital load cells Power+
2
R-
R-,connect 6 wire digital load cells’s T-
3
R+
R+,connect 6 wire digital load cells’s T+
4
T+ (485A)
T+,connect 6 wire digital load cells’s R+
Or 4 wire digital load cells’s 485A
5
T- (485B)
T-,connect 6 wire digital load cells’s R-
Or 4 wire digital load cells’s 485B
6
RXD
RS232 receive,connect to TXD port of PC
7
TXD
RS232 send,connect to PC or RXD port of big screen display.
8
GND
Digital load cell power-/GND
9
E-
E-,test for analog load cells/GND
10
S+
S+,test for analog load cells
11
S-
S-,test for analog load cells
12
E+
E+,test for analog load cells
13
Output V+
 0-20mV signal output+(HY-LCTA model)
14
Output V-
 0-20mV signal output-(HY-LCTA model)
15
GND
GND (HY-LCTA model)



   Detailed Images

 Load Cell Tester indicator Detecting instrument HYLCT sensor tester large screen testing toolLoad Cell Tester indicator Detecting instrument HYLCT sensor tester large screen testing toolLoad Cell Tester indicator Detecting instrument HYLCT sensor tester large screen testing toolLoad Cell Tester indicator Detecting instrument HYLCT sensor tester large screen testing toolLoad Cell Tester indicator Detecting instrument HYLCT sensor tester large screen testing tool



Packaging & Shipping

1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.

2.Delivery time according to the order quantity.

  Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather .
