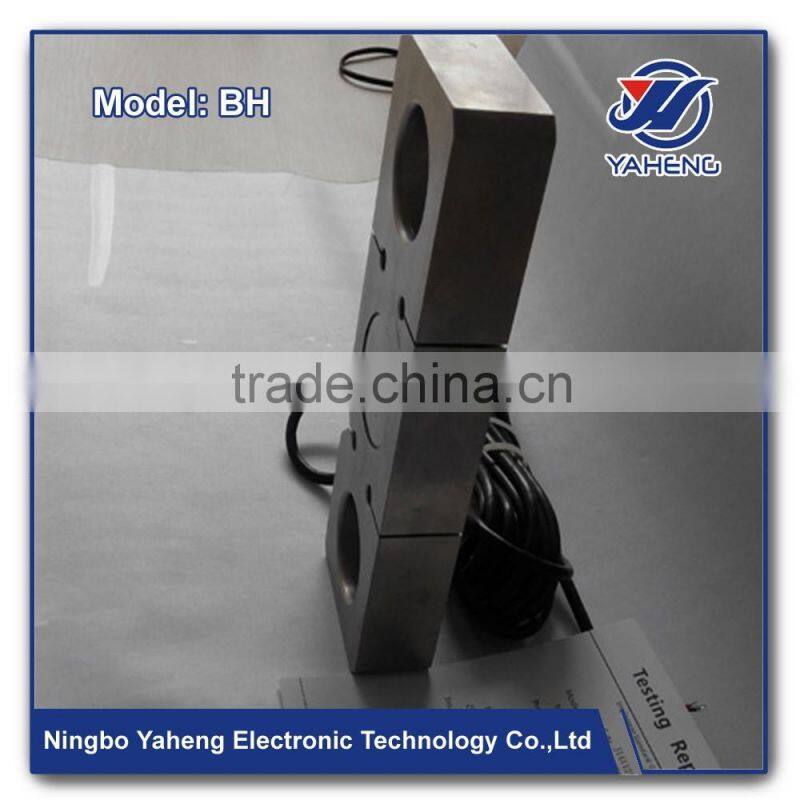

Wireless Tension Load Cell for Crane Scale BH AD Using the 24bit Precision Low Noise Chip About 100 Million Internal Evidence photo-1

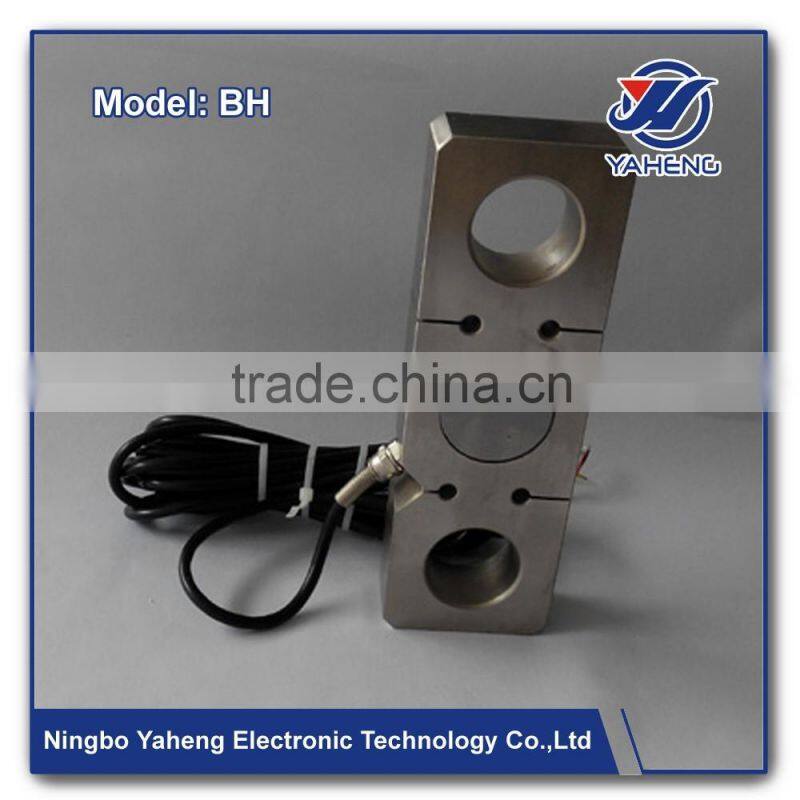

Wireless Tension Load Cell for Crane Scale BH AD Using the 24bit Precision Low Noise Chip About 100 Million Internal Evidence photo-2

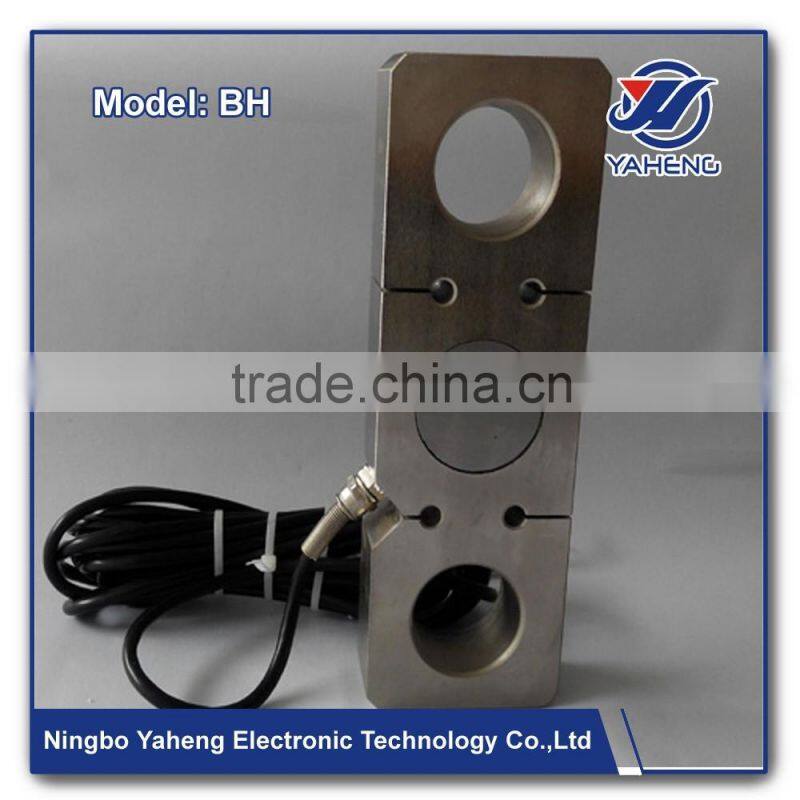

Wireless Tension Load Cell for Crane Scale BH AD Using the 24bit Precision Low Noise Chip About 100 Million Internal Evidence photo-3

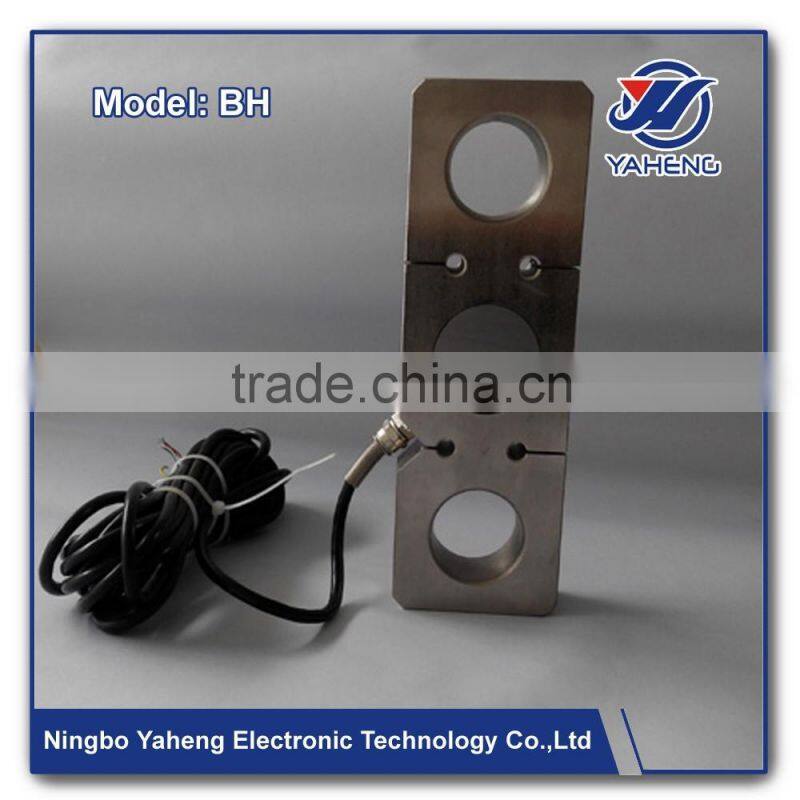

Wireless Tension Load Cell for Crane Scale BH AD Using the 24bit Precision Low Noise Chip About 100 Million Internal Evidence photo-4

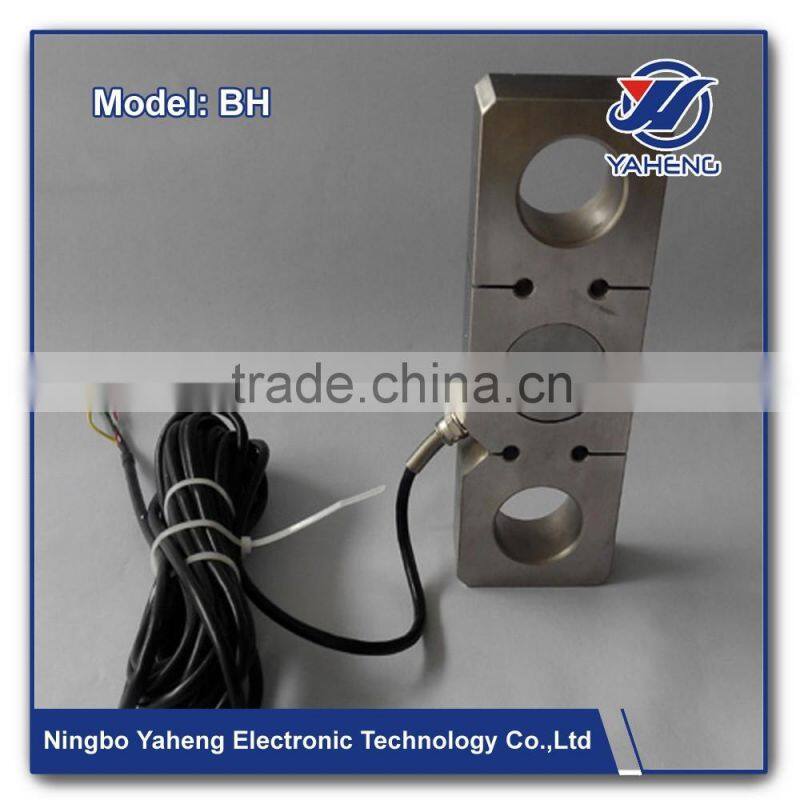

Wireless Tension Load Cell for Crane Scale BH AD Using the 24bit Precision Low Noise Chip About 100 Million Internal Evidence photo-5

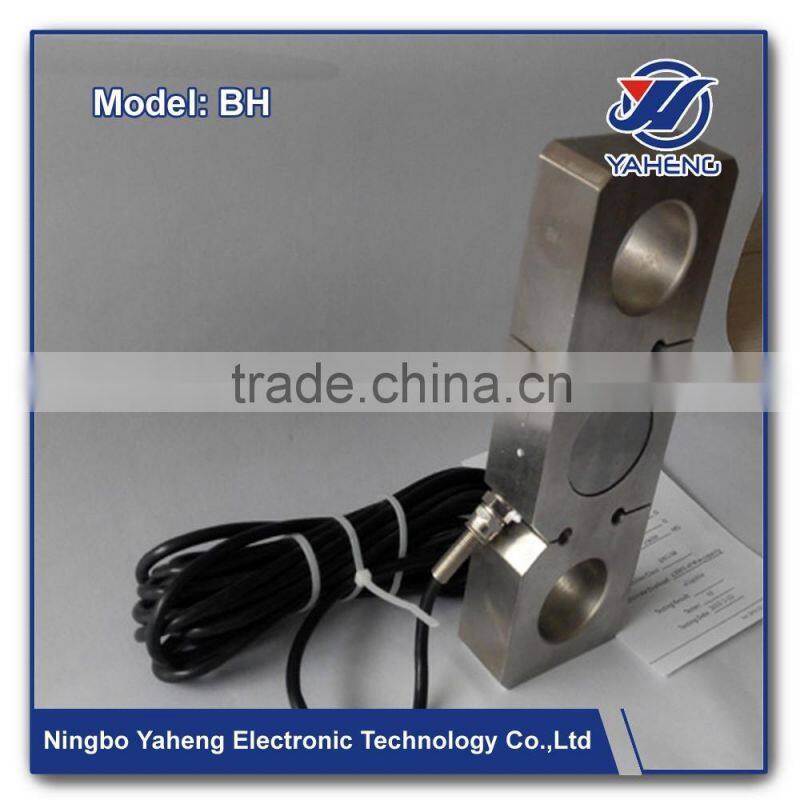

Wireless Tension Load Cell for Crane Scale BH AD Using the 24bit Precision Low Noise Chip About 100 Million Internal Evidence photo-6
US$ 220 - 1,600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YAHENG
Model Number:
BH wireless tension load cell for crane scale
Contact Supplier Request Quote Chat Now
Ningbo Yaheng Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai or other main parts in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YAHENG
Model Number BH wireless tension load cell for crane scale
Type Crane Scale
Power Supply 220V/50HZ
Display Type Digital
Rated Load 5~200kg
Accuracy Grade 3 , n=3000



Product Description



AD using the 24bit precision low-noise chip , about 100 million internal evidence weighing accuracy .
ultra-low power design , power circuit board smaller .
Large-capacity battery configuration , longer life.
Unique intelligent charging protection function , prevention of over- flow , overcharge phenomenon . The battery life of a stronger , more durable .
Good dynamic weighing performance , not because of swaying weighing .
equipped with wireless meter for easy operation.
Wireless two-way control , the conventional communication distance of 300 meters above the control scale body switching machine .
accumulated , accumulated automatically , peeled, peeled distance, to maintain the value , the display for dividing the value of any weight correction .
 Overload, underload remind display, low voltage alarm, alarm when the battery capacity is less than 10% . Technical indicators.
built - in wireless communication module , the frequency rate of work set out in the open between 430MHz to 470MHz ISM band , license-free use .
The current weighing data transmission to less than 1km wireless desktop instrument / hand-held instrument or PC display or management.
Optional wireless big screen.


Dimensions (In mm. 1mm = 0.03937 inch es)

wireless tension load cell for crane scale BH AD using the 24bit precision low noise chip about 100 million internal evidencewireless tension load cell for crane scale BH AD using the 24bit precision low noise chip about 100 million internal evidence

Note: D o not open the s ender grou p, no any s hare parts th ere!

CAP./SIZE
A
A1
B
W
ΦS
ΦH
S hackle
Hook
1~5t
230
160
76
34
28
21
7/8
5/ 8
10 t
280
188
90
47
40
28
11/4
3 /4
20~3 0t
370
230
125
55
53
5 3
13/4
- ---
40~5 0t
430
260
150
65
73
73
21/2
- ---
60
430
260
150
85
73
73
21/2
- ---
10 0~12 0t
570
340
210
108
102
102
31/2
- ---



Rated Load:
1/2/3 /5/7.5/10/25/35/50/100t
Wireless Frequency:
470MHz
Wireless Distance:
Min : 200m ( default )
A/D Conversion Rate:
≥50 times/seconds
Battery Life:
≥50 hours
Sensitivity:
(2.0±0.1%) m V/V
Combined Error:
±0.02% F.S
Creep Error ( 30min ) :
±0.02% F.S
Zero Balance:
±1% F.S
Temp. Effect On Zero:
±0.02% F.S/ 10℃
Temp. Effect On Span:
±0.02% F.S/ 10℃
Input Resistance:
750±5 Ω
Output Resistance:
702±2 Ω
Insulation Resistance:
≥ 5000M Ω
Operating Temp. Range
-30~+ 70℃
Maximum Safe Over Load:
120%F.S
Ultimate Over Load:
200%F.S
Recommend Excitation:
10~12V DC
Maximum Excitation:
15V DC
Sealing Class:
IP67/IP68
Element Material:
Alloy Steel, Stainless Steel
Citation:
GB/T7551-2008/ OIML R60
Mode Of Connection:
Red(Input+),Black(Input-),Green(Output+),White(Output-)

 wireless tension load cell for crane scale BH AD using the 24bit precision low noise chip about 100 million internal evidencewireless tension load cell for crane scale BH AD using the 24bit precision low noise chip about 100 million internal evidencewireless tension load cell for crane scale BH AD using the 24bit precision low noise chip about 100 million internal evidencewireless tension load cell for crane scale BH AD using the 24bit precision low noise chip about 100 million internal evidencewireless tension load cell for crane scale BH AD using the 24bit precision low noise chip about 100 million internal evidencewireless tension load cell for crane scale BH AD using the 24bit precision low noise chip about 100 million internal evidence

Packaging & Shipping

1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.

2.Delivery time according to the order quantity.
