Product feature
l HY-SC Intensive Granulator is used to crush different types of both soft and hard materials into granulate for recycling, thus enhancing the using rate of plastic materials.
l All structure is made by steel. Substantial and durable, it won’t affect by uncrushed residual plastic keep efficiency.
l Can bear a heavy load, prevent oil leakages and noise, no vibration during processing and make sure products not polluted by oil.
l Equipped with motor overload protection and safety protection for cleaning blade.
l Special claw blade structure with scissors function. High quality blade can chip all soft/hard material easily.
l The length of blade can be adjusted. The life span of blade is long and the blade can be sharpened up and reused.
l Separate designed hopper and granulating chamber can be dismantled easily, while large equipped with shock-absorber for maintaining stability during work.
l The blade materials are imported from Japan, with long life.
Main specification:

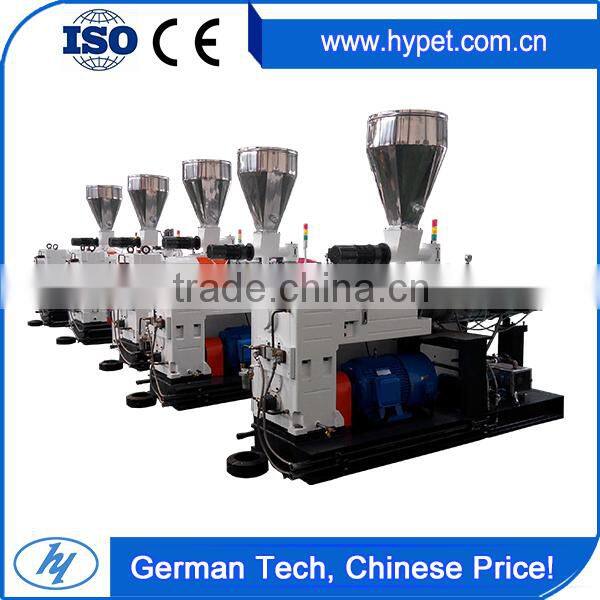

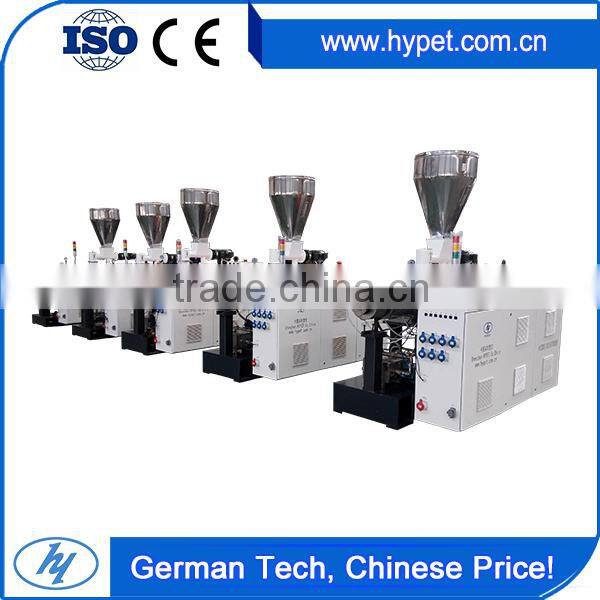

| HYZS 65/132 Conic twin screw extruder | |
| Height in the center | 1100mm |
| Output | 320Kg/h |
| Weight | 3800kg |
| Screw | |
| Diameter | 65mm |
| Material | 38CrMoAlA |
| Finish | Nitrogen-filled (0.50~0.70mm depth) and polish |
| Rotate Speed | 0~39r/min |
| Core of the Screw | Temperature auto control |
| Barrel | |
| Material | 38CrMoAlA |
| Inside Finish | Nitrogen-filled (0.50~0.70mm depth) and polish |
| Heating Control Area | 4 area |
| Heater Material | Stainless steel ( cast heater are option) |
| Heating Power | 24 Kw |
| Cooling System | Fan Cooling with low-noise |
| Cooling Power | 0.3kw×3 |
| Gear Case | |
| Case Material | QT450 |
| Gear Material | 20CrMnTi |
| Gear Surface | Hardened and ground in high precision |
| Axis Material | 40Cr |
| Feeding motor | |
| Motor | 1.5 Kw |
| Speed range | 1 – 50 rpm |
| Vacuum Deflating Humidity | |
| High-point Vacuum Degree | -0.004 Mpa |
| Motor | 1.5 Kw |
| Driving Motor | |
| AC Motor | 37 Kw |
| AC inverter controller | ABB Swiss |
| Electrical Control Cabinet | |
| Control panel | Digital Display, Adjusting Knobs |
| Temperature Control | RKC |
| Other electric components | SIMMENS, Schneider, Omron etc… |
1. Owns more than 30 years in extrusion field
2. Introduction from German tech and experience for the design and making twin screw extruders. And leaded by Germany experts Mr. Youcef and Mr. Elben for the long time
3. Designed and produced twin conical screw extruder, twin parallel screw extruder, and transfer the technology to the biggest gears factory in India
4. Own a high professional design team
5. A base combined with designing, making, studying ....etc. in extrusion industrial.
6. Our aim is to learn advanced technology, make the best suitable machine, best efficient machine and lines.
Our products and services range:

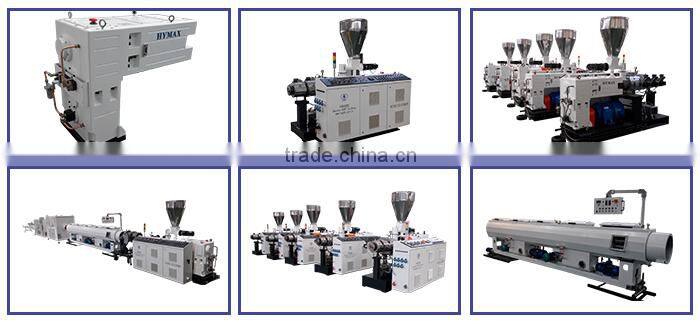

1. extruders in single or twin screw, parallel or conic
2. kinds of pipe production line, like rigid PVC, soft PVC, conduit, cable,PE water supplier pipes, PPR pipes....etc.
3. kinds of profile producton line, such as PVC windows production lines, PVC profile lines, PVC ceiling lines, PVC roof lines, WPC profile lines..etc
4. kinds of sheet, board production lines, such PVC foaming board/sheet production lines, PVC door production lines, WPC door production lines, WPC foaming board lines....etc.
5. kinds of granulating, pelletizing lines
6. all the auxiliary machine of above lines and spare parts, such as screw barrel, mixer, miller, crusher, cooling tower, cooler, shredder, inverter, molds...etc
7. all the techical data and tecknology of above machines
8. Wood and Plastic Composite decorational profiles and door, such as WPC ceiling, wallboard, floor board, deck board, blind, doors ....etc.
How is HYPET doing in the market?
l More than 30 years experience in the extrusion filed
l Extrusion machinery factory located in wuhan , central of china
l We focus on tailor made plan with exclusivity to each customer
l We have vast resources which can be integrated as whole package service
l We have accumulated vast sale network all over the world
What does HYPET offer to you ?
l Tailor designing for your factory lay out
l Tailor designing for water, electric ,and gas chart
l Tailor made processing technology
l Tailor made production line
l Package pre & after services
l On site installation and training
l Free marketing consultation
Why you should corporate with HYPET ?
l More than 30 years experience in extrusion, with years of international technical exchange experience;
l A team of highly professional technical expert ensures you get the state of art technology;
l Eruo technology ,designing, and processing application for twin screw extruder;
l Optimized design for different material, based on vast successful practical experience;
l HYPET set up separate laboratory with top equipment
l Extrusion performance and capacity proven by trial commissioning for each order
l Capable of providing on site technical training
l Unique design ,same line, suitable for various products
l Also provide various down stream and auxiliary machinery .
What are the HYPET services?
Each order tested before shipping and before payment;
Each order will meet the customer’s satisfaction before payment;
Deposit of Some machinery, if result not satisfied, can be refund;
A team of experience technical engineer can be sent for installation and training;
A standard of spare part will be also provide in each order.
