Specifications
1.Erichsen Cupping Testing Machine2.For sheet metal & strip steel rolled stock
3.ASTM E 643-78 & GB4156-84

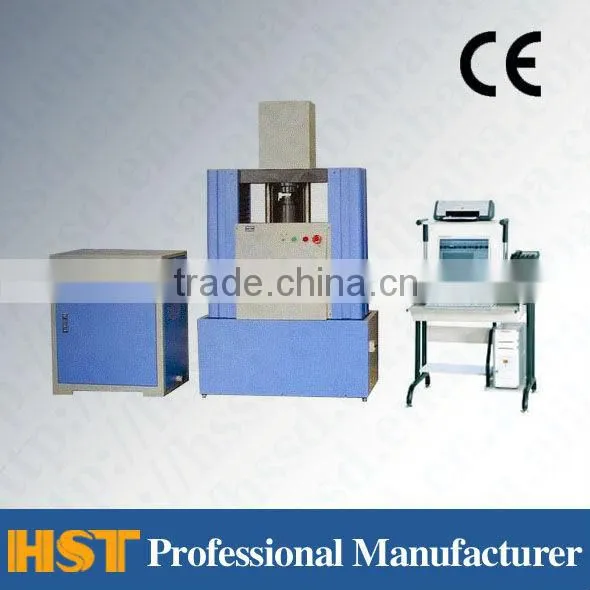

High QualityCup Tester /GBS-60 Cupping Testing Machine /Computer Control Erichsen Cupping Testing
GBW-60 Computer controlled automatic Erichsen cupping tester is mainly used to check the ductility of metal sheet and strip. Use PC to operate, with preestablished procedure and data, automatic execute clamping, punching, measuring, caculation, stop etc..
1.Application & Features:
The cupping testing machine is used to test extend and stretch capacity of
metal thin plate and band. It is the only instrument to test the metal’s plastic
deformation. Also it can be used to test non-ferrous metals anisotropic
character if adding impact cup mould.
The machine adopts high precision raster measure instrument to test Erichsen
value so it has a high testing precision. It adopts the electric control machinery
onload and LCD spoke sensor so it raised the testing precision of the main test
force and accuracy of controlling sample breaking.
2.Standards:
ISO20482: 2003 Metallic materials-Sheet and strip-Erichsen Cupping Test,
GB/T4156-2007 Metallic materials-Sheet and strip-Erichsen Cupping Test.
3.Feature:
1.Use a servo motor to load instead of hydraulic piston and cylinder.
2.Change oil pressure cylinder to load cell, more precision and reliable.
3.Auto stop when crack appears, convenient to observe the crack.
4.With peak value memory function,like max. punch load,max. deformation deep etc.
5.Turnover grips,punch and sample is easy to change.
4.Specification:
GBS-60 Digital Display Cupping Testing Machine Cup Tester
Model |
GBW-60 |
Display mode |
PC control and display |
Measuring range |
0.2kN ~ 60kN |
Testing accuracy |
± 1% |
Specimen thickness |
0.05-2mm |
Specimen width |
100mm |
Punch max. stroke |
40mm |
Clamping piston stroke |
40mm |
Max. punching load |
60Kn |
Max. clamping load |
25Kn |
Standard punch diameter |
Φ20±0.05mm |
Standard cushion mold hole diameter |
Φ33±0.1mm |
Standard press mold hole diameter |
Φ27±0.05mm |
Display resolution |
0.01mm |
Speed |
2-100mm/min (any constant rate and speed control) |
Weight |
500Kg |
Our company has a well experienced, strong and large-scale R & D team and is based on high-quality technical personnel. By means of advanced science and technology, strong production capacity and financial support, we cooperate with many domestic and foreign well-known educational institutions and research institutions closely to make our company be in domestic leading position in research and development of new products.
Erichsen Cupping Testing Machine Cupping Testing Machine Price/Computer Control Erichsen Cupping Testing Machine /High Quality Cupping Testing Machine
CE Certificat
Contact me : Sunny
Skype:sunny.luo70
We sincerely welcome friends at home and abroad to cooperate with us.
We would like to offer you our best products and service.
