Help CenterDigital Metal Cupping Tesing Machine/ Erichsen Cupping Testing Machine
Related Products
-
Computer Control Cupping Tester/ Sheet Metal Cupping Testing MachineUS$ 1,999 - 3,999MOQ: 1 Set -
GBS-1 Digital Display Manual Control Cupping Testing MachineUS$ 1,000 - 4,000MOQ: 1 Set
-
Digital Display Manual Cupping Testing MachineUS$ 1,000 - 4,000MOQ: 1 Set
-
GBW-60 Metal Erichsen Cupping Testing MachineNegotiableMOQ: 1 Set
-
ASTM E 643-78 GBW-60 PC Controlled Erichsen Cupping Tester/ Erichsen Cupping Testing MachineUS$ 6,500 - 9,000MOQ: 1 Set
Specifications
1. Metal Cupping Testing Machine2. CE factory
3. Digital Display

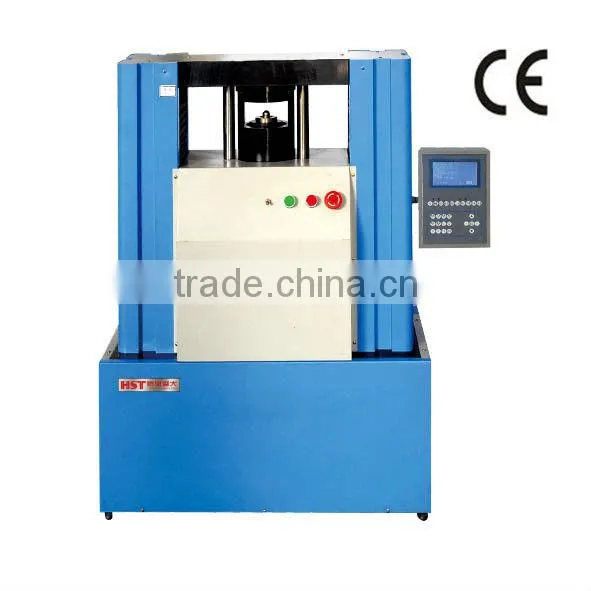

Metal Cupping Testing Machine
Application & Features:
The cupping testing machine is used to test extend and stretch capacity of metal thin plate and band. It is the only instrument to test the metal’s plastic deformation. Also it can be used to test non-ferrous metals anisotropic character if adding impact cup mould. The machine adopts high precision raster measure instrument to test Erichsen value so it has a high testing precision. It adopts the electric control machinery onload and LCD spoke sensor so it raised the testing precision of the main test force and accuracy of controlling sample breaking.
Standards:
ISO20482: 2003 Metallic materials-Sheet and strip-Erichsen Cupping Test, GB/T4156-2007 Metallic materials-Sheet and strip-Erichsen Cupping Test.
Feature
1.Use a servo motor to load instead of hydraulic piston and cylinder;
2. Change oil pressure cylinder to load cell, more precision and reliable;
3.Auto stop when crack appears, convenient to observe the crack;
4.With peak value memory function, like max. punch load, max. deformation deep etc;
5,Turnover grips, punch and sample is easy to change;
Specification:
Model |
GBS-60 |
Display mode |
LCD display |
Specimen thickness |
0.1-2mm |
Specimen width |
100mm |
Punch max. stroke |
40mm |
Clamping piston stroke |
40mm |
Max. punching load |
60Kn |
Max. clamping load |
25Kn |
Standard punch diameter |
Φ20±0.05mm |
Standard cushion mold hole diameter |
Φ33±0.1mm |
Standard press mold hole diameter |
Φ27±0.05mm |
Display resolution |
0.01mm |
Speed |
2-100mm/min |
Weight |
500Kg |
