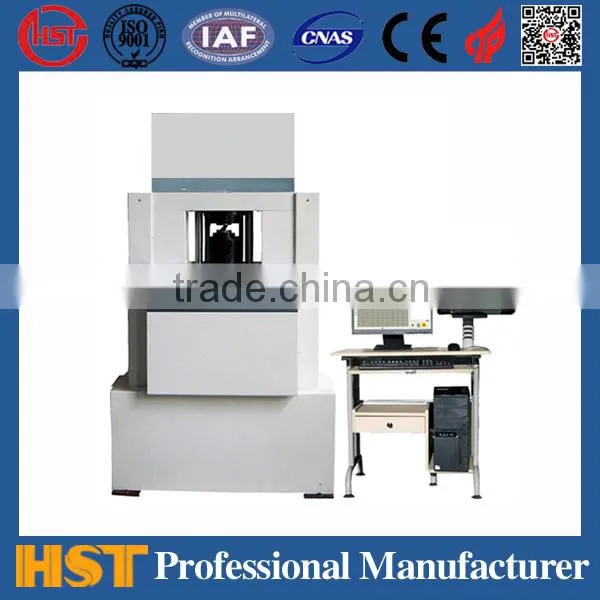

GBW-60B Computer Control Metal Erichsen Cupping Testing Machine
Erichsen Cupping Testing Machine
Application
The Cupping testing Machine ( Erichsen Tester ) is precise technology testing machine which is used for sheet metal & strip steel rolled stock etc. It can complete test of plastic deformation for sheet metal & strip steel rolled stock .
Standard
It conforms to ASTM E 643-78 & GB4156-84 named Testing Machine for Metal Cupping test
Feature
1, Computer control operation, according to the preset program and data, automatic clamping, stamping, measurement, calculation, parking
2, Auto stop when crack appears, convenient to observe the crack;
3, With computer controlled the test, user can easy get test report, and save, recall, print test result;
4, Turnover grips, punch and sample is easy to change;
5, With peak value memory function, like max. punch load, max. deformation deep etc;
6., Adopting a composite oil cylinder can meet hydraulic clamp and press piston and cylinder;
Specification
Model |
GBW-60B |
Specimen thickness |
Standard 0.1-2mm,( Non-Standard 0.1-3mm) |
Max. Specimen Width |
100mm |
Max. Punch stroke |
60mm |
Clamping piston stroke |
19-21mm |
Max. Cupping Force |
60kN |
Max. Clamping Force |
25kN |
|
Test mold specifications (Standard) |
Punch diameter:Φ20±0.05mm,cushion mold hole diameter : Φ33±0.1mm Fixed mold hole diameter: Φ27±0.05mm Standard press mold hole diameter : Φ27±0.05mm; ( Non-Standard ) |
|
Test mold specifications (Non-Standard) |
Punch diameter : Φ15±0.05mm , Φ8±0.02mm, Φ3±0.02mm Press mold hole diameter : Φ18±0.1mm, Φ10±0.1mm , Φ3.5±0.1mm Fixed mold hole diameter : Φ21±0.02mm ,Φ11±0.02mm , Φ5±0.02mm |
Display resolution |
0.01mm |
Display value |
Clamping force, stamping force, displacement and cup drawing value, speed rate, drawing force - displacement curve |
Control method |
Computer automatic test process |
Structure features |
Composite cylinder, double oil pump supply oil, grating measurement |
Configuration
1. 60KN Cupping test machine host --- 1 Set;
2. Cupping test control systems --- 1 Set ;
3. The electrical control system --- 1 Set ;
4. Standard punch pin punch mold --- 1 Set ;
5. 10Mpa sensor --- 1 Pc
6. 20 Mpa sensor --- 1 Pc
7. Lenovo computer HP printer --- 1 Set
8. Testing machine dedicated control software under the Windows operating environment --- 1 Set
Erichsen Cupping Testing Machine
1. What about your delivery time?
A: We have skilled workers and professional work division for assembly and checkout. Usually, our delivery time is 7~14days.
2. What about the transportation?
A: We have stable forwarding agent for Air transportation and Sea transportation. And also express delivery of TNT, DHL.
3. What about your packaging?
A: Digital material universal testing machine packed with export standard wooden box.
Erichsen Cupping Testing Machine
After-sales service commitment
Warranty
The testing machine is guaranteed for a year by Jinan Kason Testing Co., LTD and has whole-life service
(including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely
welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and
support, there will be enjoyable and long-term friendly cooperation.
