16 - 63mm HDPE Double Station Plastic Pipe Bobbin Winder With High Quality
US$ 5,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe Winding
Place of Origin:
Hubei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HYKK-160 PVC Pipe for 40-160mm Pipe Size Belling MachineUS$ 50 - 15,000MOQ: 1 Set -
High Quality HYKK-400 160-400mm Pipe Size PVC Pipe Belling MachineUS$ 50 - 16,000MOQ: 1 Set
-
CNC PVC Pipe Slotting MachineUS$ 22,000 - 25,500MOQ: 1 Set
-
80 - 250mm CNC PVC Pipe Slotting MachineNegotiableMOQ: 1 Set
-
Best Price SRL-Z300/600W PVC High Speed Plastic Pvc Horizontal MixerUS$ 15,060 - 18,000MOQ: 1 Set
Condition
New
Application
Pipe Winding
Place of Origin
Hubei, China
Brand Name
HYPET
Model Number
HY-63
Inside Diameter Range
600 mm
Outside Diameter Range
1600 mm
Spool Capacity
100 Meters
Arrange Width
300-500 mm
Voltage
380V/ 3 Phases/ 50HZ
Power(W)
20 Kw
Dimension(L*W*H)
2500*2300*2000 mm
Weight
2000 Kgs
Certification
ISO9001, CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

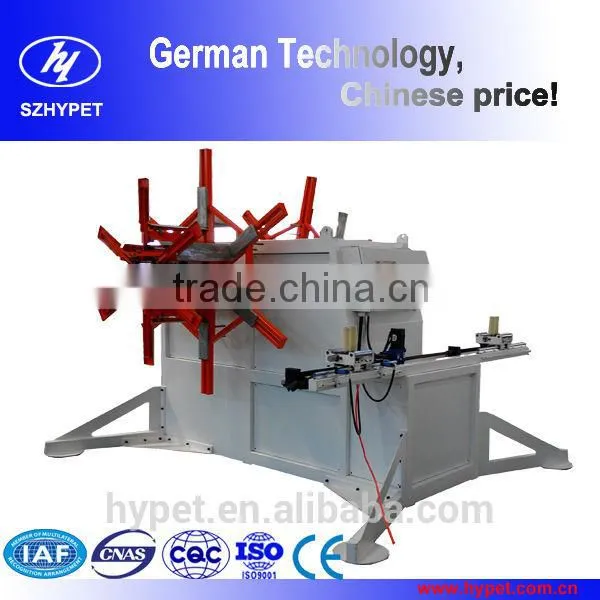

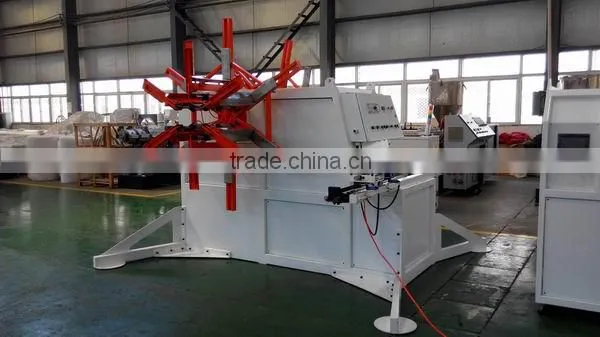

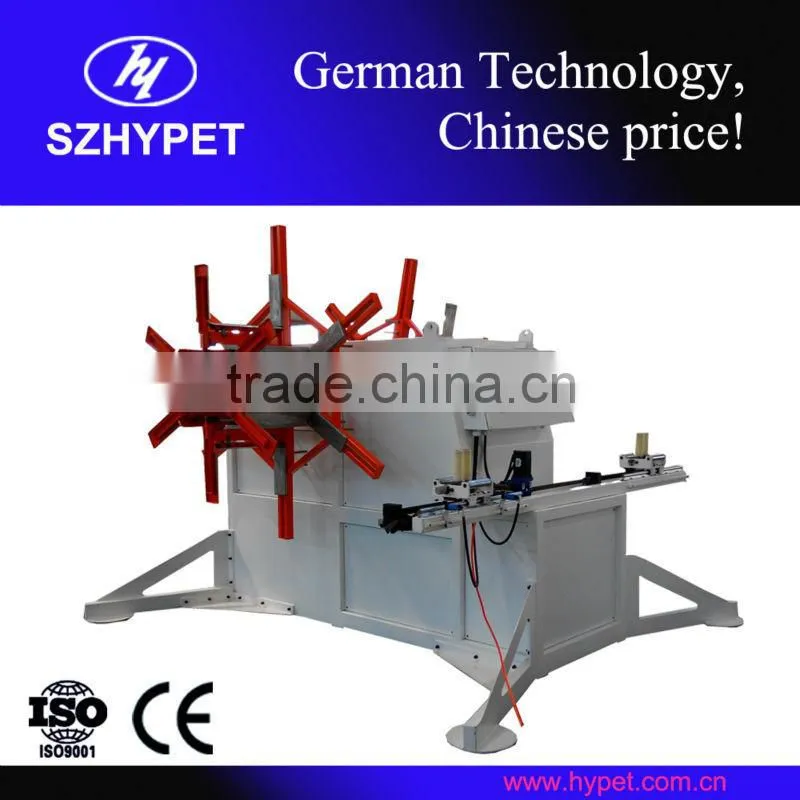

HY-63 Double Station HDPE Pipe Winding Machine (Coiler)
Function:
HY-63 double station coiler was used for winding plastic cable and small-middle sizes plastic hose. Working together with extruder, vacuum calibrating tank and haul off machine, it makes the plastic hose and cable winding to reel which driving by the haul off device. Adopting two winding plate which working alternately to make sure producing continuously. Equipped with traverse, the cable could be winding automatically, well-distributed and regularly. The machine is in compact structure, highly automatic, nice-shaping and easy operating.
Main Specification:
| No. | Name | Marks |
| 1 | Model | HY63 Coiler in Double Station |
| 2 | Pipe range | 16 – 63mm |
| 3 | Coiler inner diameter | 600 - 1600mm |
| 4 | Coiler width | 300 – 500 mm |
| 5 | Torque Motor | 10 + 25N.M |
| 6 | Winding method | Serving traverse |
| 7 | Discharge method | Automatic discharge |
| 8 | Air pressure | 0.6 – 0.8Mpa |
110mm Winding Machine for Option
