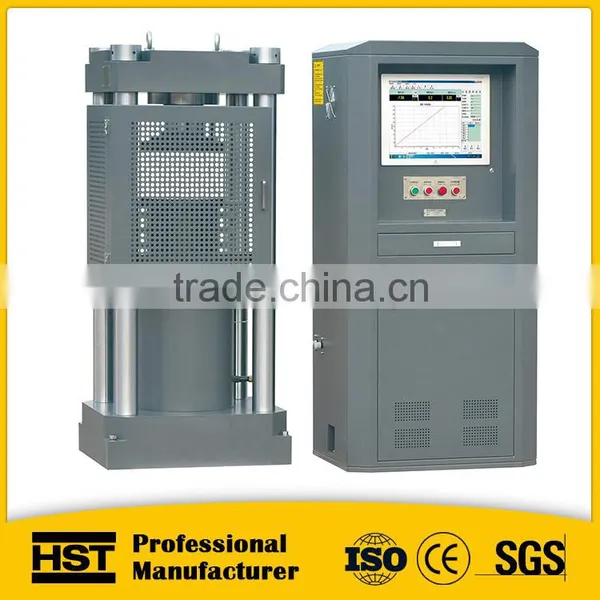

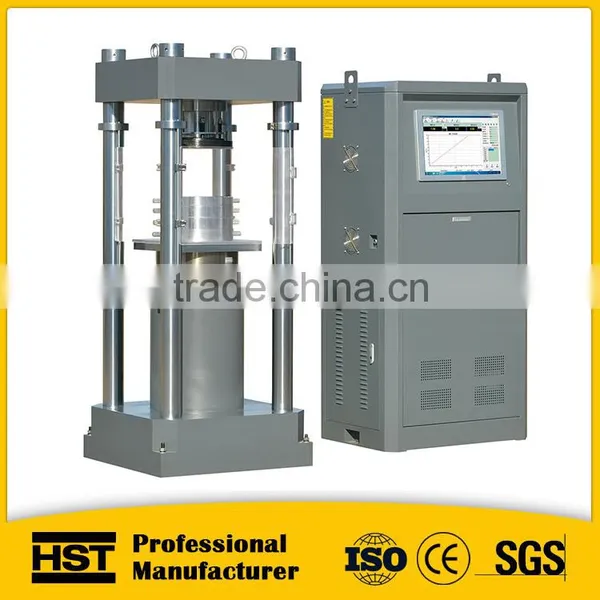

YAW-2000D 200ton Computerized electro-hydraulic high quality compression test tool price
1. Application
YAW_D concrete compressio tester mainly used for concrete rupture strength testing,
cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
2.1 Computer control up, down, test, stop and loading progress
2.2 Electric screw ball adjust test space
2.3 Unibody desktop oil source control cabinet
2.4 This machine consist of the host machine, oil source and control system.
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
3. Technical parameters
Model |
YAW-2000D |
YAW-3000D |
|
Max. Load |
2000kN |
3000kN |
|
Control method |
Computer auto control loading process |
||
Test space adjustment mode |
Electric ball screw adjust |
||
Oil source control cabinet structure |
One-piece oil source control cabinet |
||
Test class |
1 class |
||
Testing range |
4%-100%FS |
||
Load display accuracy |
Better than ±1% |
||
Piston stroke |
50mm |
80mm |
|
Distance between upper and lower plate |
320mm |
340mm |
|
Max space between two columns |
270mm |
280mm |
|
Size of upper and lower platen |
250×250mm |
260×260mm |
|
Power supply |
2.1Kw/AC380V |
2.3Kw/AC380V |
|
Contact : Sunny +86-15589960023 sunny at
YES-1000 Digital Display Compression Testing Machine YES-2000D Digital Display Compression Testing Machine
YAW-2000D 200ton Computerized electro-hydraulic high quality compression test tool price
YAW-2000D 200ton Computerized electro-hydraulic high quality compression test tool price
YAW-2000D 200ton Computerized electro-hydraulic high quality compression test tool price
One year guarantee of the whole machine
24 hours techonical support by e-mail
calling or door-to-door service
