Help CenterRS-390 dc Motor
US$ 0.7 - 0.95
MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KINGO
Model Number:
RS-390
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF-500TB DC MOTORUS$ 0.35 - 0.6MOQ: 5000 Pieces -
FF-130SH dc MotorUS$ 0.45 - 0.65MOQ: 5000 Pieces
-
dc Motor for DVDUS$ 0.3 - 0.5MOQ: 10000 Pieces
-
For DVD/CD, ROHS Certificate, RF-500 RF-500TB Micro Motor DC Electric MotorUS$ 0.35 - 0.6MOQ: 5000 Pieces
-
DC MOTR RS-385SHUS$ 0.45 - 0.7MOQ: 3000 Pieces
Place of Origin
Zhejiang, China
Brand Name
KINGO
Model Number
RS-390
Usage
Boat, Car, Fan, Home Appliance, Other
Certification
CE
Type
Micro Motor
Torque
50~150g.cm
Construction
Permanent Magnet
Commutation
Brush
Speed(RPM)
3,000~22,000 r.p.m
Continuous Current(A)
0.1~15A
Output Power
2~60W
Voltage(V)
2.4~40
Efficiency
IE 1
Specifications

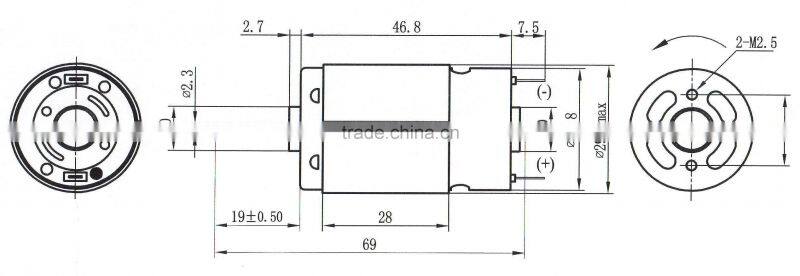

Carbon brush dc motorDiameter 27.5mm,length 46mm,shaft 2.3mm
Voltage: 2.4~36V
No load Speed 3,000~22,000r.p.m
Output:2~60W
DC motors models RS-390 or RS-395, Carbon brush dc motor, Cylinder, Diameter 27.5 mm, length 46mm, shaft 2.3 mm, fixing screw 2-M2.5 mm, Operating voltage: 2.4~36V, At no load Speed 3,000~22,000 r.p.m, Output about 2~60W. fit for massager, vibrator, vending machine, drill & screw driver, gear head, etc.
| Model | Voltage | No Load | At Max. Efficiency | Stall Torque | ||||||
| Operating Range(V) | Nominal | Speed | Current | Speed | Current | Torque | Output | Eff | ||
| V | r.p.m | A | r.p.m | A | g.cm | W | % | g.cm | ||
| RS-395-3325 | 2.4 ~ 12.0 | 6.0 | 10,200 | 0.410 | 8,461 | 1.99 | 87.0 | 7.56 | 63.3 | 510 |
| RS-395-2840 | 6.0 ~ 18.0 | 12.0 | 13,500 | 0.250 | 11,624 | 1.55 | 113.3 | 13.52 | 72.7 | 815 |
| RS-395S-2168 | 6.0 ~ 30.0 | 12.0 | 6,850 | 0.135 | 5,712 | 0.68 | 87.2 | 5.11 | 62.7 | 525 |
| RS-395S-1965 | 6.0 ~ 30.0 | 24.0 | 14,500 | 0.150 | 12,520 | 0.95 | 122.9 | 15.79 | 69.3 | 900 |
| RS-395S-1890 | 9.0 ~ 30.0 | 24.0 | 10,500 | 0.110 | 8,800 | 0.63 | 112.5 | 10.16 | 67.2 | 780 |
| RS-395-17120 | 9.0 ~ 30 | 12.0 | 4,023 | 0.050 | 3,337 | 0.25 | 58.9 | 2.02 | 67.8 | 345 |
| RS-395S-15150 | 9.0 ~ 30 | 24.0 | 6,200 | 0.055 | 5,255 | 0.31 | 96.0 | 5.18 | 69.6 | 630 |
| RS-395-15120 | 9.0 ~ 30 | 24.0 | 7,721 | 0.070 | 6,263 | 0.30 | 72.7 | 4.67 | 64.9 | 385 |
| RS-395S-14100 | 9.0 ~ 30 | 24.0 | 9,100 | 0.095 | 7,549 | 0.46 | 88.6 | 6.87 | 62.2 | 520 |
| RS-395-10230 | 9.0 ~ 30 | 224.0 | 4,077 | 0.032 | 3,232 | 0.12 | 51.8 | 1.72 | 6.3 | 250 |
