Contact Platform Support
Help CenterRS-380 Massage
US$ 0.45 - 0.55
MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KINGO
Model Number:
RS-380
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
KINGO
Model Number
RS-380
Usage
Boat, Car, Fan, Home Appliance, Other
Certification
CE
Type
Micro Motor
Torque
30~120g.cm
Construction
Permanent Magnet
Commutation
Brush
Speed(RPM)
3,500~25,000 r.p.m
Continuous Current(A)
0.1~8A
Output Power
1.5~50W
Voltage(V)
2.4~40
Efficiency
IE 1

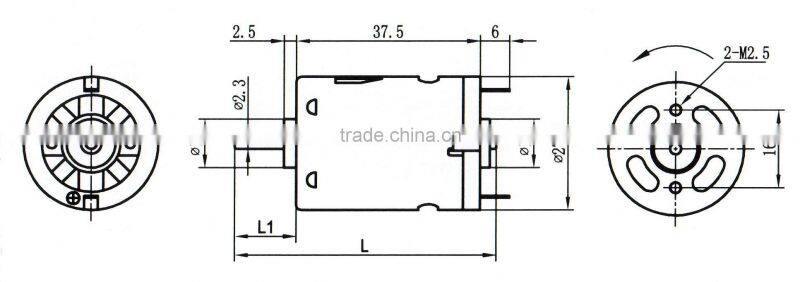

DC motors models RS-380 or RS-385, Carbon brush dc motor, Cylinder, Diameter 27.5mm, length 37.5mm, shaft 2.3mm, fixing screw 2-M2.5mm. Operating voltage: 2.4~40V, At no load Speed 3,000~25,000 r.p.m, Output about 1.5~50 W. fit for hair dryer, massager, vibrator, vending machine, popcorn maker, annunciator, drill & screw driver, egg mixer, etc.
| Model | Voltage | No Load | At Max. Efficiency | Stall Torque | ||||||
| Operating Range(V) | Nominal | Speed | Current | Speed | Current | Torque | Output | Eff | ||
| V | r.p.m | A | r.p.m | A | g.cm | W | % | g.cm | ||
| RS-380S-4530 | 1.5 ~ 6.0 | 6.0 | 19,500 | 0.90 | 16,500 | 5.23 | 110.0 | 18.63 | 59.4 | 600 |
| RS-380S-3548 | 2.4 ~ 6.0 | 3.6 | 8,600 | 0.54 | 6,880 | 2.15 | 60.0 | 4.24 | 54.7 | 300 |
| RS-380S-3270 | 4.5 ~ 12.0 | 12.0 | 17,500 | 0.35 | 14,750 | 2.15 | 100.0 | 15.14 | 58.7 | 620 |
| RS-380S-2580 | 6.0 ~ 18.0 | 12.0 | 16,800 | 0.26 | 14,318 | 1.50 | 80.0 | 11.76 | 65.3 | 550 |
| RS-380S-15200 | 6.0 ~ 24.0 | 12.0 | 6,700 | 0.11 | 5,360 | 0.44 | 50.0 | 2.75 | 52.1 | 250 |
| RS-385S-2365 | 4.5 ~ 24.0 | 17.5 | 15,800 | 0.190 | 13,400 | 1.10 | 95.0 | 13.07 | 67.9 | 610 |
| RS-385S-2173 | 6.0 ~ 26.0 | 24.0 | 22,120 | 0.21 | 18,750 | 1.17 | 100.0 | 19.25 | 68.5 | 660 |
| RS-385S-1980 | 4.5 ~ 30.0 | 5.0 | 3,445 | 0.11 | 2,630 | 0.35 | 38.0 | 1.03 | 58.6 | 160 |
| RS-385S-17120 | 6.0 ~ 30.0 | 24.0 | 12,000 | 0.12 | 10,100 | 0.63 | 83.0 | 8.60 | 56.9 | 520 |
| RS-385S-10250 | 9.0 ~ 30.0 | 24.0 | 5,800 | 0.040 | 4,610 | 0.16 | 45.0 | 2.13 | 55.5 | 220 |
