Home > Electrical & Electronics > Electric Motor > DC Motor > CE Certificate RS-280 12V DC Electric Motor

CE Certificate RS-280 12V DC Electric Motor

Name: CE Certificate RS-280 12V DC Electric Motor
Brand: KINGO
SKU: 126921095
Availability: InStock

CE Certificate RS-280 12V DC Electric Motor thumbnail-1

CE Certificate RS-280 12V DC Electric Motor photo-1

US$ 0.34 - 0.5 MOQ: 3000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

KINGO

Model Number:

RS-280

Contact Supplier Request Quote Chat Now

Ningbo Haishu Kingo Motors Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name KINGO

Model Number RS-280

Usage Boat, Car, Fan, Home Appliance, Other

Certification CE

Type Other, Micro Motor, 12V DC Motor

Torque 20~80g.cm

Construction Permanent Magnet

Commutation Brush

Protect Feature Other

Speed(RPM) 3,000~15,000 r.p.m

Continuous Current(A) 0.1~5A

Output Power 0.5~10W

Voltage(V) 2.4~24

Efficiency IE 1

Specifications

12v DC Motor

Carbon brush dc motor

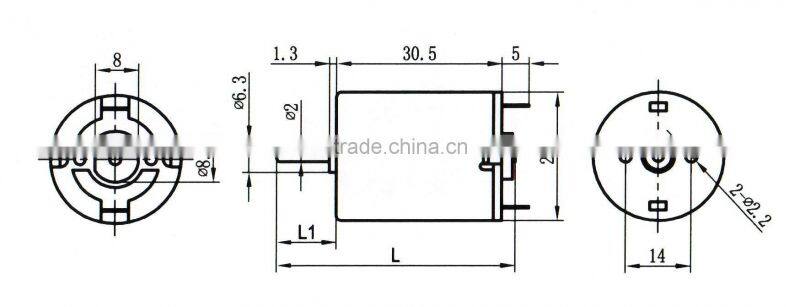

Diameter 24mm, length 30mm, shaft 2mm
Voltage: 2.4~24V
No load Speed 3,000~25,000 rpm

Output about 0.5~10W.

Fit for hair dryer, massager, mini fans, toys, gear head, automotive central locking system, etc.

Model	Voltage		No Load		At Max. Efficiency					Stall Torque
	Operating Range(V)	Nominal	Speed	Current	Speed	Current	Torque	Output	Eff	Stall Torque
	Operating Range(V)	V	r.p.m	A	r.p.m	A	g.cm	W	%	g.cm
RS-280S-3155	1.2 ~ 6.0	4.5	12,000	0.30	10,100	1.60	42.0	4.35	60.5	270
RS-280S-2865	1.5 ~ 7.2	3.0	7,000	0.20	5,800	0.96	28.0	1.67	57.9	165
RS-280S-2485	3.0 ~ 12.0	6.0	10,600	0.20	8,850	1.00	40.0	3.63	60.6	240
RS-280S-21120	3.0 ~ 15.0	6.0	7,800	0.15	6,300	0.65	35.0	2.26	58.0	185
RS-280S-18145	3.0 ~ 15.0	6.0	7,000	0.12	5,650	0.50	30.0	1.74	58.0	155
RS-280S-15180	4.5 ~ 18.0	12.0	10,800	0.10	8,900	0.48	36.0	3.29	57.1	200
RS-280S-12300	9.0 ~ 30.0	12.0	6,400	0.05	5,170	0.21	28.0	1.49	59.0	145
RS-280S-10350	9.0 ~ 30.0	12.0	5,150	0.04	4,050	0.15	22.5	0.94	52.0	100
RS-280S-09400	9.0 ~ 30.0	12.0	4,600	0.035	3,590	0.11	18.0	0.66	50.3	85
RS-280S-08500	9.0 ~ 30.0	12.0	3,700	0.03	2,760	0.09	16.5	0.47	44.3	65

Packaging & Shipping

Packaging Details: POLYFORM TRAY PACKING IN EXPORT CARTON

Delivery Details: 30days, depends on the quantity.

Company Information

Ningbo Haishu Kingo Motors Factory

Add: No. 28, Lane 289, Qiyun Road, Ningbo, Zhejiang, China (Mainland)

Our company was set up in April, 2002. We are specialized in manufacturing all kinds of Micro dc motors, dc reductor motors, air pumps, water pumps, etc. Main products have passed CE and ECM certifications. Our company can manufacture over 3 million units of all kinds of motors in one year and 95% of products are exported to the international market. Products are mostly sold to Korea, the USA, Japan, Germany, France, Britain, Brazil, Mexico, Italy, Australia, India, Israel, Iran and the Middle East.

Now our company is producing Dc motors (with carton brushes) with main models as follows: RS-280, RS-340, RS-350, RS-360/365, RS-380/385, RS-390/395, RS-510, RS-540/545, RS-550/555, RS-750/755, RS-770/775, etc. with diameter from 24mm~42mm and out power from 0.5~200W. Our products are widely used in hair dryers, haircut apparatuses, massagers, power tools, drill & screw drivers, vending machines, air pumps, water pumps, vacuum cleaners, forest tools, printers, Auto Office equipment, car washing pumps, car antenna elevators, etc. Also, our company can design all kinds of products in Special specifications according to customers' different requirements. All the products of our company have passed RoHS certification.
