Home > Electrical & Electronics > Electric Motor > DC Motor > CE Certificate RK-510(3429) Micro DC Geared Motor

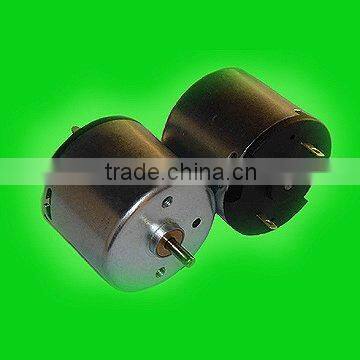

CE Certificate RK-510(3429) Micro DC Geared Motor

Name: CE Certificate RK-510(3429) Micro DC Geared Motor
Brand: KINGO
SKU: 126921045
Availability: InStock

CE Certificate RK-510(3429) Micro DC Geared Motor thumbnail-1

CE Certificate RK-510(3429) Micro DC Geared Motor photo-1

US$ 0.9 - 1.2 MOQ: 3000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

KINGO

Model Number:

RK-510(3429)

Contact Supplier Request Quote Chat Now

Ningbo Haishu Kingo Motors Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name KINGO

Model Number RK-510(3429)

Usage Boat, Car, Fan, Home Appliance, Other

Certification CE

Type Micro Motor

Torque more than 60g.cm

Construction Permanent Magnet

Commutation Brush

Protect Feature Other

Speed(RPM) 3,500~15,000r.p.m

Continuous Current(A) 0.05~8A

Output Power 2.5~35W

Voltage(V) 3~24

Efficiency IE 1

Specifications

Carbon brush dc motor

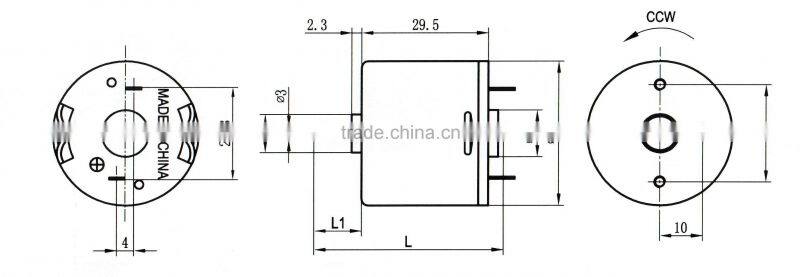

Diameter 34mm,Length 29mm,Shaft 3mm
Voltage: 3~24V
No load Speed 3,500~15,000r.p.m
Output:2.5~35W

Models RK-510(3429),, Carbon brush dc motor, Cylinder, Diameter34mm, length 29mm; shaft 3 mm, fixing screw 2-M3.0 mm. Operating voltage: 3~24V, At no load Speed 3,500~15,000 r.p.m, Output about 2.5~35W. fit for gear box, vending machine, etc.

Model	Voltage		No Load		At Max. Efficiency					Stall Torque
	Operating Range(V)	Nominal	Speed	Current	Speed	Current	Torque	Output	Eff	Stall Torque
	Operating Range(V)	V	r.p.m	A	r.p.m	A	g.cm	W	%	g.cm
RK-510-23150	6.0 ~ 15.0	12.0	9,250	0.166	7,700	0.83	92.5	7.31	73.8	550
RK-510-22170	6.0 ~ 15.0	12.0	8,340	0.127	6,992	0.66	77.9	5.59	70.9	480
RK-510-21180	7.2 ~ 24.0	12.0	8,000	0.210	6,225	0.88	92.0	5.88	55.7	430
RK-510-18220	9.0 ~ 24	12.0	6,100	0.100	4,986	0.45	69.7	3.57	66.2	382
RK-510-14385	9.0 ~ 30	24.0	7,580	0.090	6,167	0.40	94.3	5.97	61.6	517
RK-510-12565	12.0 ~ 30	24.0	5,140	0.055	4,137	0.22	77.1	3.27	62.0	390
RK-510-10825	12.0 ~ 36	24.0	3,350	0.035	2,553	0.12	63.2	1.66	56.1	263

Packaging & Shipping

Packaging Details: POLYFORM TRAY PACKING IN EXPORT CARTON.

Delivery Details: 30 days, depends on the quantity.

Company Information

Ningbo Haishu Kingo Motors Factory

Add: No. 28, Lane 289, Qiyun Road, Ningbo, Zhejiang, China (Mainland)

Our company was set up in April, 2002. We are specialized in manufacturing all kinds of Micro dc motors, dc reductor motors, air pumps, water pumps, etc. Main products have passed CE and ECM certifications. Our company can manufacture over 3 million units of all kinds of motors in one year and 95% of products are exported to the international market. Products are mostly sold to Korea, the USA, Japan, Germany, France, Britain, Brazil, Mexico, Italy, Australia, India, Israel, Iran and the Middle East.

Now our company is producing Dc motors (with carton brushes) with main models as follows: RS-280, RS-340, RS-350, RS-360/365, RS-380/385, RS-390/395, RS-510, RS-540/545, RS-550/555, RS-750/755, RS-770/775, etc. with diameter from 24mm~42mm and out power from 0.5~200W. Our products are widely used in hair dryers, haircut apparatuses, massagers, power tools, drill & screw drivers, vending machines, air pumps, water pumps, vacuum cleaners, forest tools, printers, Auto Office equipment, car washing pumps, car antenna elevators, etc. Also, our company can design all kinds of products in Special specifications according to customers' different requirements. All the products of our company have passed RoHS certification.
