Specifications
aluminum housing 1 year guarantee general motor1.low noise
2.high torque
3.general use
4.fast delivery,nice price
CE Approval! high torque low rpm electic motor
Features:

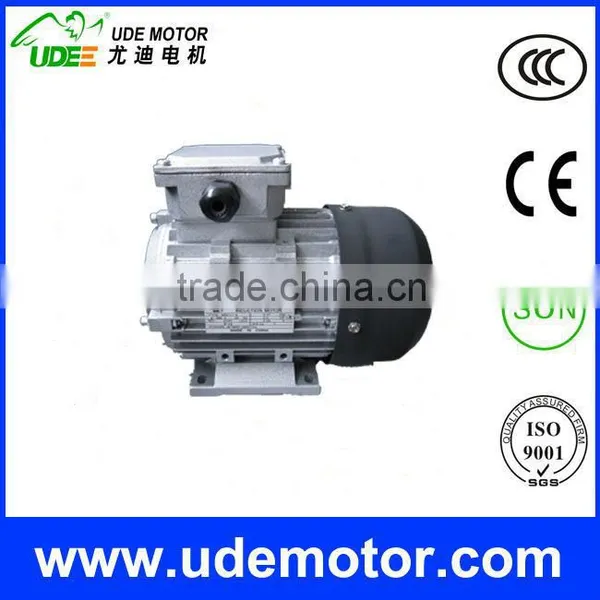

1. Type: three phase asynchronous ac general motor with aluminu housing
2. Construction: totally enclosed, fan cooled, squirrel cage type
3. Insulation: B/F/H class
4. Frame and housing is aluminum.
5. Advantage: perfect performance, low noise, slight vibration, reliable running, good appearance, small volume and light weight
Operating Conditions:
1. Ambient temperature: -15°C<0 < 40 °C
2. Altitude: not exceed 1000m
3. Duty/Rating: Continuous (S1)
4. Insulation class: B/F
5. Protection class: IP54/IP54
6. Cooling Method: ICO411
Use:
MS Series motors are widely applicable to food machine, blower and other machinery and equipment.
Technical Data:
| MS Series Three-Phase Asynchronous Motor With Aluminum Housing | |||||||||
| Type | Output | Current | Power Factor | Eff | Speed | Tstart/Tn | Ist/In | Tmax/Tn | |
| HP | KW | (A) | (cosφ) | (%) | (r/min) | ||||
| MS5612 | 1/6 | 0.09 | 0.32 | 0.68 | 62.0 | 2758 | 2.3 | 6 | 2.4 |
| MS5622 | 1/6 | 0.12 | 0.38 | 0.71 | 67.0 | 2780 | 2.3 | 6 | 2.4 |
| MS5632 | 1/4 | 0.18 | 0.53 | 0.75 | 69.0 | 2780 | 2.3 | 6 | 2.4 |
| MS6312 | 1/4 | 0.18 | 0.53 | 0.75 | 69.0 | 2715 | 2.2 | 6 | 2.4 |
| MS6322 | 1/3 | 0.25 | 0.69 | 0.81 | 68.0 | 2715 | 2.2 | 6 | 2.4 |
| MS6332 | 1/2 | 0.37 | 0.99 | 0.81 | 70.0 | 2715 | 2.5 | 6 | 2.7 |
| MS7112 | 1/2 | 0.37 | 0.99 | 0.81 | 70.0 | 2690 | 2.2 | 6 | 2.4 |
| MS7122 | 3/4 | 0.55 | 1.40 | 0.82 | 73.0 | 2715 | 2.2 | 6 | 2.4 |
| MS7132 | 1 | 0.75 | 1.83 | 0.83 | 75.0 | 2700 | 2.6 | 6 | 2.9 |
| MS8012 | 1 | 0.75 | 1.83 | 0.83 | 75.0 | 2730 | 2.2 | 6 | 2.4 |
| MS8022 | 1/5 | 1.10 | 2.58 | 0.84 | 77.0 | 2746 | 2.2 | 6 | 2.4 |
| MS8032 | 2.0 | 1.50 | 3.43 | 0.84 | 79.0 | 2770 | 2.8 | 6 | 3.1 |
Our Factory:
Production Line and Test:

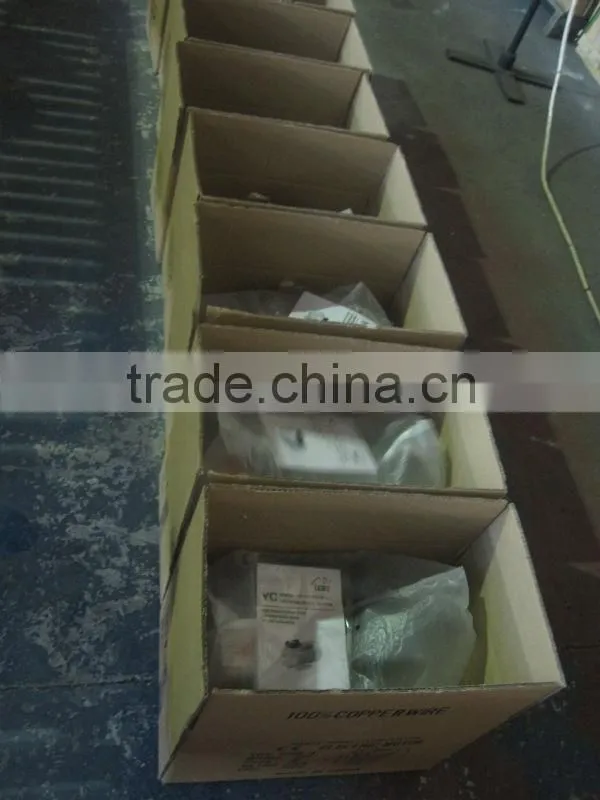

Packing and Loading Containers:
SUBSISTED RELY ON QUALITY
DEVELOPMENT RELY ON CREATING & CREDIC
