Help CenterYCL Series Three Phase High Torque Low Rpm Electric Motor
Related Products
Specifications
YCL Series high three phase torque low rpm electric motor ac1.High starting torque
2.Low temperature rise
3.Low noise

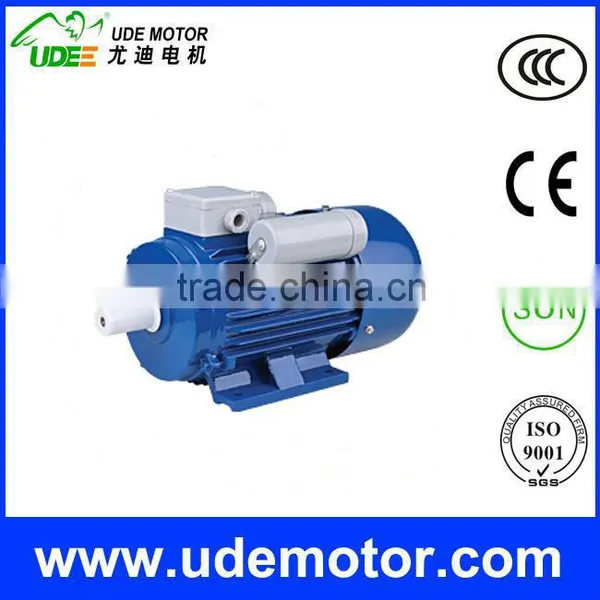

YCL Series high three phase torque low rpm electric motor ac
Introduce
YCL series heavy-duty capacitor start and run, single phase induction motors are suitable for driving small-size turning machine, especially suitable for household and workshop where only single-phase power be supplied. This series of motors are designed with advanced technique and made of high quality materials. It also has following features: low noise, low temperature rise, small starting current, high starting torque, reliable operation, easy maintenance and nice appearance, they also meet the relative standards of IEC. YCL series motors are similar to YC series in appearance. Comparing with the same output of YC series motors, YCL series temperature rise is reduced 8.74k on average, efficiency is increased 4.21%, power factor is increased 0.16.
| Type | Output | Current (A) | Speed (r/min) | EFF. (%) | Power Factor | Tstart/Tn | Ist/In | Tmax/Tn | |
| KW | HP | ||||||||
| YCL80A-2 | 0.37 | 0.5 | 2.7 | 2830 | 68.5 | 0.94 | 2.3 | 6.0 | 1.8 |
| YCL80B-2 | 0.55 | 0.75 | 4.0 | 2840 | 71.0 | 0.95 | 2.4 | 6.0 | 1.8 |
| YCL80C-2 | 0.75 | 1 | 5.4 | 2850 | 72.5 | 0.95 | 2.5 | 6.0 | 1.8 |
| YCL90S-2 | 1.10 | 1.5 | 7.2 | 2880 | 73.2 | 0.95 | 2.8 | 6.0 | 1.8 |
| YCL90L-2 | 1.50 | 2 | 8.9 | 2900 | 76.0 | 0.97 | 2.8 | 7.0 | 1.8 |
| YCL100L-2 | 2.20 | 3 | 13.2 | 2900 | 78.8 | 0.96 | 3.0 | 6.5 | 1.8 |
| YCL80A-4 | 0.25 | 1/3 | 1.3 | 1410 | 67.0 | 0.93 | 2.3 | 6.0 | 1.8 |
| YCL80B-4 | 0.37 | 1/2 | 2.6 | 1420 | 69.0 | 0.93 | 2.4 | 6.0 | 1.8 |
| YCL80C-4 | 0.55 | 3/4 | 3.8 | 1430 | 71.0 | 0.93 | 2.5 | 6.0 | 1.8 |
| YCL90S-4 | 0.75 | 1 | 5.0 | 1450 | 73.3 | 0.93 | 2.8 | 6.5 | 1.8 |
| YCL90L-4 | 1.10 | 1.5 | 7.8 | 1450 | 75.0 | 0.90 | 2.5 | 6.0 | 1.8 |
| YCL100L-4 | 1.50 | 2 | 9.3 | 1450 | 79.4 | 0.92 | 2.8 | 7.0 | 1.8 |
| YCL112M-4 | 2.20 | 3 | 13.6 | 1450 | 81.6 | 0.90 | 2.3 | 6.5 | 1.8 |
| YCL132S1-4 | 3.00 | 4 | 18.2 | 1450 | 83.2 | 0.90 | 2.1 | 6.5 | 1.8 |
| YCL132S2-4 | 3.70 | 5 | 22.0 | 1450 | 84.9 | 0.90 | 2.1 | 6.5 | 1.8 |
| YCL132M1-4 | 5.50 | 7.5 | 32.5 | 1460 | 85.0 | 0.90 | 2.0 | 6.5 | 1.8 |
| YCL132M2-4 | 7.50 | 10 | 40.0 | 1460 | 85.5 | 0.90 | 2.0 | 6.5 | 1.8 |
