Product Name: Singapore, 50W, All-In-One Infrare Sensor Solar LED Streetlight, LG LEDs, integrated Infrare Sensor Solar LED Street Lamp
Model: ILT-ST09-50W
---50W All-In-One Infrare Sensor Solar LED Street Lamp with LG LED Chips
Features:
1. LG LED Chips.
2. Infrared sensor.
3. Microwave Sensor
4. integrated design, no wires required.
5, 3years warranty

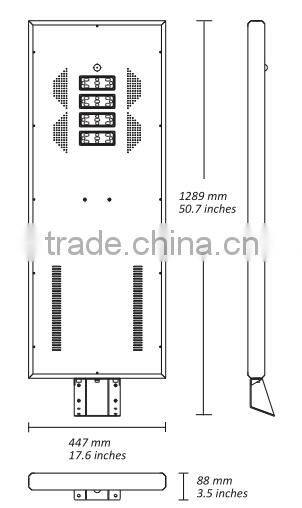

---Physical sizes of 50W All-In-One Infrare Sensor Solar LED Street Lamp with LG LED Chips

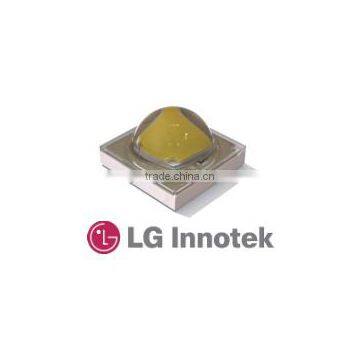

---LG LED Chips of 50W All-In-One Infrare Sensor Solar LED Street Lamp
Specifications:
Solar panel type: Monocrystal
Battery: Lithium-iron
Charge Temperature <60℃
Discharge Temperature: -20℃~60℃
Switch Lights Sense Threshold: on≤10LXS, off≥15 LXS
Lamp pole diameter: 40~60mm
Model |
LED Chips |
Lamp Power |
Solar panel (Monocrystal) |
Battery (Lithium Iron) |
LED number |
Full power Duration time |
Duration time at 25% power |
Charge time |
Mount height |
Lights distance |
Lumen (+/-5%) |
ST-09 |
LG |
10W |
16.8W/18V |
9A/12V |
7pcs |
8Hours |
>40Hours |
5-6Hours |
3-4M |
12M |
1100lm |
15W |
16.8W/18V |
9A/12V |
7pcs |
7Hours |
>35Hours |
5-6Hours |
3-4M |
15M |
1650lm |
||
20W |
37.8W/18V |
16.5A/12V |
10pcs |
7Hours |
>35Hours |
5-6Hours |
4-5M |
18M |
2200lm |
||
30W |
50.4W/18V |
24A/12V |
15pcs |
7Hours |
>35Hours |
5-6Hours |
5-6M |
20M |
3300lm |
||
40W |
73.5W/18V |
33A/12V |
20pcs |
7Hours |
>35Hours |
5-6Hours |
6-7M |
25M |
4400lm |
||
50W |
73.5W/18V |
40A/12V |
20pcs |
7Hours |
>35Hours |
5-6Hours |
7-8M |
30M |
5500lm |
||

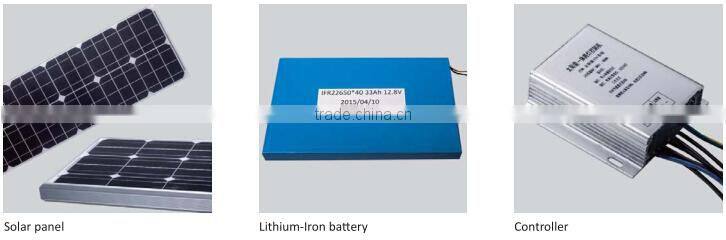

1), price includs LED lamp, solar panel, lithium iron battery, controller, Microwave sensor. But lamp pole not included. 2), No wires needed. All-in One design | |||||||||||
·UNIQUE LUMINARIE DESIGN
The lamp is 100% new Designed. The integrated design makes the light simple, stylish and practical;
solar energy supply means clean energy and clean energy means save costs. Once installed, it will not need to face any other costs.
The luminaries can be adjusted to different angles, depending on the latitude and characteristics of the land.
It can be installed vertically and horizontally, or on a wall. It is designed to install, maintain or repair easily, maintain or repair.
Its surface can absorb all the solar energy and its infrared body sensor modulates to save energy during night-time.
All these are without cables.

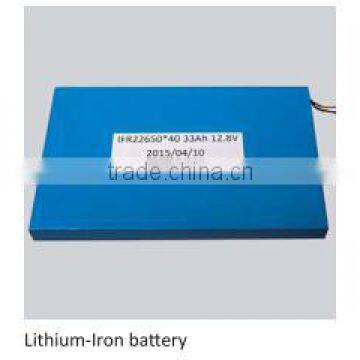

The Lithium-Iron battery is compressed and has three main characteristics: reduced size, high-capacity and long life-span.
Up to 110Lm/W (Lumens per Watt) light output and +90% driver efficiency. We provide 3 years warranty for the luminaries.
·FLEXIBLE INSTALLATION
The installation can be adjusted according to different environments or illumination needs.

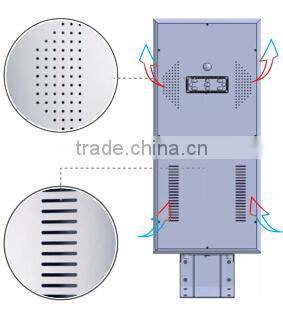

---Unique Heat Dissipation Design of 50W All-In-One Infrare Sensor Solar LED Street Lamp with LG LED Chips

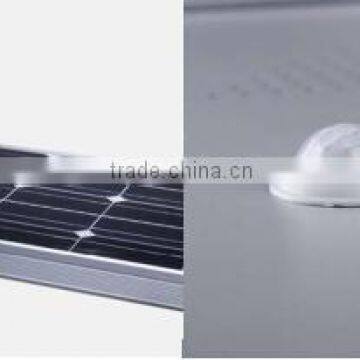

---Infrare sensor of 50W All-In-One Infrare Sensor Solar LED Street Lamp with LG LED Chips

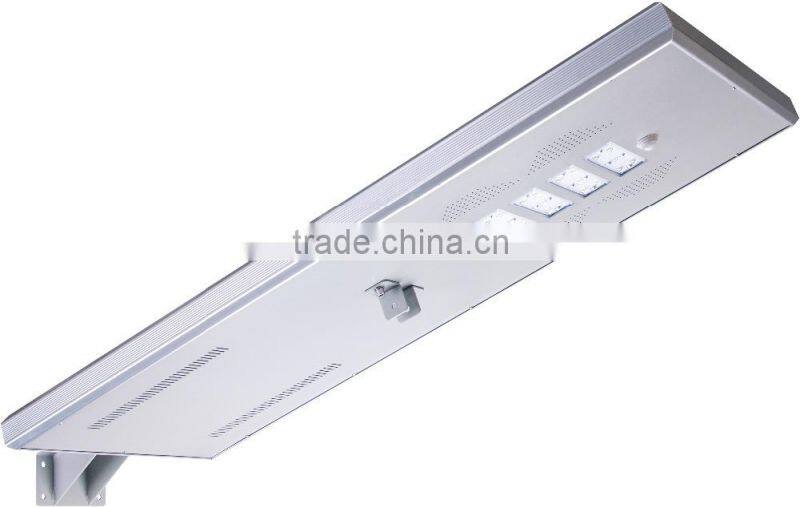

---All In One Design of 50W All-In-One Infrare Sensor Solar LED Street Lamp with LG LED Chips

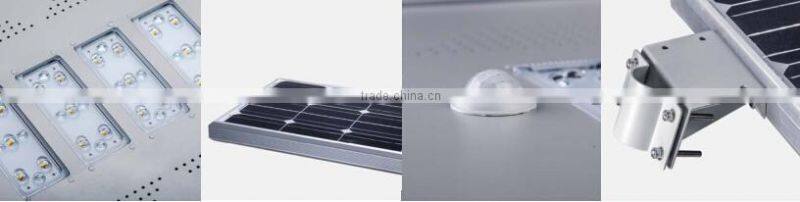

---Detailed view of 50W All-In-One Infrare Sensor Solar LED Street Lamp with LG LED Chips
Advantages:
·LED LUMINOUS SOURCE
The new integrated solar street lights utilize LG LED luminous source,
which guarantees excellent lumen output up to 110Lm/W, great stability and fantastic light.
Each LG LED owns electrostatic protection component, avoiding electrostatic damage.
·Infrared body sensor/ Microwave induction
With infrared body induction controlled technology,
it can store energy during the daylight,
and modulate it on/off when people pass through at night.
During the night, the light can work automatically controlled by the smart sensor:
It will be on bright mode when people pass through and on energy-saving mode when not (working mode can be adjusted according to client’s demands).
·All-in-one design.
The solar panel will receive the solar energy and be stored in the Lithium-Iron battery through the charge controller, to finally be used to illuminate at night. Due to the use of high-end LED technology, the solar light will be 100% optimized.
·FLEXIBLE INSTALLATION
The installation can be adjusted according to different environments or illumination needs.

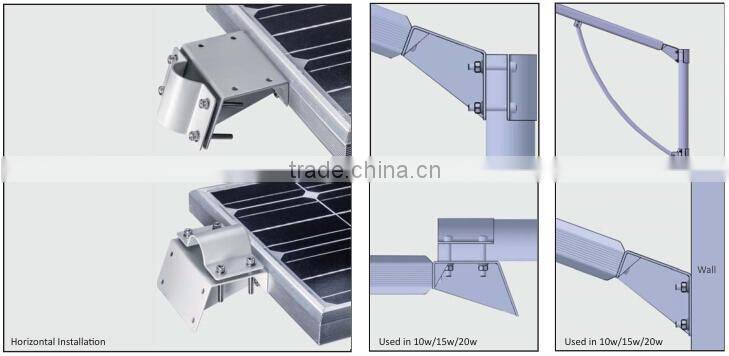

---Flexible installation of 50W All-In-One Infrare Sensor Solar LED Street Lamp with LG LED Chips

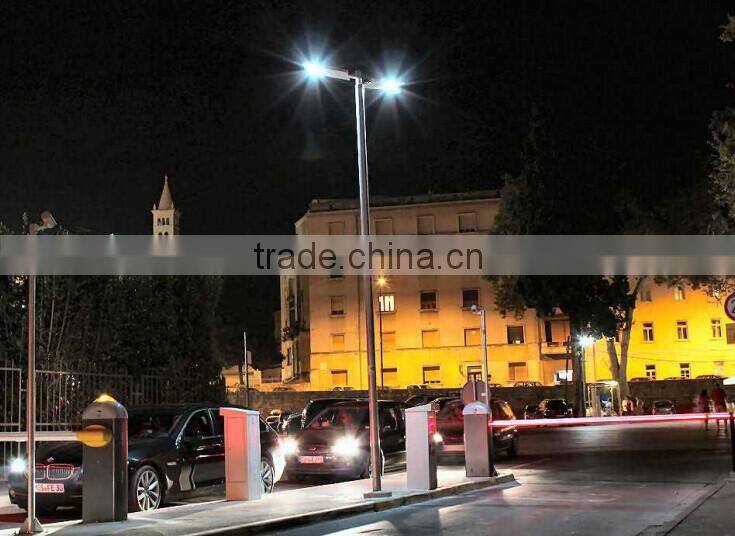

Application:
·Garden, Residence, Courtyard
·Areas with difficult communications
·All areas with good climatology
·Areas with no electrical supply

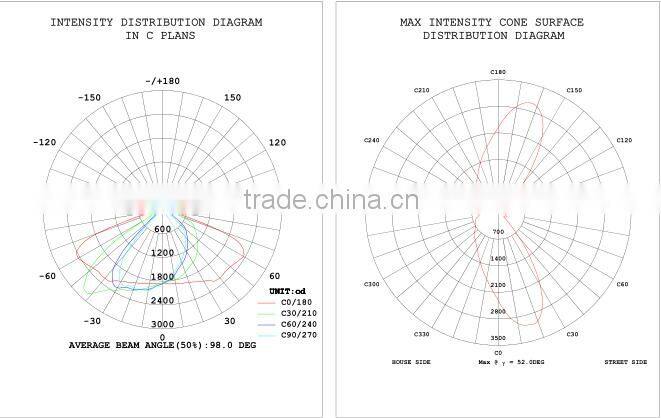

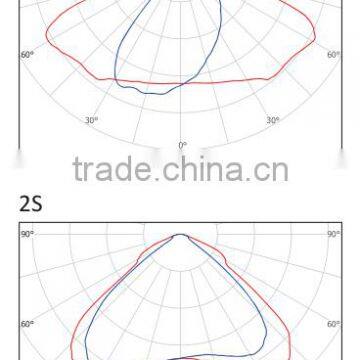

--- Intensity Distribution Diagram of 50W Solar LED Street Lamp with LG LED Chips(suitable for narrow road)
--- Intensity Distribution Diagram of 50W Solar LED Street Lamp with LG LED Chips(suitable for wide road)
1 Unit each carton
Lamp power |
10W |
15W |
20W |
30W |
40W |
50W |
Fixture dimension |
782x301x88 mm 30.8x11.9x3.5 inches |
969x301x88mm 38.1x11.9x3.5inches |
1155x363x88mm 45.5x14.3x3.5inches |
1289x447x88mm 50.7x17.6x3.5 inches |
||
Fixture weight |
6.5 kg /14.3 lbs |
7.9 kg /21.4 lbs |
11.2 kg /24.7 lbs |
15.0 kg /33.1 lbs |
15.7 kg /34.6 lbs |
|
Packing Type |
1unit(s)/ctn. |
|||||
Packing Dimensions |
830 x350 x130 mm 32.7 x13.8 x4.7 inches |
1010 x350 x130 mm 39.8 x13.8 x4.7 inches |
1200 x415 x130 mm 47.2 x16.3 x4.7 inches |
1330 x500 x130 mm 52.4 x19.7 x4.7 inches |
||
Packing Weight |
8.1 kg /17.9 lbs |
12.0 kg /26.5 lbs |
14.0 kg /30.9 lbs |
20.0 kg /44.1 lbs |
20.7 kg /45.6 lbs |
|
Q: How to get warranty?
A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.
Q: OEM design for packaging acceptable?
A: Yes, MOQ is 200pcs per order.
Q: What is MOQ?
A: 4pcs, because standard packing is 4pcs per carton.
Q: Sample policy?
A: clients need to pay for samples and shipping costs.
Q; Payment term?
A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.
For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.
For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.
Q: How to be our distributor?
A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.
Q: How to order?
A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
