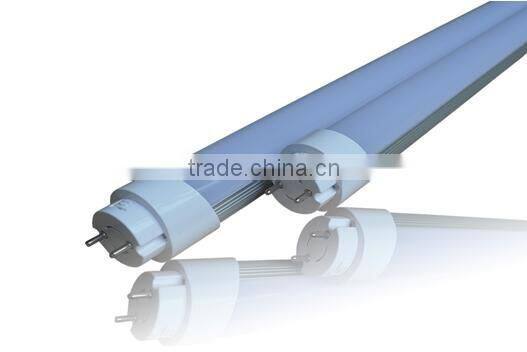

Product name: 27W 5ft Rotatable G13 T8 LED Light,UL/CUL/DLC, Aluminum+PC, One end voltage, G13 T8 LED Lamp,5Years Warranty
Model: CNC-T8-UL
Features:
1. Lampshade: clear cover or milky cover for option
2. Certificate: UL, CUL, DLC, FCC,
3. Voltage input/output: single end powered
4. Material: Alumimum+PC
5. Warranty: 5Years
Specifications:
Length/ Max Power |
LED Qty |
Lumen(±100) |
PF |
60cm/ 2ft/9W |
54pcs |
950lm |
≥0.90 |
120cm/ 4ft/18W |
110pcs |
2050lm |
≥0.93 |
120cm/ 4ft/22W |
110pcs |
2500lm |
≥0.93 |
150cm/ 5ft/22W |
144pcs |
2500lm |
≥0.93 |
150cm/ 5ft/27W |
144pcs |
3050lm |
≥0.95 |
Input voltage: AC100V-277V,50/64Hz
LED type: SMD2835
Lamp base: G13
CRI: Ra≥80
IP rate: IP44
Lm/1 LED: 26-28lm
Luminous efficiency: 110 lm/W±10
Efficiency: ≥ 90%
Beam angle: 160°
End cap: Rotatable socket
Rotatable cap with lock: Yes
CCT: 2700-3200K, 4000-4500K, 6000-6500K(5000-5500K,5500-6000K only for 120cm/4ft/18W)
Working temperature: -35 ~ 55℃
Storage temperature: -40 ~ 80℃
Lifespan: ≥ 50,000 hours
Warranty: 5Years

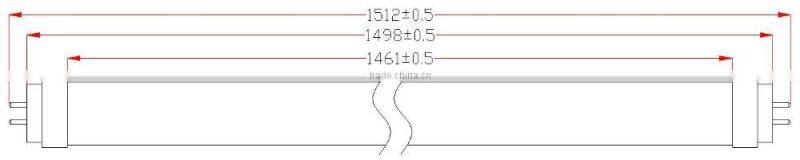

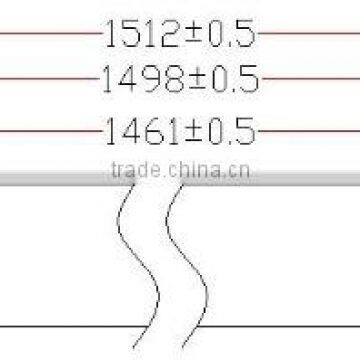

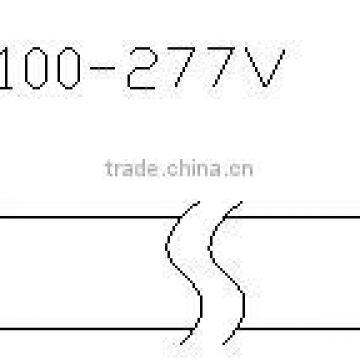

Dimension
Product Features:
·Energy-efficient:Under the same glowing effect, LED tube light conserve 60%-90% energy than the traditional energy-saving lamp, efficiently reducing the electricity expenditure.
·Long lifespan: LED tube adopts light emitting semiconductor chip, without filament. It is not effected by vibration, with more than 50000 hours lifespan.( the ordinary energy-saving lamp only has 8000 hours lifespan)
·Harmless light ray: no ultraviolet ray and infrared ray, so no producing radiation.(there is ultraviolet ray and infrared ray in high voltage sodium lamp )
·Environmental protection: no harmful elements, such as mercury, xenon etc. Be easily recycled and no electromagnetic interference. (there is harmful element in high voltage sodium lamp. the electronic ballast produces electromagnetic interference)
·Eyesight protection: LED light employ DC driver with no flicker(ordinary lamp is AC driver with flicker )
· High lighting efficiency: with small heat, and 80% of the electric energy translated into visible light.(80% of the electric energy of ordinary incandescent lamp translated into heat energy, and only 20% translated into luminous energy)
·High safety factor: LED lighting need smaller voltage and electric current, producing smaller heat. So that there is no potential safety hazard, being suitable to mine field and other dangerous places.
·Anti-mosquito: LED lighting producing no ultraviolet ray, so that it is good for remaining indoor clear because it doesn’t attract mosquito like traditional fluorescent lamp.
·Convenience: traditional fluorescent lamp has to be replaced because of its short lifespan. LED lighting could save the cost associated with replacement or repairmen.(12 hours one day for 11 years)

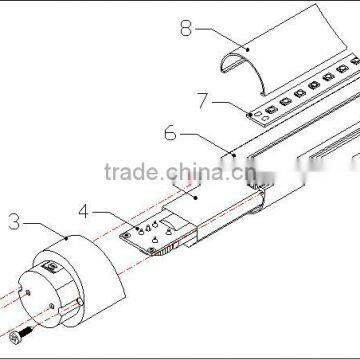

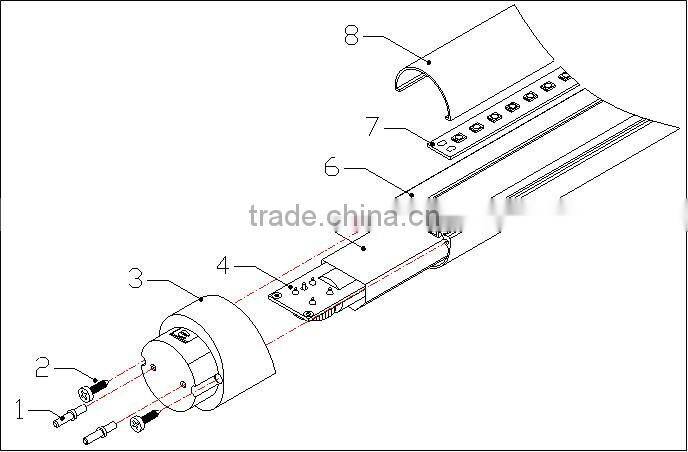

Assembly Technology Drawing
Product Structure:
NO. |
Part name |
Material |
1 |
Fluorescent lamp copper needle |
Brass,surface nickel-plated |
2 |
screw |
stainless steel(M2*10) |
3 |
end cap |
PC |
4 |
LED Power |
FR-4 |
5 |
insulation covering |
PC |
6 |
aluminum gutters |
6063# aluminum alloy, with anodized surface |
7 |
PCB board |
1.2MM FR-4 Fiberglass board |
8 |
transparent diffusion lampshade |
PC (Teijin material) |

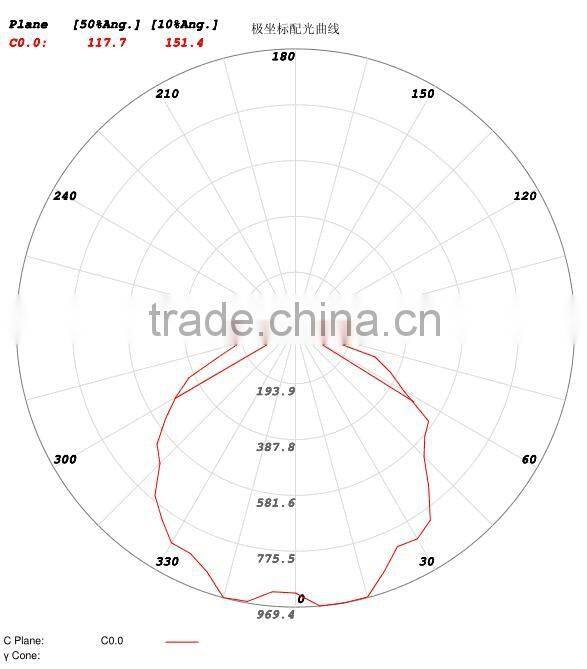

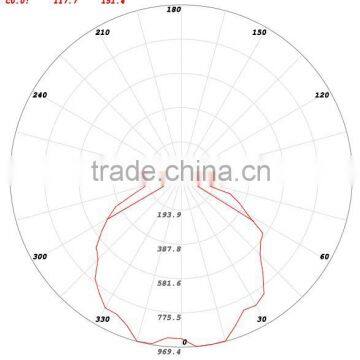

light distributor

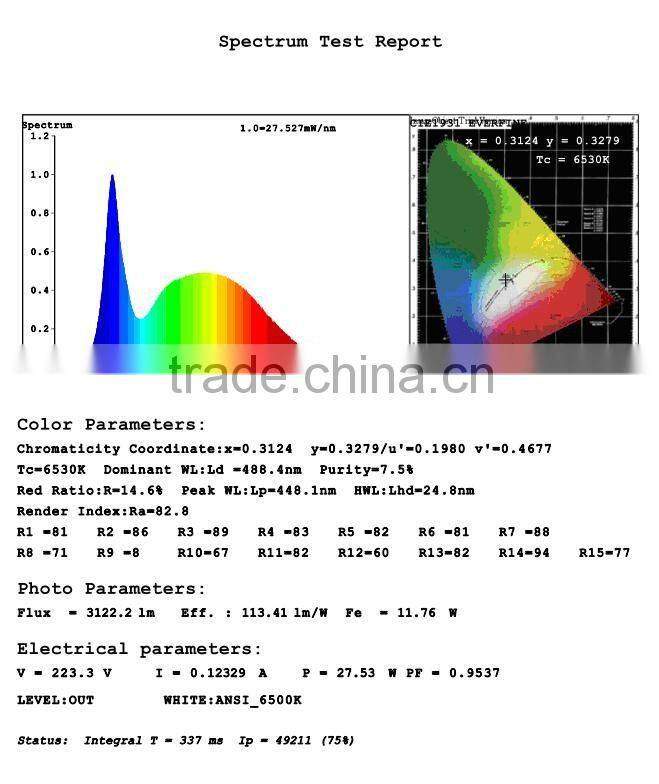

test report

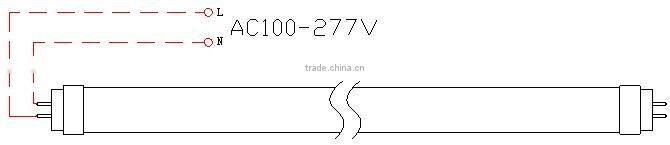

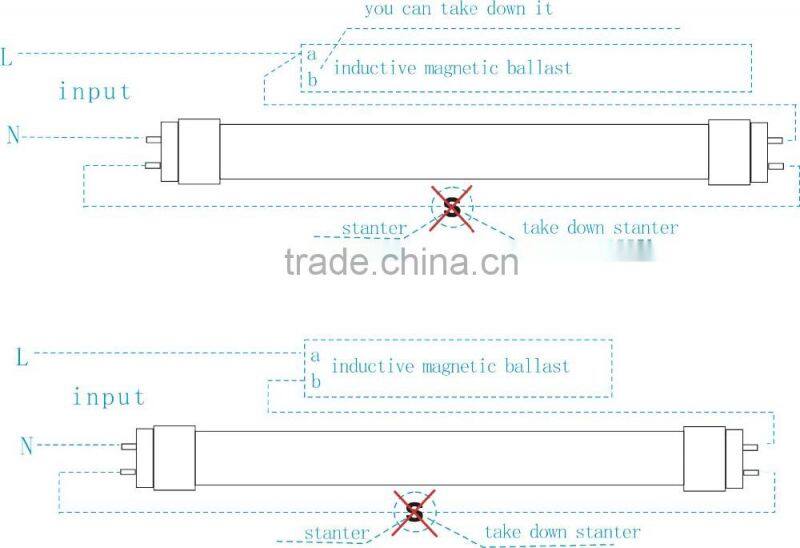

Wiring instruction:
1. The Graphic Illustration for the Exchange of Inductive Ballast LED Tube
(1) Switch off the power before installation
(2) Take down the starter
(3) Replace the traditional lamp with LED tube
2. The best energy-saving case
(1) Switch off the power before installation
(2) Take down the starter
(3) Connected A and B of the inductive ballast, A and B form a short circuit, connecting to a terminal. Or take down the ballast.

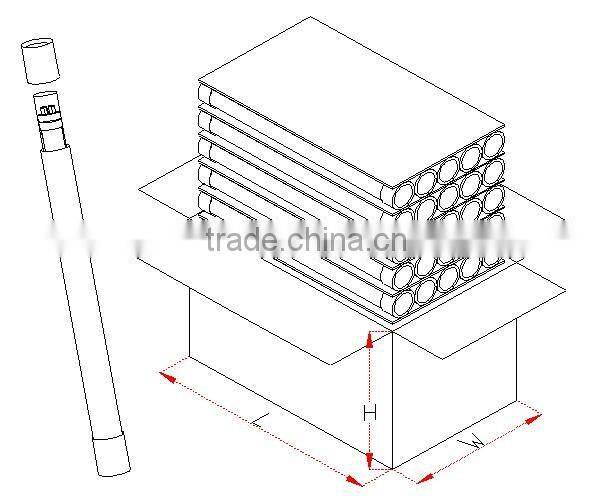

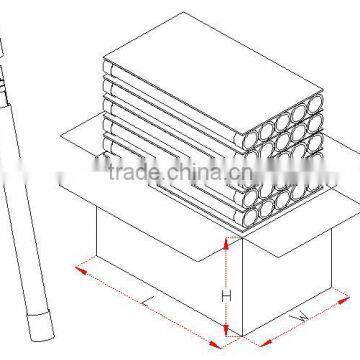

Packing
Length/ Max Power |
Pcs/carton |
NG./carton |
Carton size |
60cm/ 2ft/9W |
25pcs |
7.5kg |
650×230×220mm |
120cm/ 4ft/18W |
25pcs |
13kg |
1270×230×220mm |
120cm/ 4ft/22W |
25pcs |
14.8kg |
1250×230×220mm |
150cm/ 5ft/22W |
25pcs |
17.2kg |
1550×220×220mm |
150cm/ 5ft/27W |
25pcs |
17.5kg |
1550×230×220mm |
Attentions:
1. The working voltage is AC100-277V. Pls ensure the voltage when connected the power supply. The light would be destroyed permanently if connected with higher voltage.
2. After connecting with the power supply, no contact between the relative metal and the light base to prevent electric shock.
3. After unwrapping the package or before using it, pls check whether it is destroyed due to transportation. If there is any damage, pls stop using it to inform supplier. The product only could be used under intact conditions.
4. To ensure the product could be used normally, pls strictly follow the introduction and attention. The supplier shall not be responsible due to any of the damage caused by illegal operation.
5. Pls don’t connect the LED tube and power supply in the high temperature condition. The lifespan would be shorted when it is employed under the higher temperature. It is recommended that the product should be used in room temperature.
6. Before installing, pls ensure the environment is suitable and it is recommended that it should be installed on stable place in case of vibration.
7. Due to the temperature of the lamp’s surface could reach to 50℃, it is recommended that there is no devices which is sensitive to heat. To ensure the suitable working temperature, pls keep it from heat resources and be used in moderate environment.
Q: How to get warranty?
A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.
Q: OEM design for packaging acceptable?
A: Yes, MOQ is 200pcs per order.
Q: What is MOQ?
A: 4pcs, because standard packing is 4pcs per carton.
Q: Sample policy?
A: clients need to pay for samples and shipping costs.
Q; Payment term?
A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.
For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.
For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.
Q: How to be our distributor?
A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.
Q: How to order?
A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
