Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Singapore,12W,180x180x20mm,Low Profile LED Panel Luminaire,Emergency Aperture Square Low Profile LED Panel Fixture

Singapore,12W,180x180x20mm,Low Profile LED Panel Luminaire,Emergency Aperture Square Low Profile LED Panel Fixture

Name: Singapore,12W,180x180x20mm,Low Profile LED Panel Luminaire,Emergency Aperture Square Low Profile LED Panel Fixture
Brand: Green power
SKU: 126886885
Availability: InStock

US$ 1 - 999 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

SMD2835

Warranty(Years):

Input Voltage(V):

100-240

Contact Supplier Request Quote Chat Now

Infinity Lighting Technology Pte. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Singapore

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD2835

Warranty(Years) 5

Input Voltage(V) 100-240

Lamp Power(W) 12

Lamp Luminous Flux(lm) 900lm

Lamp Luminous Efficiency(lm/w) 70

Color Temperature(CCT) Other, 2700-6500K

Working Temperature(℃) -20, 40

Working Lifetime(Hour) 50000

Lamp Body Material Other, PMMA

IP Rating Other, IP41

Certification CE, EMC, LVD

Place of Origin Singapore

Brand Name Green power

Model Number ILT-CH-13A-12WB

Product Description

Product name: 9W,145x145x20mm,Low Profile LED panel Lite,Emergency Aperture Square Low Profile LED Panel Light

Model: ILT-CH -13A-12WB

Features:

1. CRI: Ra>80

2. Power factor: >0.9

3. Material: PMMA

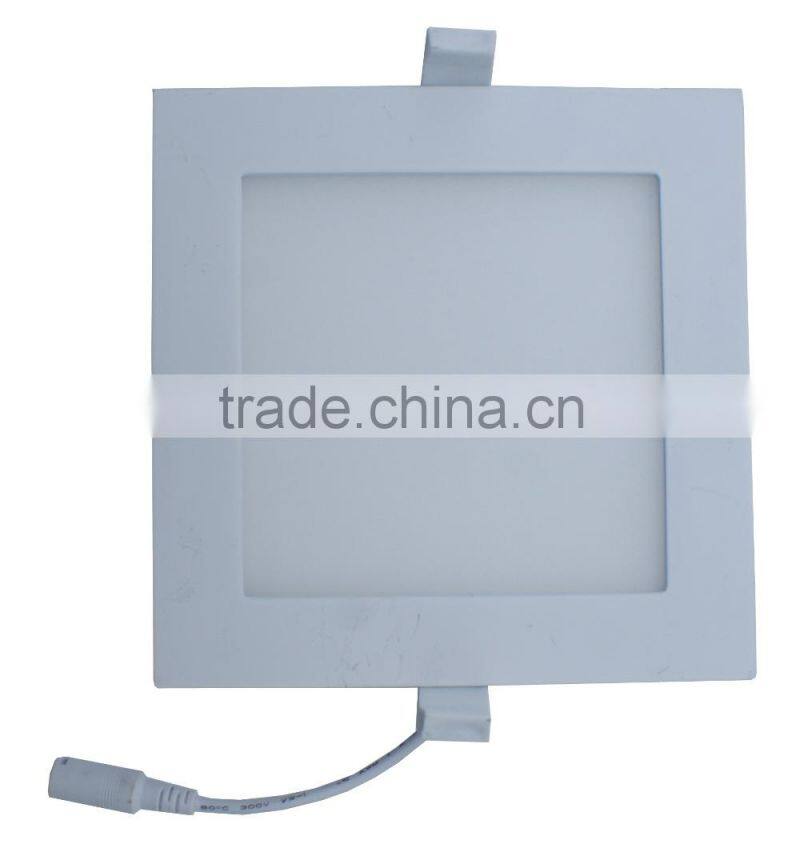

--- Product picture of 12W Emergency Aperture Low Profile LED Panel Fixture

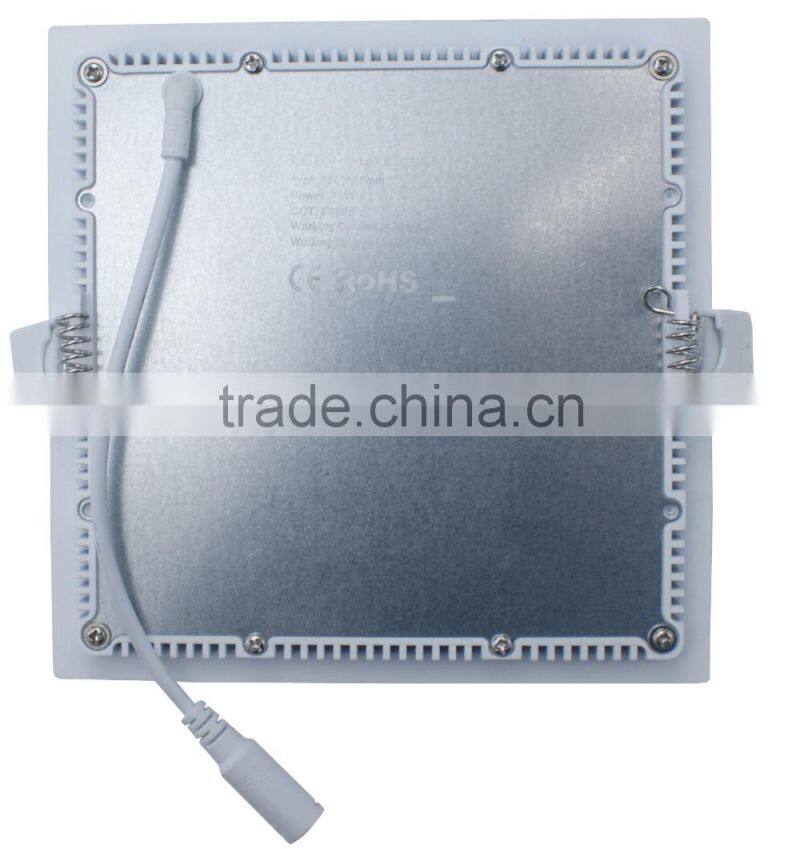

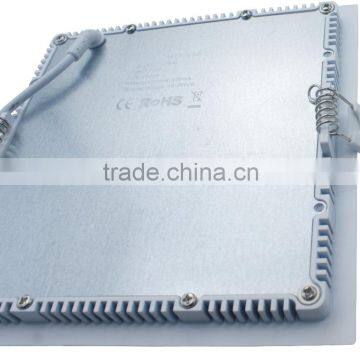

---Product back view of 12W Emergency Aperture Low Profile LED Panel Fixture

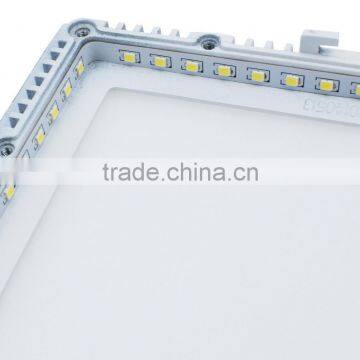

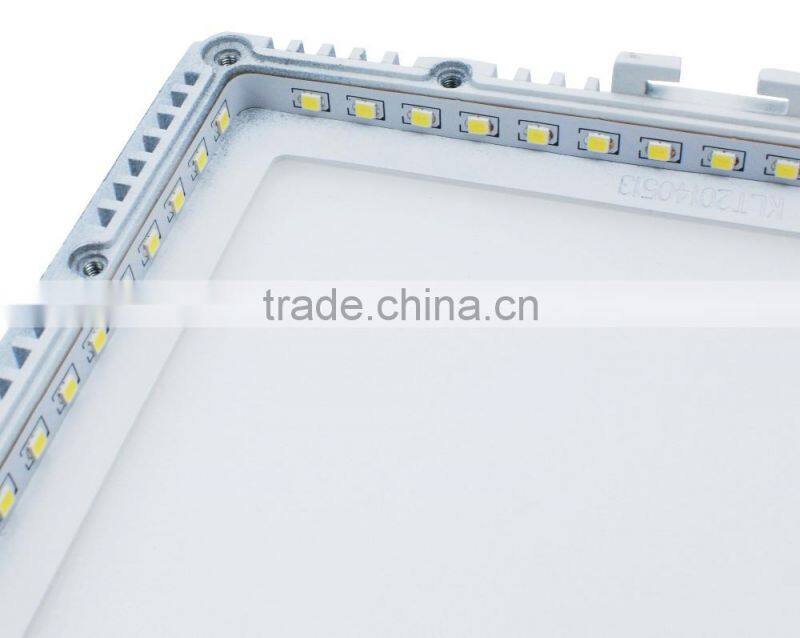

---LED chips inside view of 12W Emergency Aperture Low Profile LED Panel Fixture

Product features:

1. Super bright SMD2835 LED as lighting sources; high efficiency, energy Saving, Eco-friendly;

2. Aluminum alloy frame with high-thermal conductivity, simple and nice;

3. Integrated heat dispersion structure, low lumens depreciation and long lifespan;

4. External constant current driver, universal available;

5. Easy to install.

Specifications:

Power	Product Size(mm)			Hole cutting Size(C)	LED Qty/Type	Luminous Flux	I luminance at 1m(±5%)	Working Voltage current(DC)
Power	A	B	E	Hole cutting Size(C)	LED Qty/Type	Luminous Flux	I luminance at 1m(±5%)	Working Voltage current(DC)
6W	115*115	65*65	20	100*100mm	28Pcs/2835	320Im	98.3Ix	18-28V/220mA
9W	145*145	95*95	20	130*130mm	42Pcs/2835	550Im	164.4Ix	18-28V/340mA
12W	165*165	115*115	20	150*150mm	56Pcs/2835	850Im	251.4Ix	18-28V/470mA
12W	180*180	130*130	20	165*165mm	56Pcs/2835	900Im	256.3Ix	18-28V/470mA
15W	200*200	150*150	20	185*185mm	72Pcs/2835	1100Im	353.7Ix	18-28V/510mA
18W	240*240	190*190	20	225*225mm	77Pcs/2835	1250Im	385.5Ix	24-36V/440mA

IP Rate: IP41

Light Angle: 120°

CCT: 2700-6500K

Driver: external driver

Input Voltage: 100-240VAC

Working Temperature: -20° C~40° C

Lifespan: 30,000Hours

Certificate: CE, RoHs

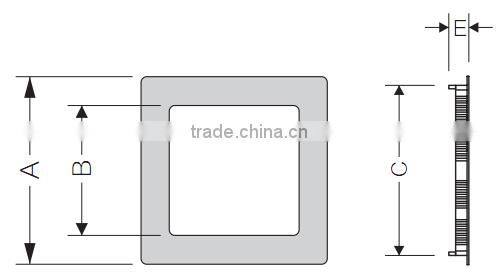

--- Product Dimension of 12W Emergency Aperture Low Profile LED Panel Fixture

Installation

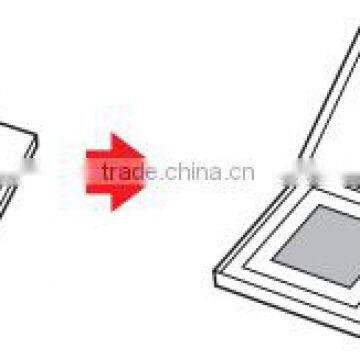

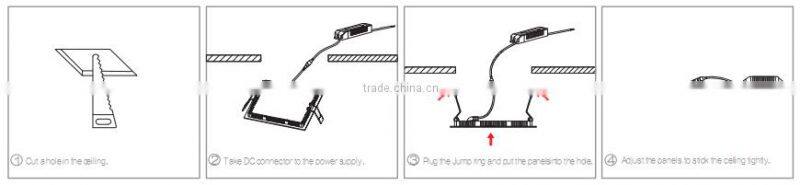

---Installation of 12W Emergency Aperture Low Profile LED Panel Fixture

Note:

1. Avoid dropping of LED downlight, otherwise downlight will be damaged;

2. Avoid fixing the downlight in highly humid environment, only for indoor use;

3. Forbid to install the downlight when power on. Before power on, please make sure that wiring is correct once installation finished;

4. Ensure stable installation and correct connection to avoid short-circuit damage to the downlight and causing fire hazard;

5. Please do not stare at the panel for a long time when it is working to protect your eyes;

6. Only professional personnel may dismantle and repair.

Test

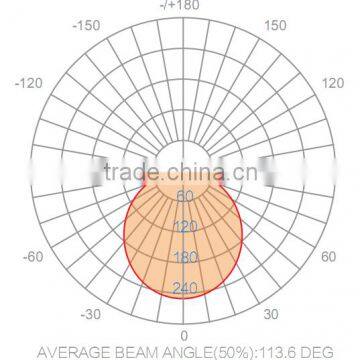

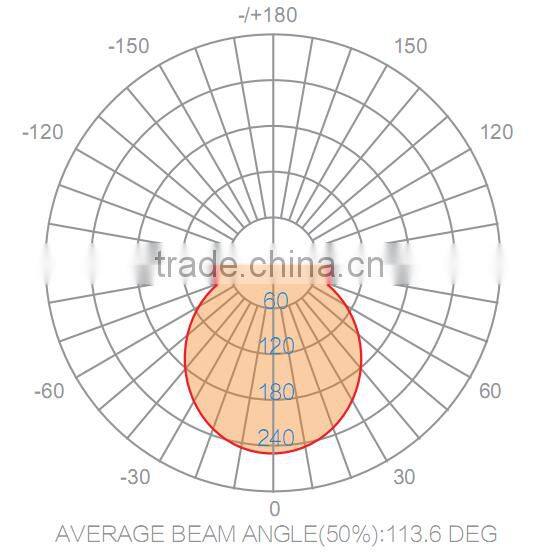

---Light distributor curve of 12W Emergency Aperture Low Profile LED Panel Fixture

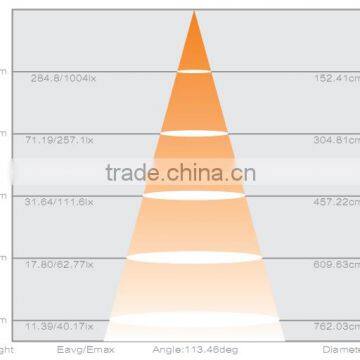

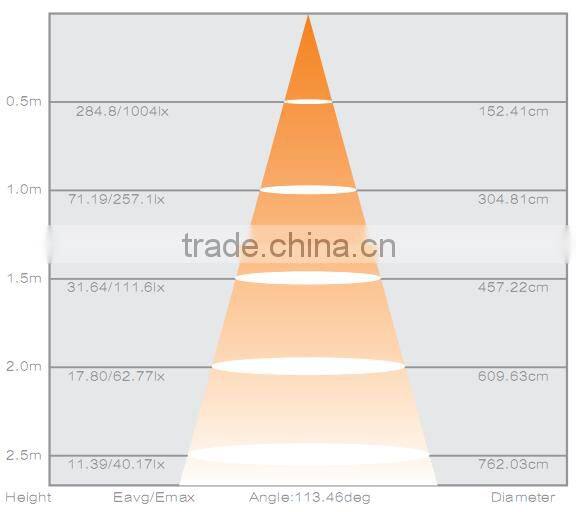

---lux measurement of 12W Emergency Aperture Low Profile LED Panel Fixture

Packaging & Shipping

Power	Inner box size	N.W/pc	G.W/pc	Carton Size	Qty/ctn	N.W/ctn	G.W/ctn
6W	22516025mm	0.24KG	0.32KG	345280243mm	20Pcs	4.8KG	6.8KG
9W	27621225mm	0.32KG	0.44KG	450280295mm	20Pcs	6.4KG	9.4KG
12W	27621225mm	0.4KG	0.52KG	450280295mm	20Pcs	8.0KG	11.2KG
12W	30523825mm	0.46KG	0.62KG	500280323mm	20Pcs	9.2KG	13.1KG
15W	30523825mm	0.54KG	0.68KG	500280323mm	20Pcs	10.8KG	14.4KG
18W	41234625mm	0.7KG	0.98KG	430280365mm	10Pcs	7.0KG	10.5KG

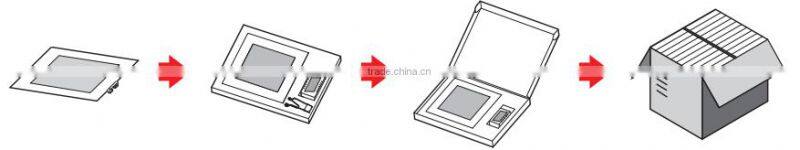

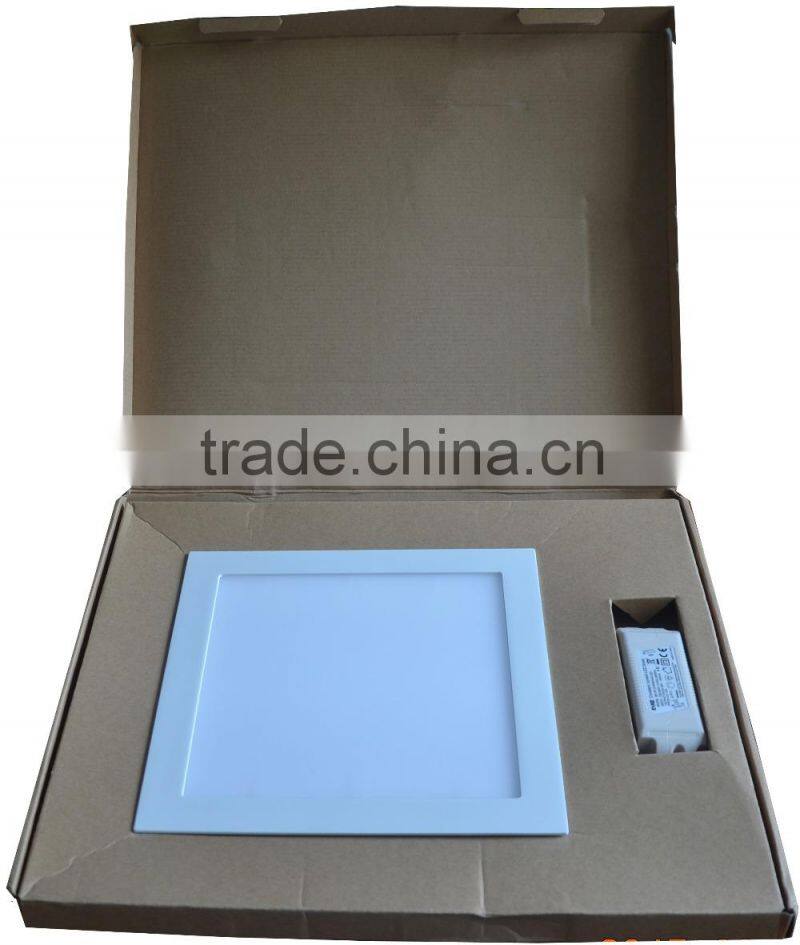

---Packing of 12W Emergency Aperture Low Profile LED Panel Fixture

Application:

1. Hotels;

2. Meeting rooms;

3. Factories and Offices;

4. Commercial lightings;

5. Residential or public facilities

FAQ

Q: How to get warranty?

A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.

Q: OEM design for packaging acceptable?

A: Yes, MOQ is 200pcs per order.

Q: What is MOQ?

A: 4pcs, because standard packing is 4pcs per carton.

Q: Sample policy?

A: clients need to pay for samples and shipping costs.

Q; Payment term?

A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.

For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.

For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.

Q: How to be our distributor?

A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.

Q: How to order?

A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
