Product Name: Singapore , 8inch 22W flush mount led downlight lite, White or Black finish, flush mount led downlight fitting
Model: ILT- CH02-22W

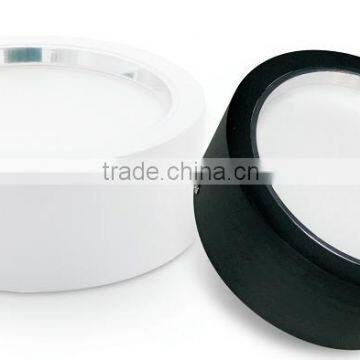

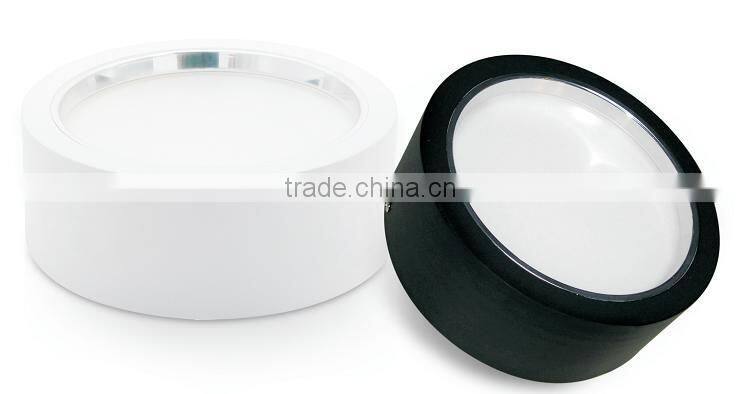

---white and black house image for 8inch 22W flush mount led downlight fitting
Main Features:
• Diffused soft lighting effect, suitable for commercial and residential applications.
• Using integrated heat-dissipation aluminum structure improve the heat dissipation greatly.
• Light weight, long life time and smart design.
• Surfaced mounted.
Specifications:
LED Chips: San’an SMD5630LEDs. 0.2W each(placed in the edge of the plate)
Power supply: built-in, constant current driving
Color rendering index: CRI>80
Power factor: PF>0.9
Color Temperature: 2800-3300K, 4000-4500K, 6000-6500K
Beam angle: 90-100degree
Color: Single color,bi-colour, RGB; (various colors available)
Waterproof: IP41
Input voltage: 110-240Vac
Working current: DC24-36V
Max Lumen efficiency: 85Lm/Watt
Warranty: 3Y
Product sizes:
Category |
Size |
Input power (±5%) |
LED Qty |
Flux |
||
A |
B |
C |
||||
8Inches |
Dia.240mm |
Dia.199mm |
Dia.94mm |
22W |
110pcs |
1600-1800Lm |

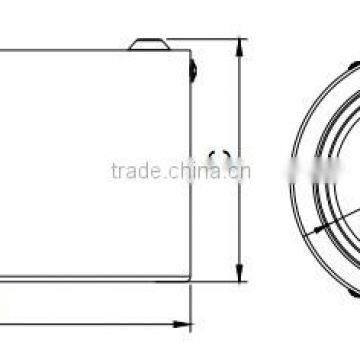

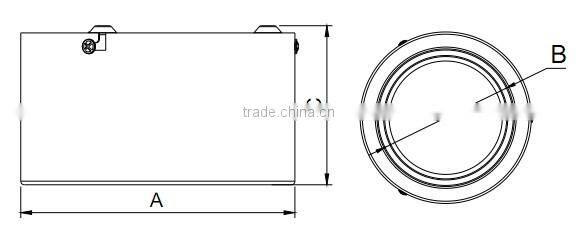

---physical sizes for 8inch 22W flush mount led downlight fitting
Mechanical characteristics:
1. Material: high quality aluminum and PMMA, with 90% light transmittance
2. Surface finish: white or black painting.
3. Working temperature: -20-40 degree Celsius at room temperature 25 degree Celsius.
4. Ambient temperature: -40 to 50 degrees Celsius.
Application:

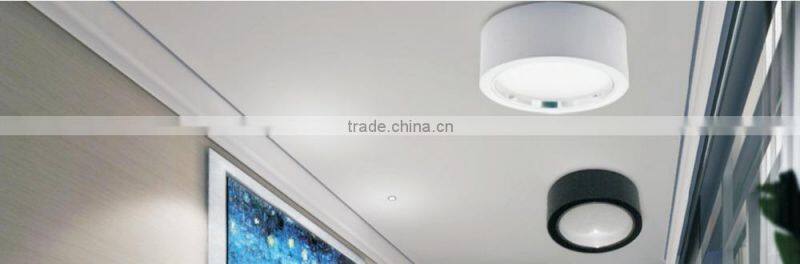

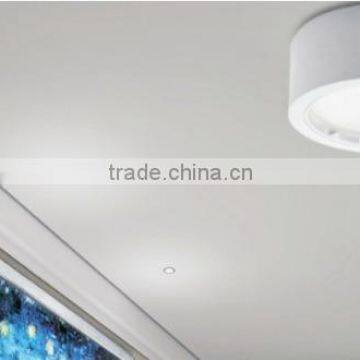

---application of 8inch 22W flush mount led downlight fitting

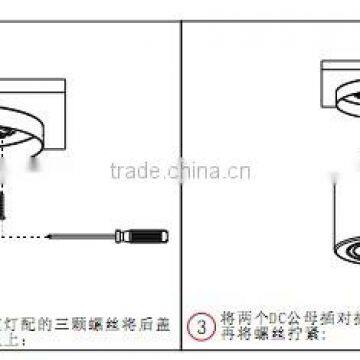

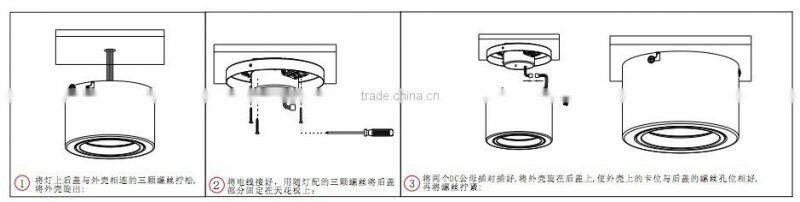

Installation steps:
Loosen the three screws that connecting the back cover and housing. Put out the housing.
Connect wires, and then fix the back cover on the ceiling surface using the three screws.
Connect the male and female connector, fix the housing with the back cover, make sure good positioning of the slot in housing and in back cover. And then fasten the screws.

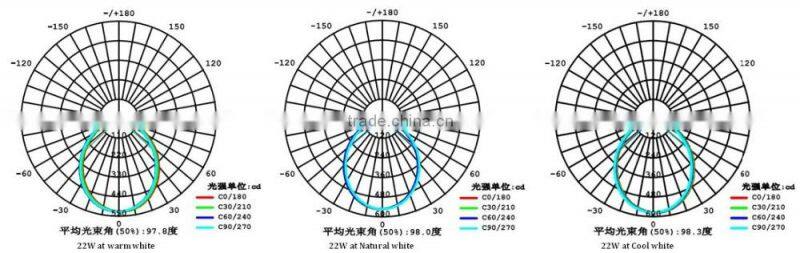

---light distributor curve of 8inch 22W flush mount led downlight fitting

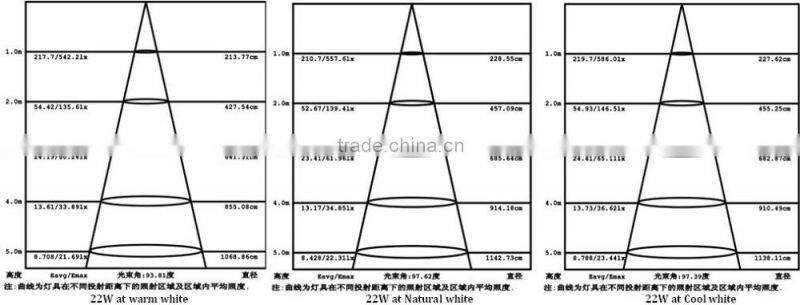

---lux measurement of 8inch 22W flush mount led downlight fitting

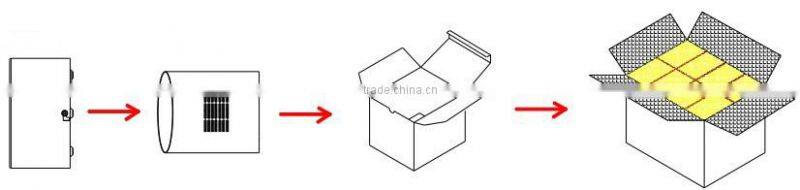

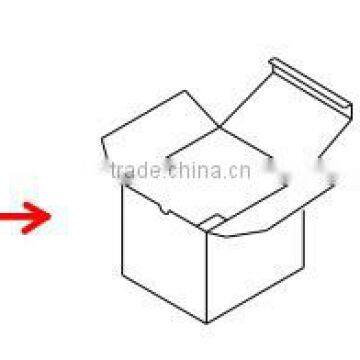

--Packing of 8inch 22W flush mount led downlight fitting
Product |
Net weight |
Gross weight/ctn |
Qty/ctn |
Inner box size |
Carton size |
8Inches/22W |
|
|
8pcs |
265*265x116mm |
550*550*252mm |
Q: How to get warranty?
A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.
Q: OEM design for packaging acceptable?
A: Yes, MOQ is 200pcs per order.
Q: What is MOQ?
A: 4pcs, because standard packing is 4pcs per carton.
Q: Sample policy?
A: clients need to pay for samples and shipping costs.
Q; Payment term?
A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.
For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.
For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.
Q: How to be our distributor?
A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.
Q: How to order?
A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
