Tinplate Seam Welding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Usage:
Metal Forming Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
shantou port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Automatic Grade
Automatic
Usage
Metal Forming Machine
Place of Origin
Guangdong, China
Brand Name
Zhengyi
Model Number
FHZ-AQ
Voltage
380V
Dimension(L*W*H)
2160*2170*1920mm
Weight
2200Kg
Certification
CE Certification
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

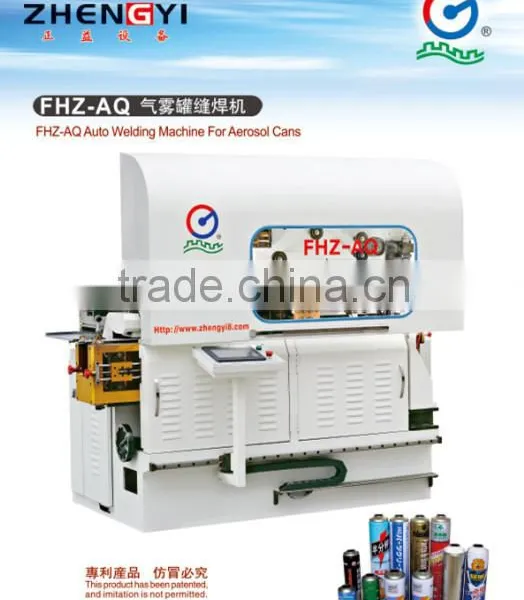

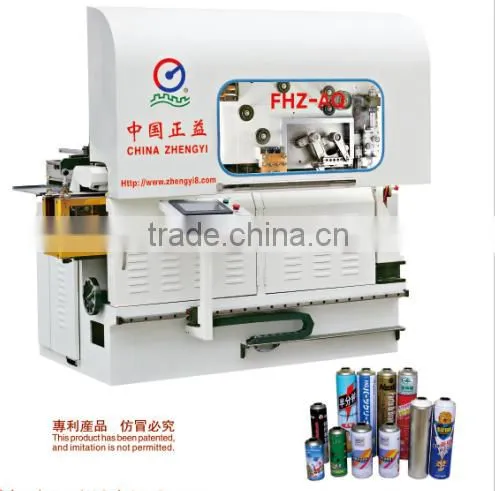

FHZ-AQ tinplate seam welding machine
main technical parameters:
| model: FHZ-AQ | |
| can diameter: Φ52.5-65mm. Φ65-99mm | sheet thickness:0.18-0.3mm |
| can height: 165-315mm 70-150mm | sheet hardness: T2-DR8 |
production rate:80-120cans/min 200-300cans/min |
copper wire diameter: Φ1.38mm |
| overlap:0.4mm | cooling water: 0.4Mpa; 12-18ºC; 20L/min |
| welding speed:37m/min | compressed air: 0.5-0.8Mpa |
| welding frequency:200-380Hz | installed capacity: 40KVA |
| welding point distance:0.5-0.9mm | welder weight: 2200Kg |
| material: tinplate | welder dimensions: 2160×2170×1920mm |
| sheet thickness:0.18-0.3mm |
The key components are made of ZrO2, which is artist, magneto-resistance, wear-resisting and accurate.
Adopt parallel double crank for pushing device, easy to adjust, stable and reliable.
The table of convey can is made of alumium alloy, which can help to dissipate heat and reduce power consumption.
Packaging & Shipping
mode of packaging: wooden case
