Home > Products > Vacuum forming machine > Food Container Vacuum Forming Machine plastic container making machine
Food Container Vacuum Forming Machine plastic container making machine
- 50 Set / Sets per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
-
cooling tower fill forming machine/ PVC pp fills machine
-
Desktop vacuum former 6090 mini vacuum forming machine plastic thermoforming machine for ABS sheet sign
-
Desktop vacuum former 6090 mini vacuum forming machine plastic thermoforming machine for ABS sheet sign
-
Plastic Seedling tray blister forming machine / Seed tray blister making machine
-
Hot selling automatic plastic dishes making tray seed thermoforming machine with factory price
-
best selling PS Foam Disposable Lunch Box Making Machine Fast Food Box Foaming Machine
Product Details
| Condition: | New | Type: | Thermoforming Machine | Plastic Type: | Other, PVC,PC,PP,PS,APET.PETG |
| Product Type: | Other, Blister;fast food box;cup | Automatic: | Yes | Place of Origin: | Guangdong, China |
| Brand Name: | JZmachinery | Model Number: | BF-700 | Voltage: | 380V 50HZ 3Phase |
| Power(W): | 15KW | Weight: | 1500KG | Dimension(L*W*H): | 4200*2300*1200mm |
| Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Vacuum Forming Machine
Principles of Vacuum Forming :
The technology of Vacuum Forming is a method for thermoforming. It is a method of using thermoplastic sheet
to make an opening of the housing of the article. Cut the plastic sheet into special size first, and then heat and soften the sheet through the huge pressure difference on both sides of the sheet or mechanical pressure, this can make the sheet attached with the surface of the mold after heating and deforming, next through cooling and shaping, the sheet can be vacuumed into various shapes of cover, plastic trays, bubble shell etc.
The technology of vacuum forming relied on vacuum force which can make the sheet achieve tensile deformation. Vacuum force is easy to be realized, grasped and controlled, so it is the earliest, a thermal forming method ,which is widely used currently.
Main Application:
This type machine can be used for plastic film for all kinds, such as toys, hardware, food, electronics, medicine, with a transparent film coating repacked in a board, form a seal packing.
This type machine can also produce plastic ceiling panel, cake boxes, lunch boxes, automobile materials and sanitary materials etc, which can be produced with three-dimensional relief pattern like 3D advertisement products.
Suitable material: PVC, PET, PP, PC, ABS, PS, EPS, HIPS, LDPE, HDPE and all thermoplastic sheet.
Introduction of Vacuum Forming Machine:
1.This machine is automatic. Just after placing plastic sheet onto the frame, then heating, forming, cooling, can be done automatically.
2.The control board is near the operator, so it can be operated easily, greatly improve the efficiency of production.
3.The far-infrared ceramic heating elements can control every single block heater temperature, more power-saving features, and reducing production cost.
4.The furnace is guided automatically.
5.The cooling system is independent by cold water.
6.This machine can form all kinds of blisters just replace mould.
Working Processes of Vacuum Forming Machine:
Carry materials manually→ clamp the materials → move the material into the oven,(while we can use blow function to keep material not drap down), after the material to soft →take the material to forming area → Bubble blow the material before vacuum (this is important function) → the vacuum will auto start→ open the fan to cold→ separate the model and material →take the material out
Main Features:
1). Independent temperature control system: Adopting dense, plate and special far infrared ceramic heating brick to assemblethe machine. It can reach exact temperature within 5 minutes. Steady temperature can assure high quality of product when use PVC,PET or other environmental materials. Also, it can save more power that traditional machine, using the time of cooling and demoulding after forming to heat the material , so it will not influence the forming speed.
2). Adopting solidstate temperature controller,which has independent, automatic voltage regulator function, when the external voltage changes in a range, it can ensure the stable temperature.
3). The electric furnace are equipped with cylinder to push, and it has electromagnetic valve buffer system, so this can make the electric furnace stable and durable
4). The machine has complete functions like“ delay vacuum, vacuum, vacuum with the wind, Spray, cooling wind”, all these can make it convenient and for workers to operate it accurately in actual production, and ensure the perfect vacuum forming process in a best time for high technology products.
5). Equipped with auto spray mold release agent, the machine has two functions: vibration demould
and mold blowing, so this can make it easy for formed sheet to release from the mold
6). Die die blowing function: die into the mold and blowing, make the film formation or summon up, then forming a more perfect product.
7). Precise positioning function of clip, ensure the material placed at the exact position.
8). The cooing fan is controlled by inverter, volume of the wind can be adjusted easily.
9). Quick die change function (Automatic Locking); Intelligent temperature control system, servo mechanical transmission system, imported electrical control system , etc

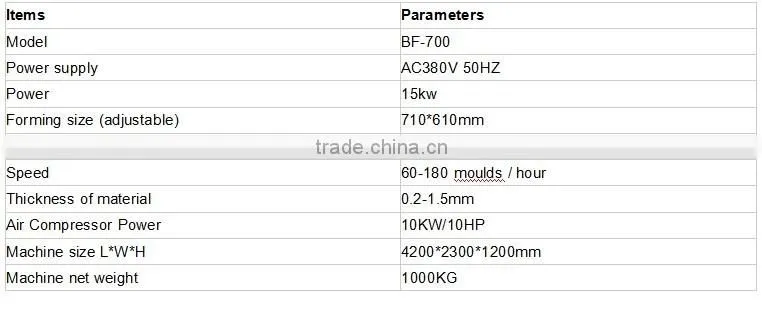

Main Parameter
Contact Us
- Shenzhen JZ Machinery Manu & Trade Co., Ltd.
- Contact nameSolo Yeh
- Phone0086-0755-23549153
- AddressNo. 14, Ainan Road, Longgang Street, Longgang Dist. Shenzhen,Guangdong
