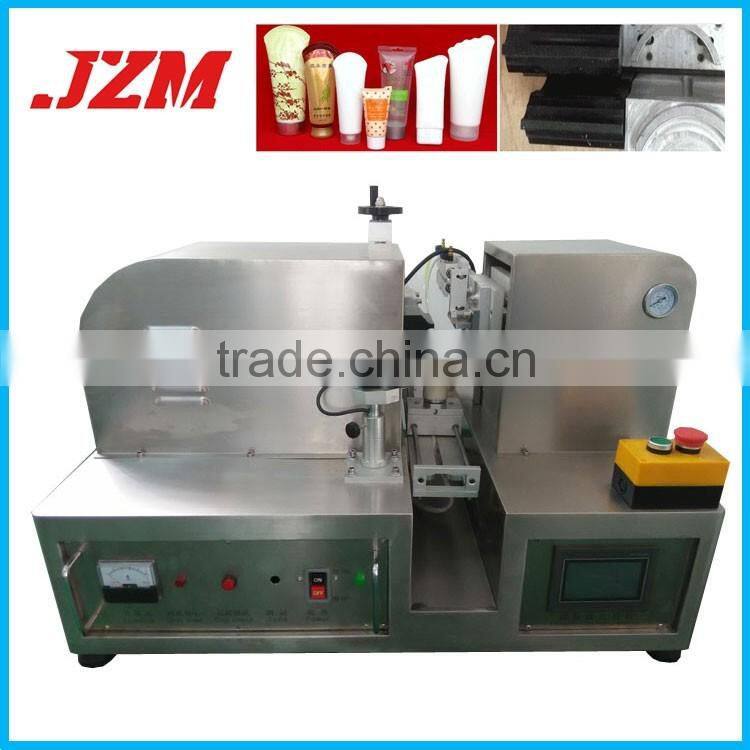

Ultrasonic Tube Sealing Machine Ultrasonic Plastics Welding Cosmetic Pharmacal Tubes
Technical Parameters:
Filling volume |
2~10ml,10~100ml,15~150ml,20~200ml,25~250ml (can be adjusted) |
Filling accuracy |
±0.5% |
Capacity |
20-25pcs/min |
Tube diameter |
10-50mm |
Tube length |
300mm(Max. length) |
Hopper volume |
30L(SUS316L) |
Power supply |
380V/220V(Optional) |
Air pressure |
0.4-0.7MPa |
Machine power |
2.0kw or 3.3kw |
Dimension |
1000*800*1600mm |
Weight:(Approx) |
280kg |

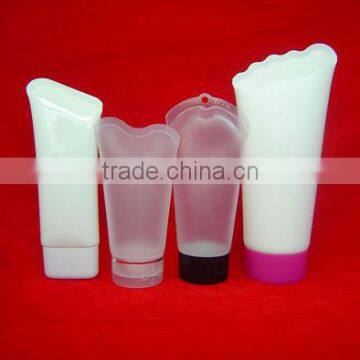

It can fill and seal the plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, medicine, adhesive and shoe polish, food industries.
1. Reasonable design, simple operation, suitable for many sets of molds and the replacement is convenient.
2. Suitable for kinds of plastic pipe.
3. Color alignment adopts PLC control system, color detection can be more accurate, service life will be longer
4. Adopts anti drip anti drawing filling system, suitable for liquid and paste.
5. Copper inside heating and external heating, to ensure that the closure of the end of a solid. Temperature, air flow adjustment convenient and quick, easy to change the mold, low cost
6. Date print and number batch, can be double-sided print.
7. End capping part adopts the ball type linear guide, with high transmission accuracy and high cutting efficiency.
8. With cutting recycling device, working process can be clean and environmentally friendly.
9. The parts contact with the filling material are made of SUS304 (can be SUS316L if you need), accord with GMP standard.
10. All parts are quick connection, easy to disassemble and clean.
11. To fill the thick product smoothly, heat preservation mixing barrel is optional.
12. Adopts high quality pneumatic components to ensure that the machine runs more stable.
Advantages:
1. Automatic filling ( no tube no filling)
2. Automatic heating
3. Automatic sealing and pressing the batch, dates
4. Automatic cutting the tail
5. Automatic exiting
