Automatic turntable high frequency plastic welding machine
- 300 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
- Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- automatic PP board edge sealing machine, coroplast sheet layer pads welding machine
- Huitai plastic capillary tube welding machine plastic welders pvc plastic hot plate welding machine bonding
- PP Membrane Hot Filter Plate Chamber Filter Press Plate and Frame Filter Plate welding machine
- Plastic PP Membrane Hot Chamber Filter Press vertical Frame Filter Plate welding machine plate-and-frame belt
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JZMachinery | Model Number: | HF-8K-ART |
Voltage: | 110V/220V/380V/Customize | Power: | 8KW | Frequency: | 27.12MHZ, 27.12MHZ |
Welding Area: | Mould Size | Dimensions: | 1790*1140*1500mm | Weight: | 1000KG |
Usage: | Plastic Welding | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

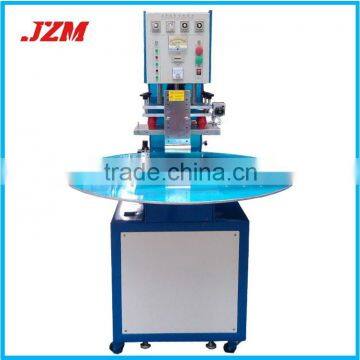

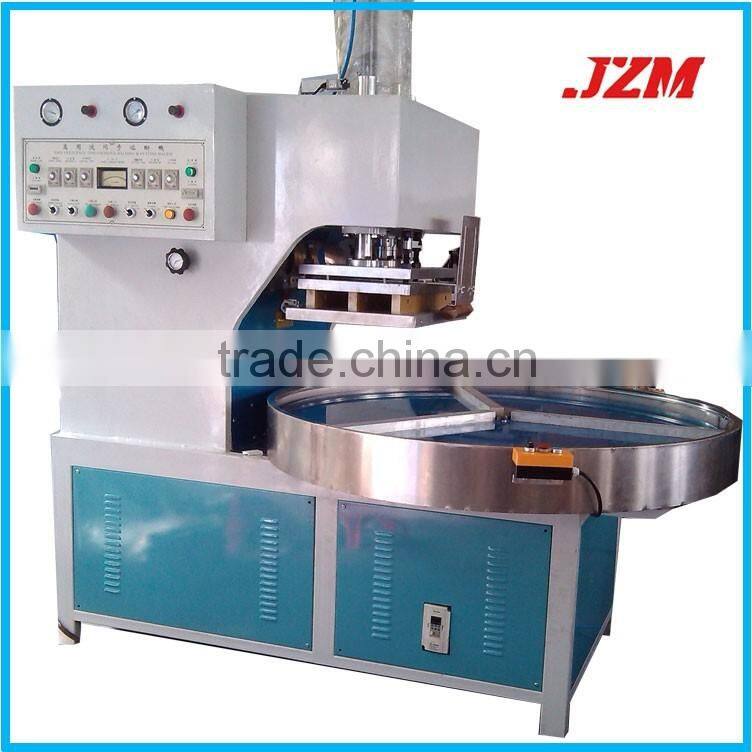

Automatic turntable high frequency plastic welding machine
1. The oil circuit design,silent treatment processing to avoid frequent start air compressor
2. Singlephase 220 v circuit design without affected by the production environment (industrial power 380 v), and civil lighting 220 v power supply
3. The new design strong rigidity small mobile convenient and flexible operation
4. Three station design with high efficiency
5. To adapt to the small blister paper card packaging products such as: toys stationery commodity crafts hardware battery voltage card packing and so on.
USES:
it is small and medium sized blister paper card packaging products such as: stationery, toys, daily necessities,
handicrafts, hardware, battery voltage card packaging ideal equipment.
Performance description:
1, the new design, small size, mobile convenience, flexible operation;
2, 3 Labour reasonable setting, improve efficiency, suitable for factory assembly line work, a high degree of automation;
3, automatic disk continuous rotation, greatly reduce the intensity of the operator flow operation.
Features:

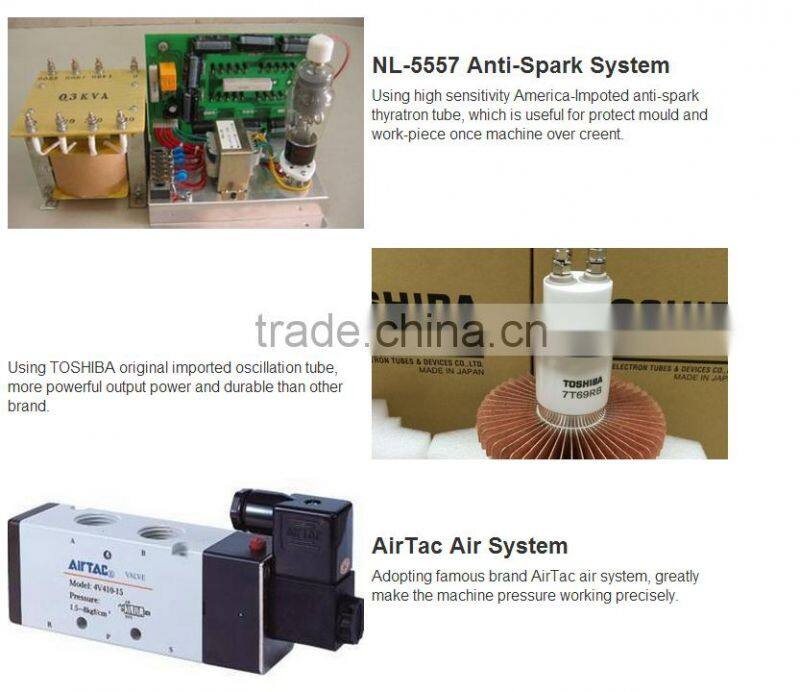

When electronic oscillator tube of high Q value, the output is stable and reliable;
When high sensitivity spark suppression circuit to prevent damage to the mold;
When rotating disc structure, three working mode, improve the production efficiency;
When ejection cylinder positioning device, rotary positioning accuracy;
High quality imported components assembly.
Scope of application:

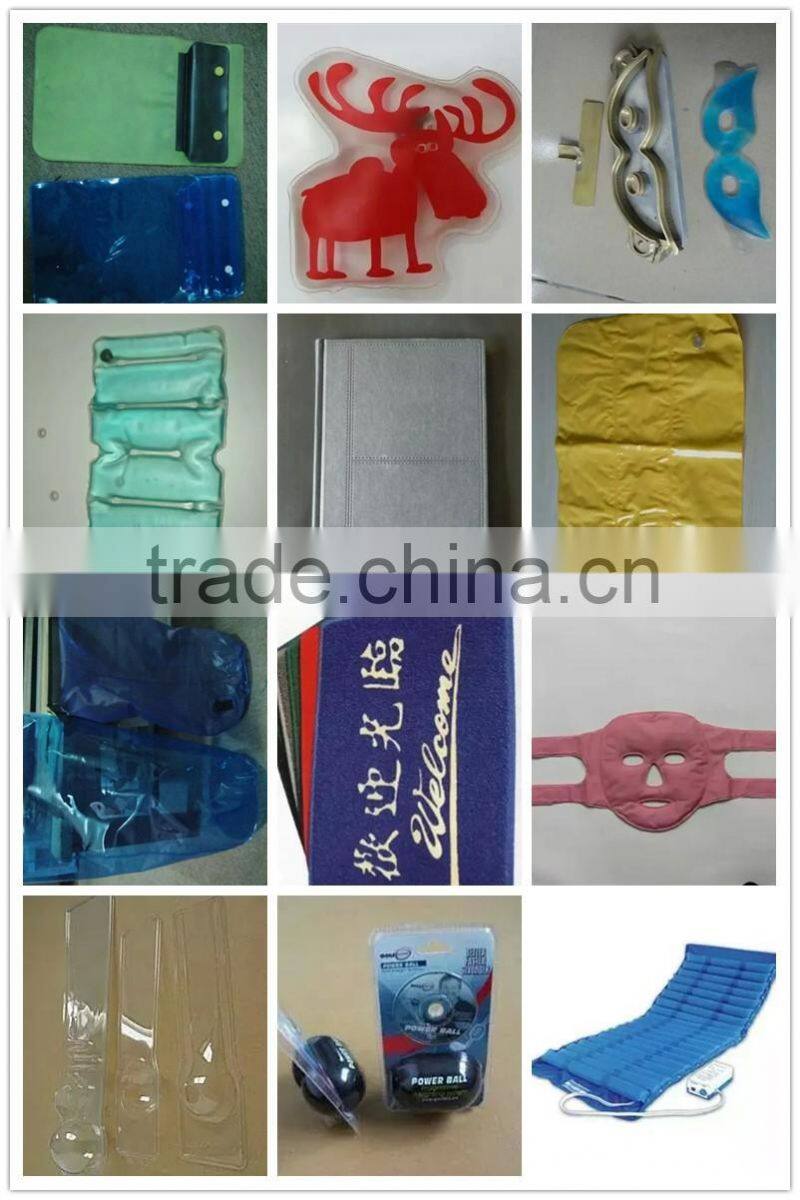

Battery packaging. Blister packaging. U disk, such as electronic product packaging, etc
Choose packing way for your product
1. Plastic + product + plastic welding together
2. Plastic + product + paper wedling together
3. Paper + Plastic and product + paper welding together
3.Technical specifications:
MODEL | HF-5K-CRB | HF-8K- CRB | HF-10K-CRB | HF-12K-CRB | HF-15K-CRB | ||
HIGH-FREQUENCY POWER | 5KW | 8KW | 10KW | 12KW | 15KW | ||
VIBRATIONAL TUBE | 7T85RB | 7T69RB | E3069RB | E3130RB | 8T85RB | ||
MAXPRESSURE | 5~18T | 10~18T | 10~20T | 20T | 25T | ||
GAP OF ELECTRODES | 170MM | ||||||
SIZE OF ACTIVE HORN | 200MM | ||||||
UPPER FLAT PLATE SIZE | 300*450mm | 350*450mm | 400*600mm | Customise | Customise | ||
LOWER FLAT PLATE SIZE | 1.4m DIA | 1.4m DIA | 1.4m DIA | Customise | Customise | ||
Voltage/POWER | 380V 50/60HZ | ||||||
FREQUENCY | 27.12MHz | 13.56MHz | |||||
ELETRONIC POWER | 8KVA | 15KVA | 18KVA | 20KVA | 25KVA | ||
PECTIFIER | SILICON DIODE | ||||||
SCALE OF TEMPRETURE | 0~200°C | ||||||
WORKSTATION | Customise | ||||||
MODE OF OPERATION | Electric sliding table | ||||||
WELDING TIME | 0~10S Adjustable |
