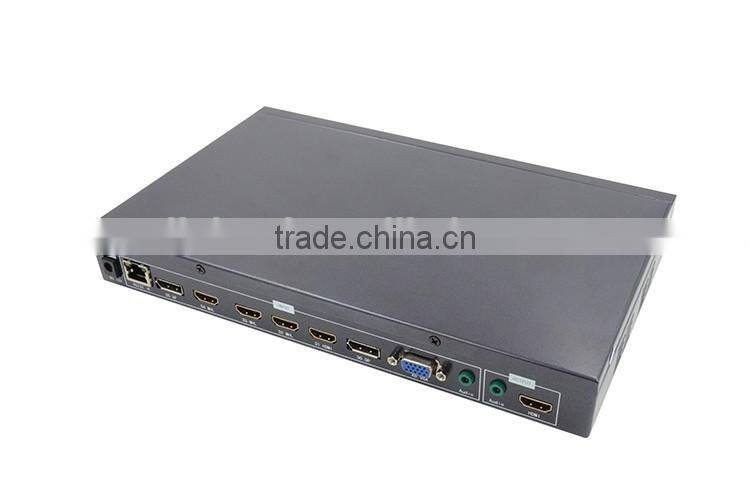

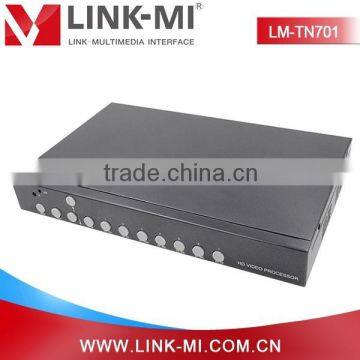

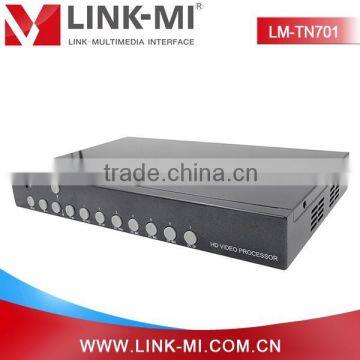

LM-TN701 VGA,DP,HDMI,MHL input HDMI+Audio output HDMI Video Switch Processor
Model:LM-TN701
Color:Black
Size:280x170x35mm
Keyword:HDMI Video Switch Processor
LM-TN701 HDMI Video Switch Processor
LM-TN701 HDMI Video Switch Processor is a high quality and high performance image upscaling rotary switch, use the high speed image processor chip. This product is main function is that can supports HDMI, DP, Mobile MHL and VGA signal input and switch any one of the input signals to HDMI output. This product supports video and audio synchronous switch of different signal formats, and setting the image 90 degree, 180 degree and 270 degree rotation.
[Specifications]
Input Signal | |
1x VGA |
HD15 port, supports 640x480@60Hz to 1920x1200@60Hz |
2x DP |
DisplayPort 1.1 |
4x HDMI |
HDMI 1.4 ( HDCP 1.3 ), three of 4 HDMI Input ports Compatible with MHL signal |
1x Audio |
3.5mm earphone port, supports L/R stereo audio, bound with VGA Video signal |
Output Signal | |
1x HDMI |
HDMI 1.4 ( HDCP 1.3 ), 1920x1080/60Hz, 1280x720/60Hz optional |
1x Audio |
3.5mm earphone port, supports L/R Stereo Audio |
Others | |
Control Mode |
Remote Controller, Chassis Buttons, RS232 Serial port |
Power Supply |
DC 12V |
Power Consumption |
10w |
Dimension ( LxWxH) |
280x170x35mm |
Net Weight |
1.1kg |
[Commodity Description]
Features:
1. Input signals
Supports 1x VGA, 2x DP ( DisplayPort ), 4x HDMI and 1x Audio ( bound with VGA Signal ) input, the highest output signal supports 1920x1200@60Hz and downward compatibility.
2. Mobile Phone MHL Input function
3x HDMI input ports supports MHL signal input, can connect with Mobile Phone via a MHL to HDMI cable, display the video in Mobile phone directly. But it need the mobile phone supports MHL function
3. Output Signal
1x HDMI and 1x Stereo Audio output, the output resolution supports 1280x720@60Hz and 1920x1080@60Hz optionally
4. Switch Function
Select one of different input signal source and switch to HDMI display, and realized video and audio synchronous switch via remote controller or chassis buttons or Control software
5. Upscaling Function
Different Resolution, different refresh rate and different signal format ( VGA, DP, HDMI and MHL ) can be upscaled and switch to fixed HDMI signal and fixed resolution output. The output resolution supports 1280x720@60Hz and 1920x1080@60Hz optionally.
6. Image Rotation Function
Supports image 90 degree, 180 degree and 270 degree rotation function via remote controller or chassis buttons. This function is widely use in specific place which need the image rotation.

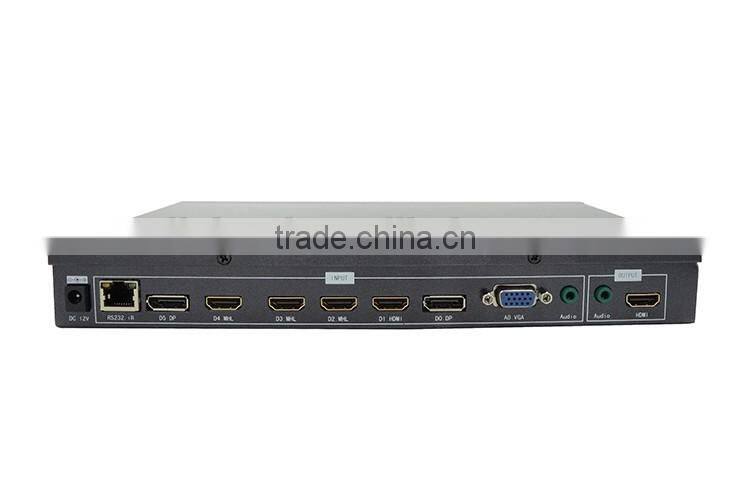

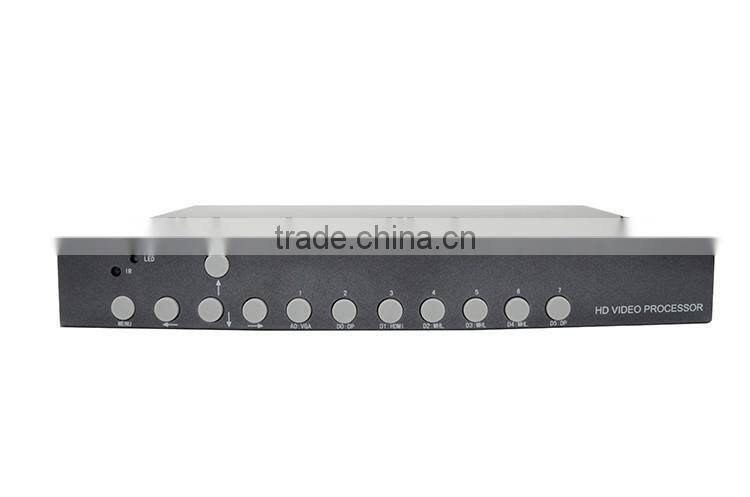

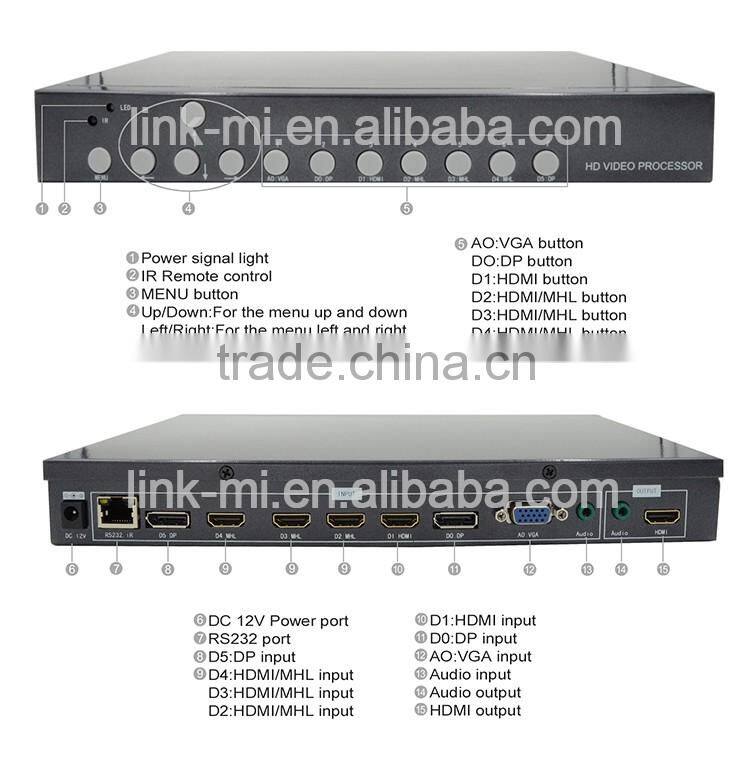

Panel Description:

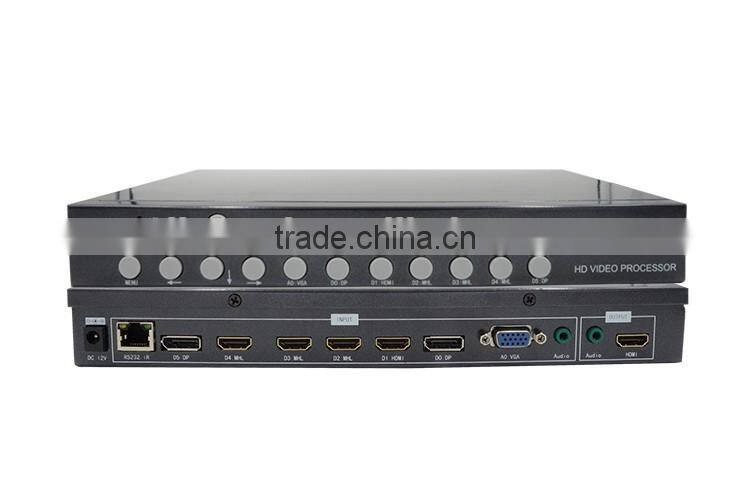

[Product Demonstration]
[Installation]

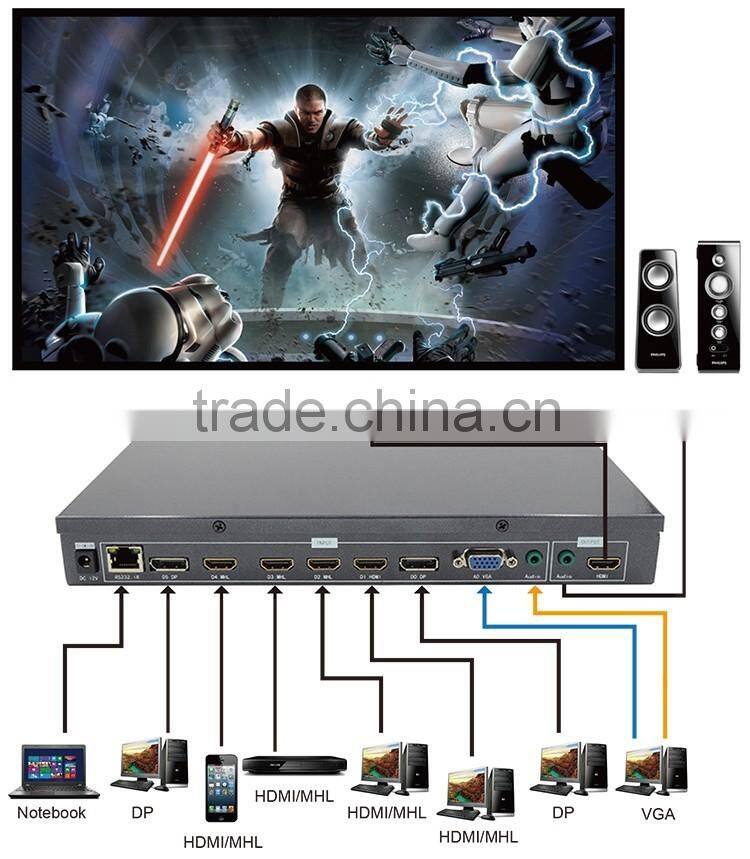

Connection Diagram:

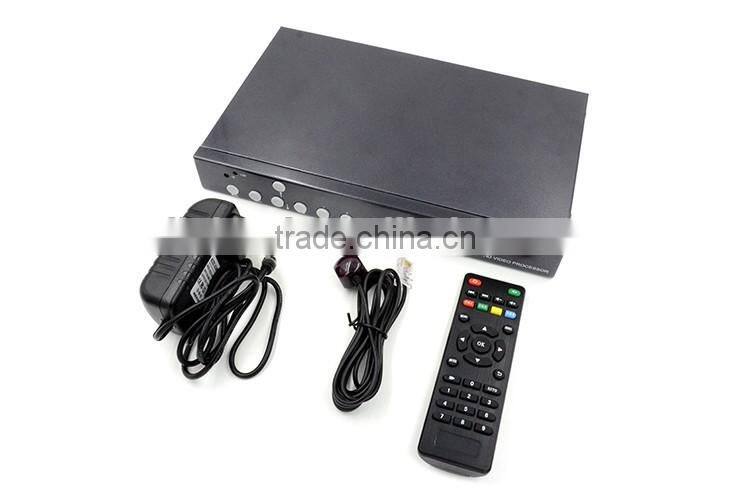

[Packing Contents]
1) 1pcs HD Video Upscaling Rotated Switch
2) 1pcs DC Power Adapter
3) 1pcs IR Cable
4) 1pcs Remote Controller
5) 1pcs User Manual
