Specification
HDMI Splitter 1x2
♦ Support Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0)
♦ HDCP Compliant
♦ Support 3D
LINK-MI LM-SP142E-HD4K2K Audio Video HDMI TV Splitter 1x2 Support Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0)
Introduction
LM-SP142E-HD4K2K HDMI Splitter 1x2, which simultaneously displays an Ultra HD source on up to two Ultra HD displays, supports resolutions up to Ultra HD 4Kx2K ( 3840x2160@60Hz YUV 4:2:0 ) and 1080p full HD, and supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output. This HDMI Splitter 1x2 is a high quality HDMI splitter, compliant HDCP, supports 3D Video.

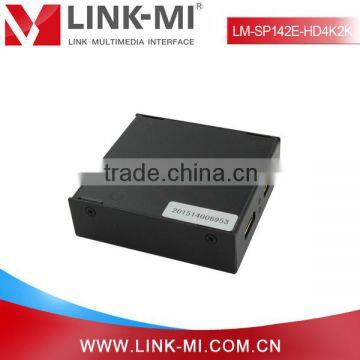

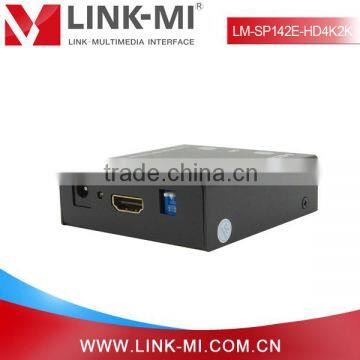

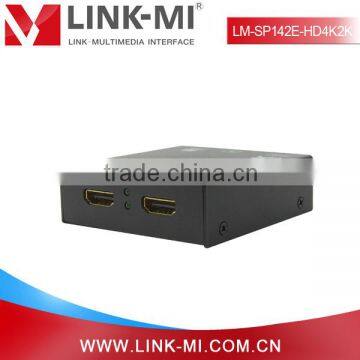

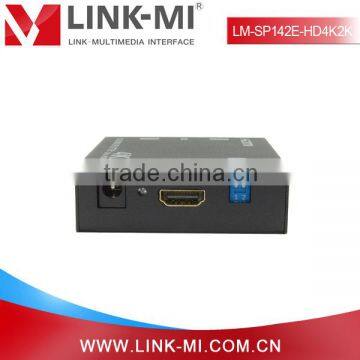

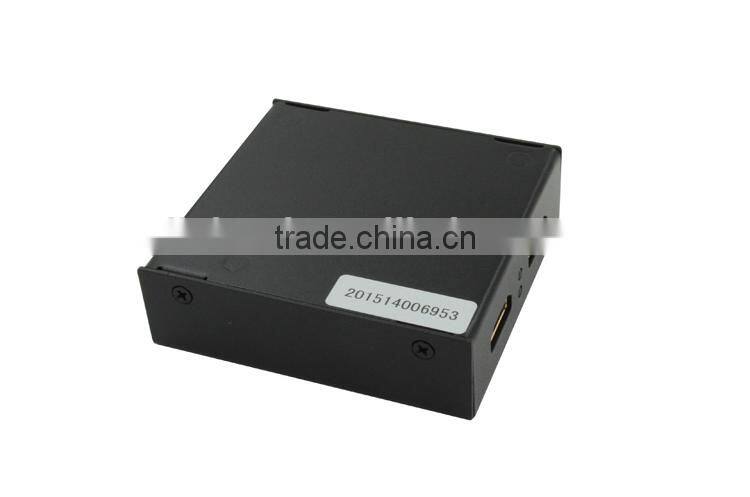

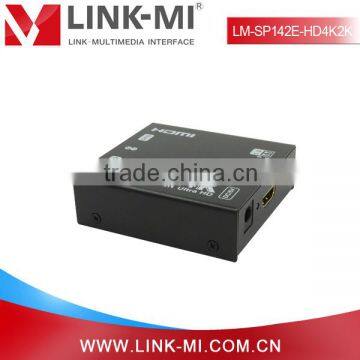

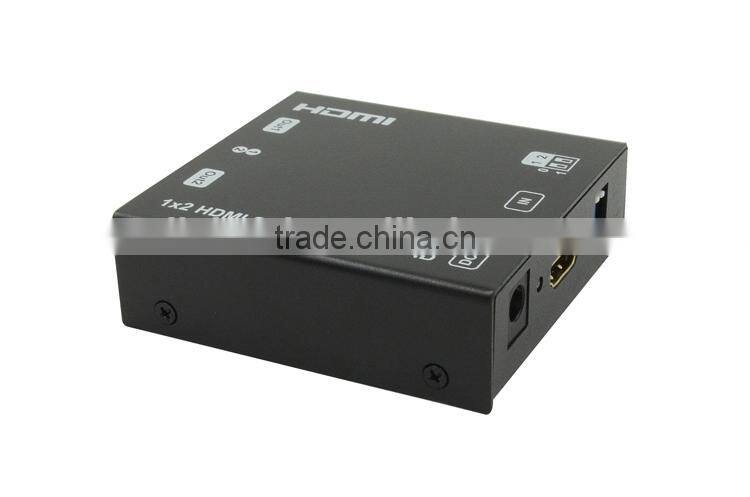

Product Picture
Model No.: LM-SP142E-HD4K2K
Product Type: HDMI Splitter 1x2
HDMI Splitter 1x2
Features
♦ Simultaneously displays an Ultra Hi-Def source on up to two Ultra HD displays.
♦ Supports resolutions up to Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0) and 1080p Full HD.
♦ Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
♦ Supports 36 bit Deep Color.
♦ Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio.
♦ Supports HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution.
♦ HDCP Compliant.
♦ Support 3D.
Specification
Operating Temperature Range |
-5 to +35℃(+23 to +95℉) |
Operating Humidity Range |
5 to 90%RH (No Condensation) |
Bandwidth frequency |
10.2Gbps |
Input ports |
1xHDMI(female) |
Output ports |
2xHDMI outputs(female) |
Resolution outputs |
up to 4Kx2K(3840x2160@60Hz YUV 4:2:0) |
Dimensions(LxWxH) |
75x68x25.2mm |
Power consumption |
1W(MAX) |
Transmission Distance |
15m(Maximum)over standard HDMI cable/26AWG |
Net Weight |
128g |

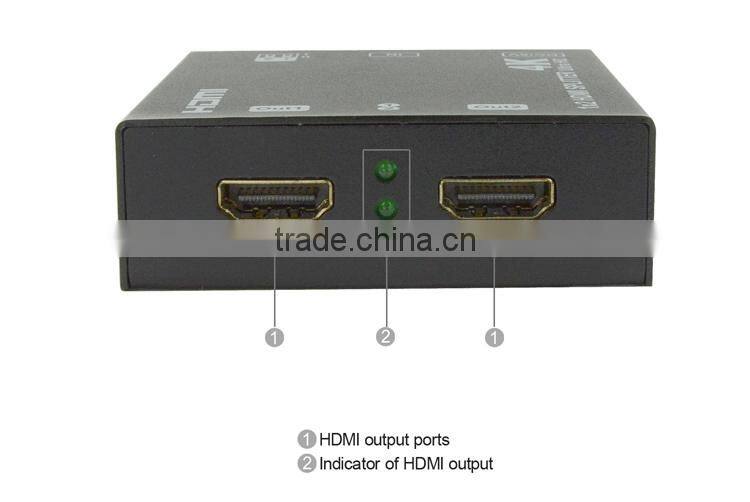

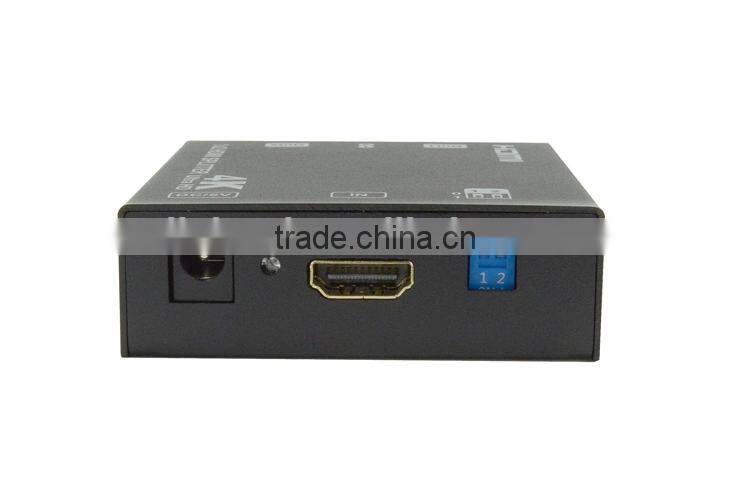

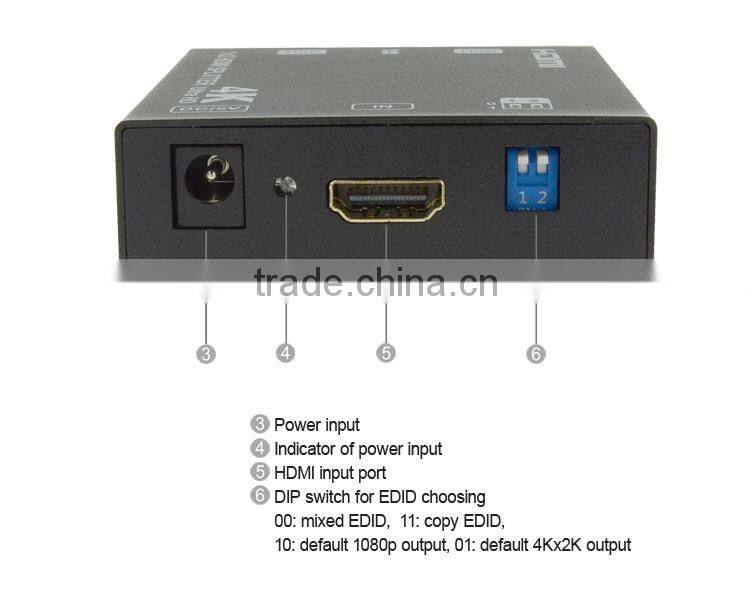

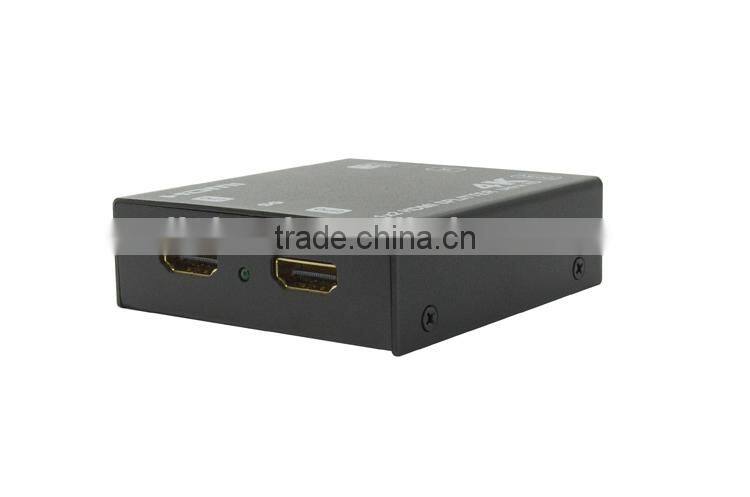

Panel Description
Connection and Operation
♦ Connect the HDMI input source to input port of HDMI splitter.
♦ Connect the HDMI splitter output ports to the displays.
♦ Power up splitter, source and displays.

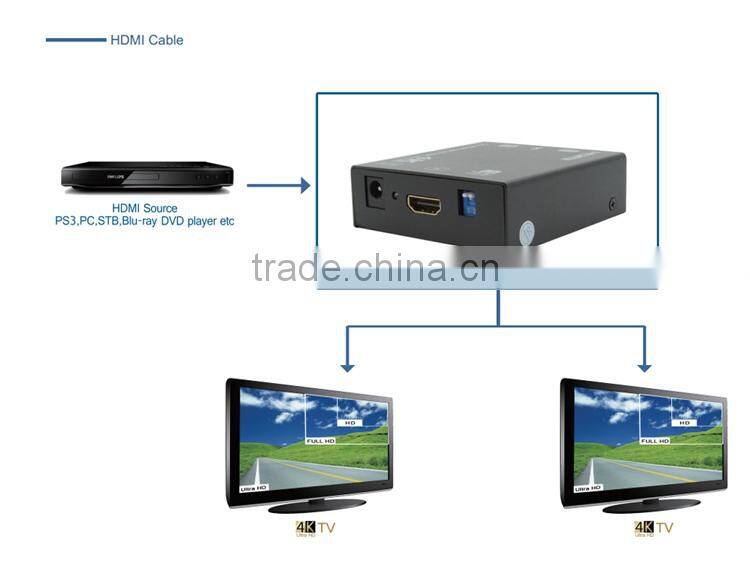

Wiring Diagram

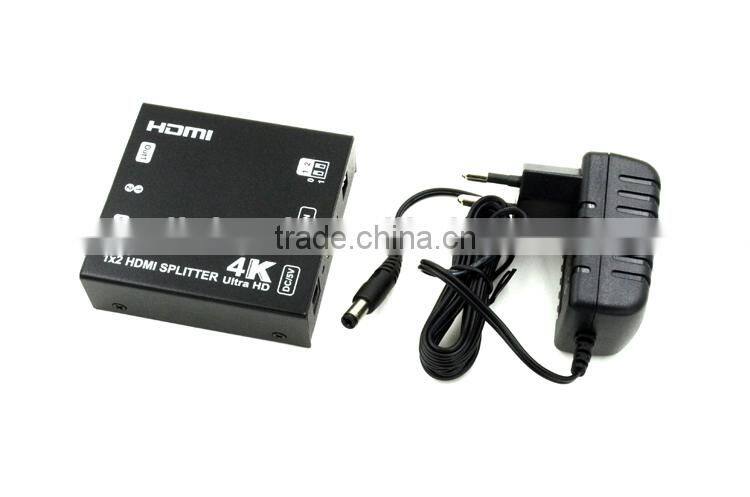

Packing Contents: HDMI Splitter 1x2
♦ Main Unit. HDMI Splitter 1x2
♦ 1pcs DC 5V/1A Power Adapter
♦ 1pcs User Manual
