Specification
VGA to Cat5 Extender
♦ Support Local and Remote VGA Monitors
♦ Support Resolutions to 1920x1440
♦ Available With Optional Stereo Audio
LINK-MI LM-102TR 200m Stereo Audio + VGA to Cat5 Extender Support Resolutions to 1920x1440
Introduction
LM-102TR VGA to Cat5 Extender transmits VGA video up to 656 feet (200m) away from a computer using CAT5/5e/6 cable. Each VGA to Cat5 Extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.

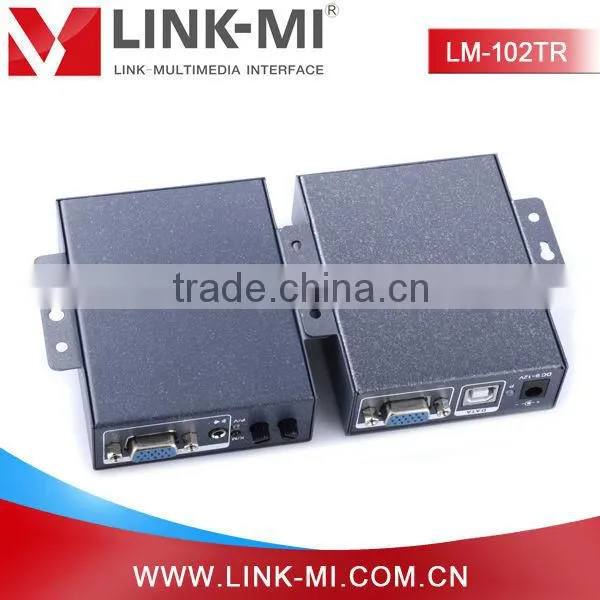

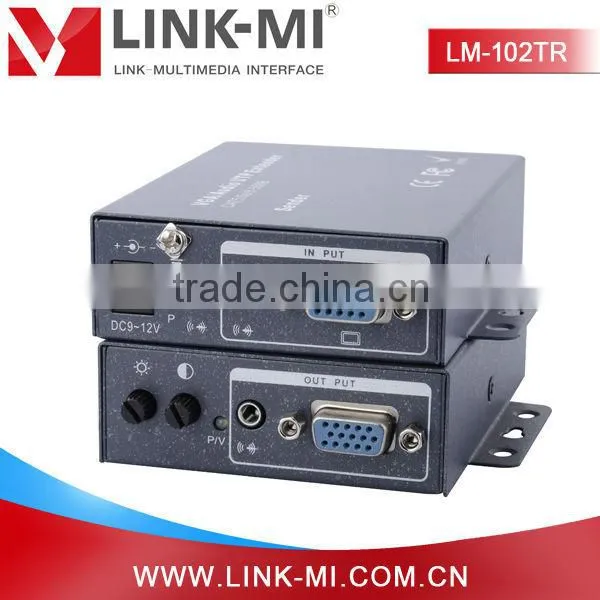

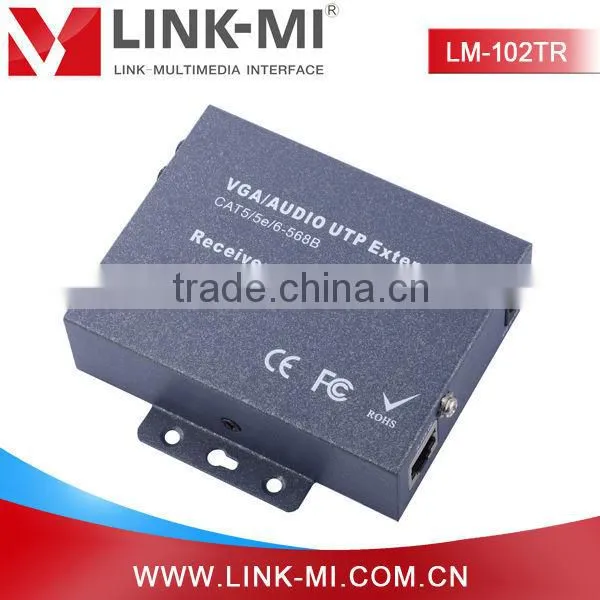

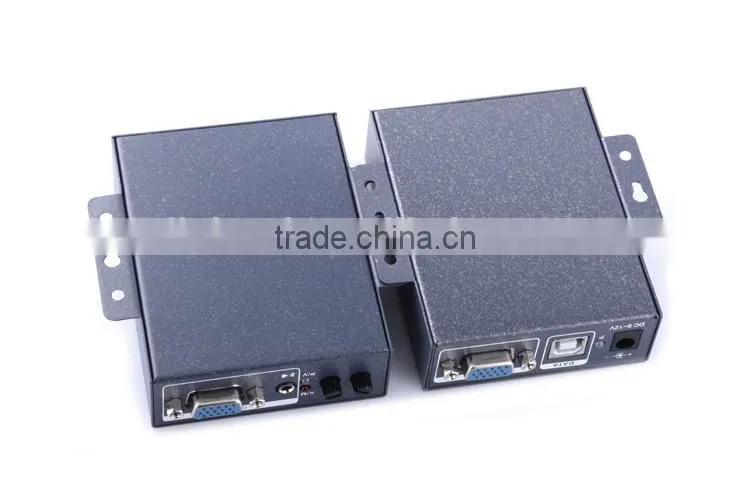

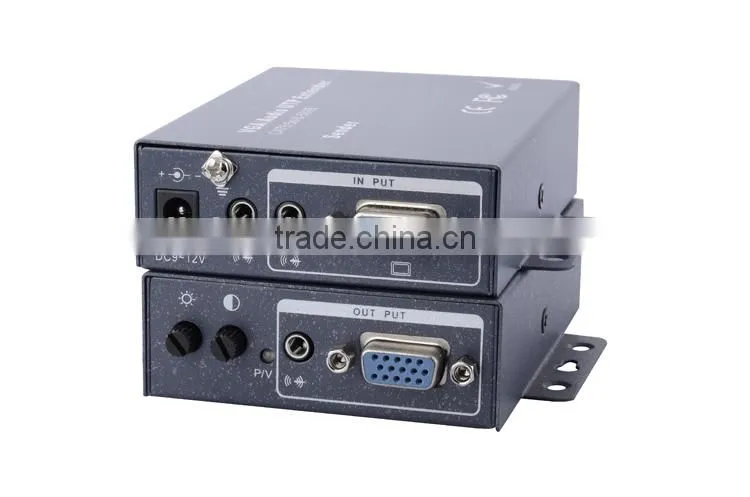

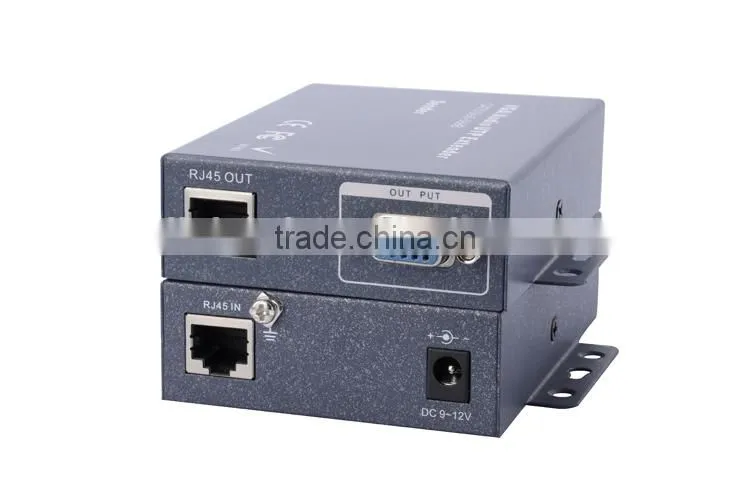

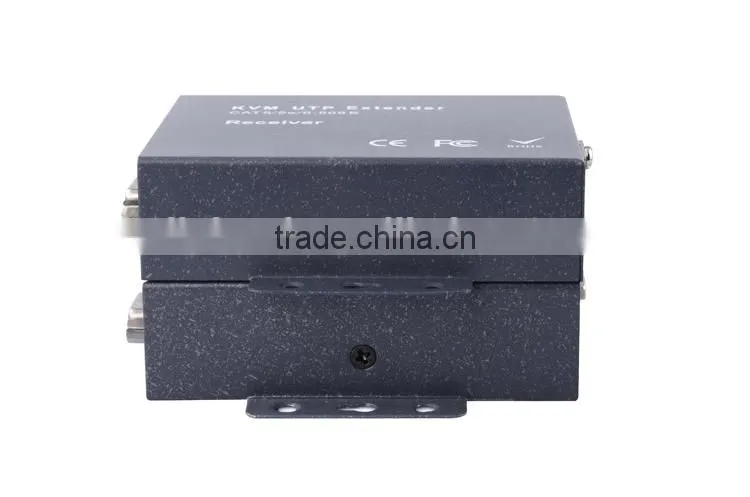

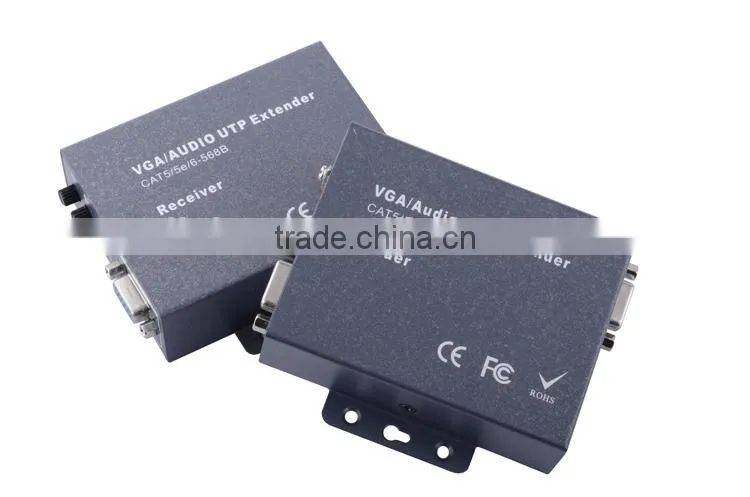

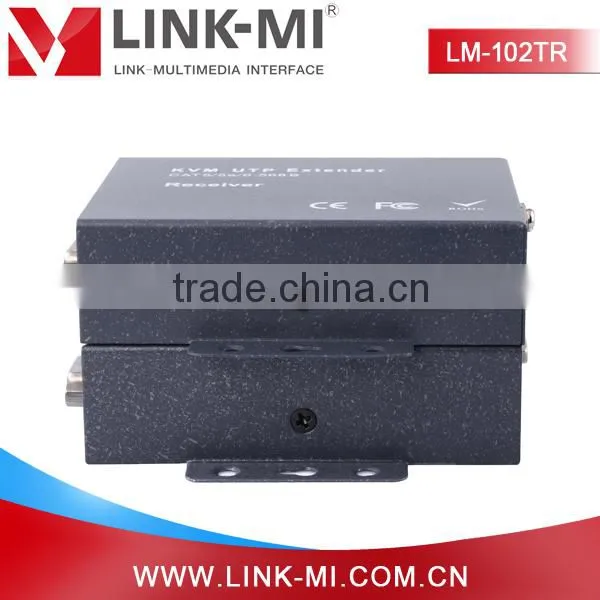

Product Picture
Model No.: LM-102TR
Product Type: VGA to Cat5 Extender
VGA to Cat5 Extender
Features
♦ Ideal solution for digital signage applications.
♦ Supports local and remote VGA monitors.
♦ Supports resolutions to 1920x1440.
♦ Sharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturer.
♦ Built-in lightning and ESD surge protection.
♦ Available with optional stereo audio.
♦ Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
♦ Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.
Specification
1. Local Unit
♦ Host Connection
♦ Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
♦ Male/Female 15-pin HD connector for computer connection.
♦ Optional stereo audio support - 3.5mm stereo plug.
♦ Local Access
♦ Crisp and clear 1920x1440 video resolution.
♦ Female 15-pin HD connector for local VGA monitor.
♦ Optional stereo audio support - 3.5mm stereo jack.
2. Remote Unit
♦ Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
♦ Female 15-pin HD connector.
♦ Optional 3.5mm stereo audio connection.
3. Video Quality Adjustment
♦ Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video extender.
4. Environmental
♦ Operating temperature: 32°F to 100°F (0°C to 38°C).
♦ Storage temperature: -20°F to 140°F (-30°C to 60°C).
♦ Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
5. Dimensions
♦ L*W*H (mm): 95*97*28mm(Sender)
95*97*28mm(Receiver)
♦ Weight(Kg): 0.9KG
6. Power
♦ 220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).
♦ Power Consumption: 6W (each - local and remote unit).
♦ Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.

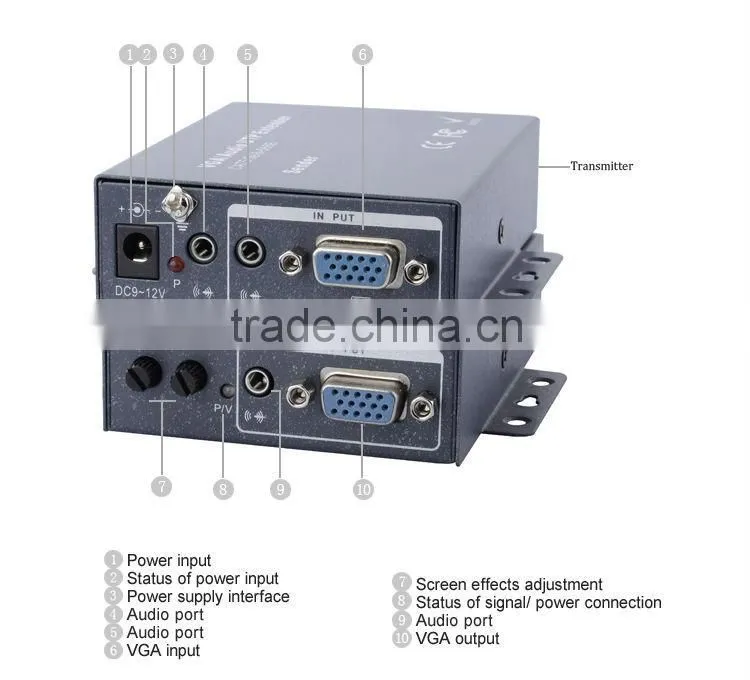

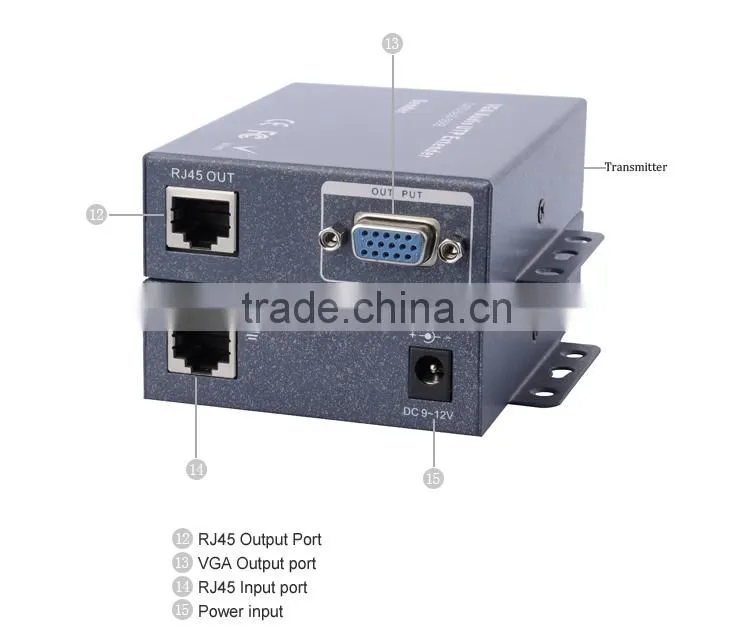

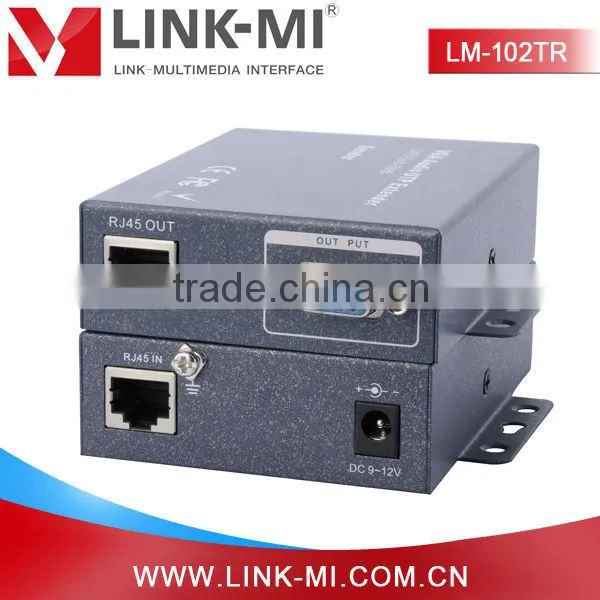

Panel Description

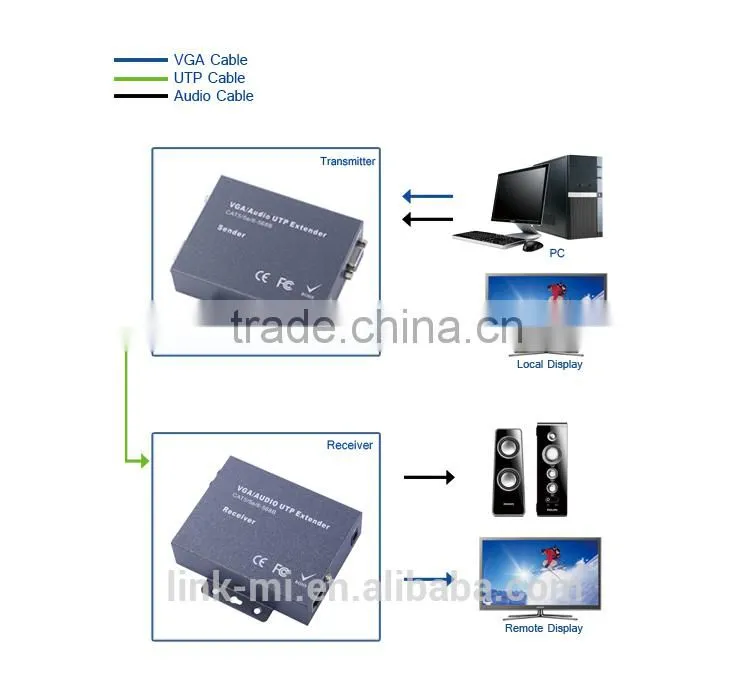

Wiring Diagram
Packing Contents: VGA to Cat5 Extender
♦ Main Unit. 1 set VGA to Cat5 Extender
♦ 2pcs Power Adapter
♦ 1pcs User Manual
