Specification
HDMI Video Wall Controller
♦ All-format Signal Capture--- Including Composite Video, VGA, DVI, HDMI etc
♦ Various Control Port---RS232, Remote Controller
LINK-MI LM-TV04 1080p 2x2 HDMI Video Wall Controller Controlled By Remote, Button and RS232
Introduction
The HDMI Video Wall Controller is designed to be a truly in/out modular video wall processor, to capture, AD convert, route, distribute all-format signal to multiple video wall, including LCD TV, DID, DLP, Plasma, etc., while maintaining a true digital signal.
The HDMI Video Wall Controller with many different video interfaces, include HDMI, VGA, AV, and it is can decode video(like RMVB),audio(like MP3), Photo(like JPG) by itself through USB interface. each video with audio can be switched together. output HDMI interface, resolution is 1080P or 720P or 1024*768, choosed by user.
The HDMI Video Wall Controller can be controlled by remote, button and RS232.

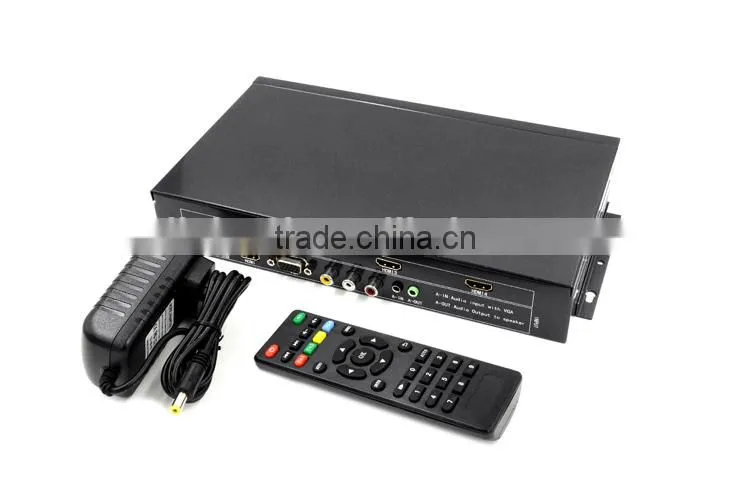

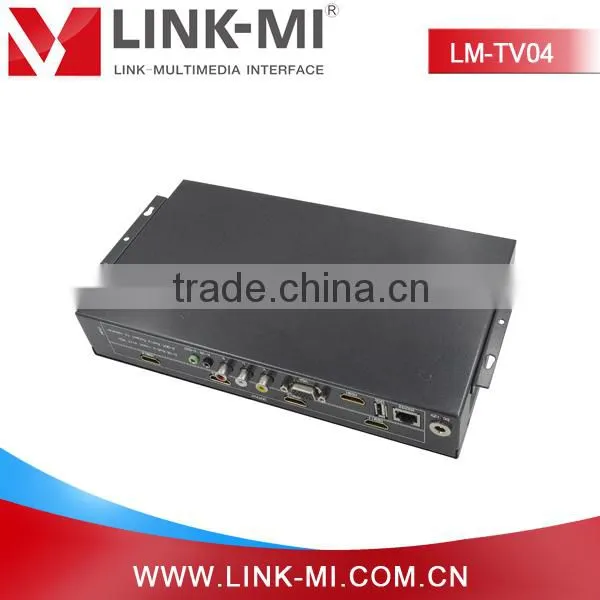

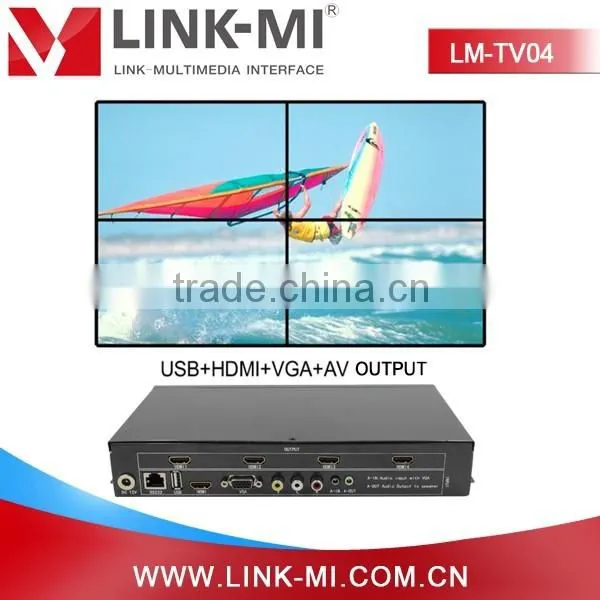

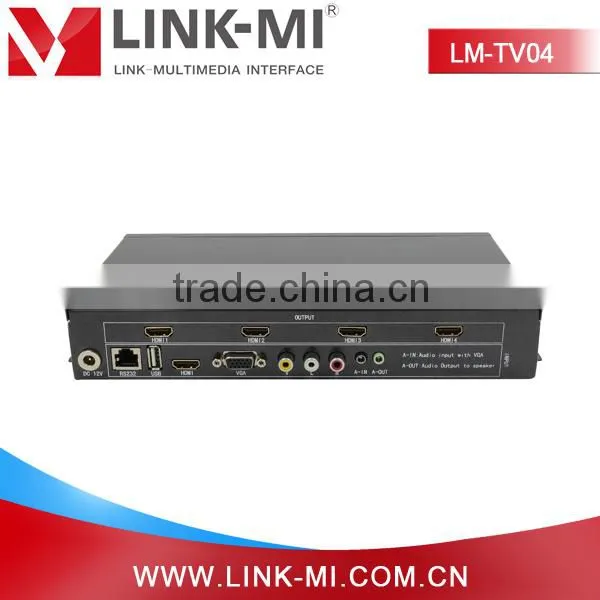

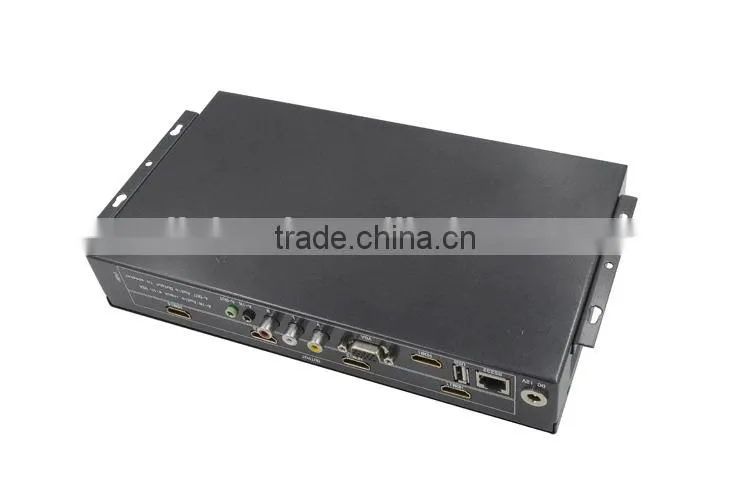

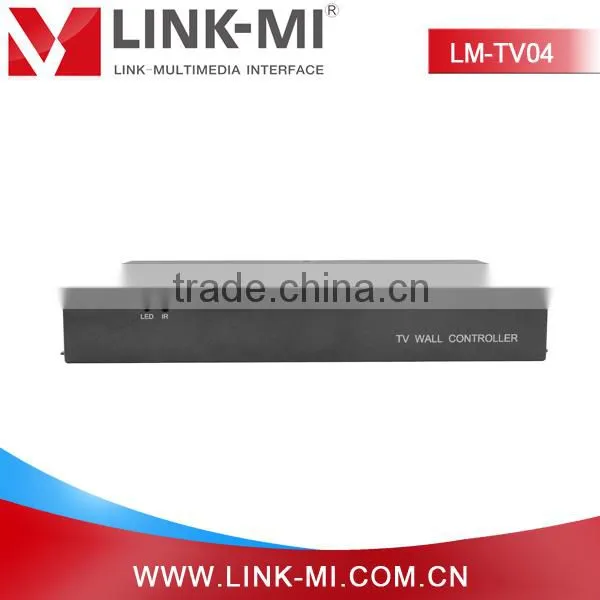

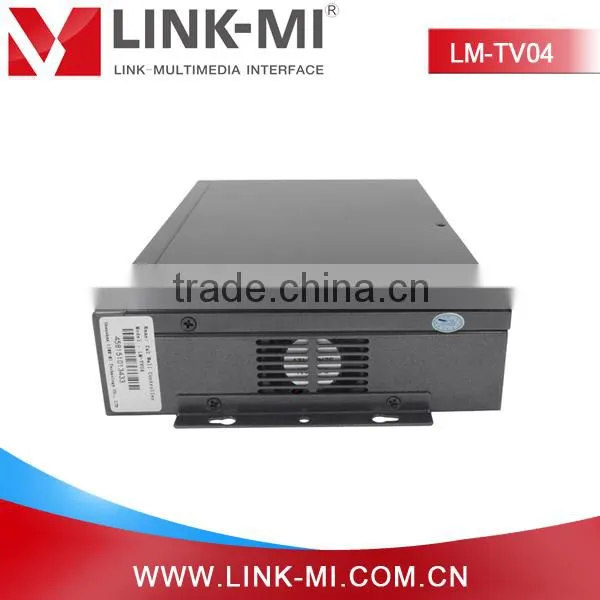

Product Picture
Model No.: LM-TV04
Product Type: HDMI Video Wall Controller
HDMI Video Wall Controller
Features
♦ Truly in/out modular design--- truly concept modular, in/out boards
♦ All-format signal capture--- including composite video, VGA, DVI, HDMI etc
♦ Fully-digital processing channel inside --- Built-in conversion for analog/digital, interlaced/progressive, resolution, aspect ratio and refresh rate.
♦ Individually supports 180° rotation
♦ Easy maintenance--- suitable for all environment
♦ Various control port---RS232, remote controller
♦ HDCP compliant---HDMI 1.3, HDCP protection
Specification
Name |
Spec |
HDMI input |
|
Interface |
HDMI (support HDCP1.3 and DVI1.0) |
Resolution |
Up to 1920*1080@60Hz |
Color |
24bit,16.77M |
VGA input |
|
Interface |
DB15 |
Resolution |
800*600 to 1920*1080@60Hz |
AV input |
|
Interface |
RCA |
Identification |
Auto |
Standard |
PAL,NTSC |
USB |
|
Video |
RM, RMVB, AVI, WMV, MOV, MP4, FLV, MPG, DAT, MPEG and so on, resolution up to 1080P |
Audio |
MP3, WMA, FLAC and so on |
Picture |
JPG, BMP, PNG |
Text |
TXT |
Audio in |
Fit for VGA video |
Audio output |
Fit for output video |
HDMI output |
1024*768@60hz,720P@60Hz,1080P@60Hz |
Controller |
Remote,button,RS232 |
Power |
Input: AC 100-240V |
Dimension |
260mm(L)x150mm(W)x44mm(H) |
Panel Description

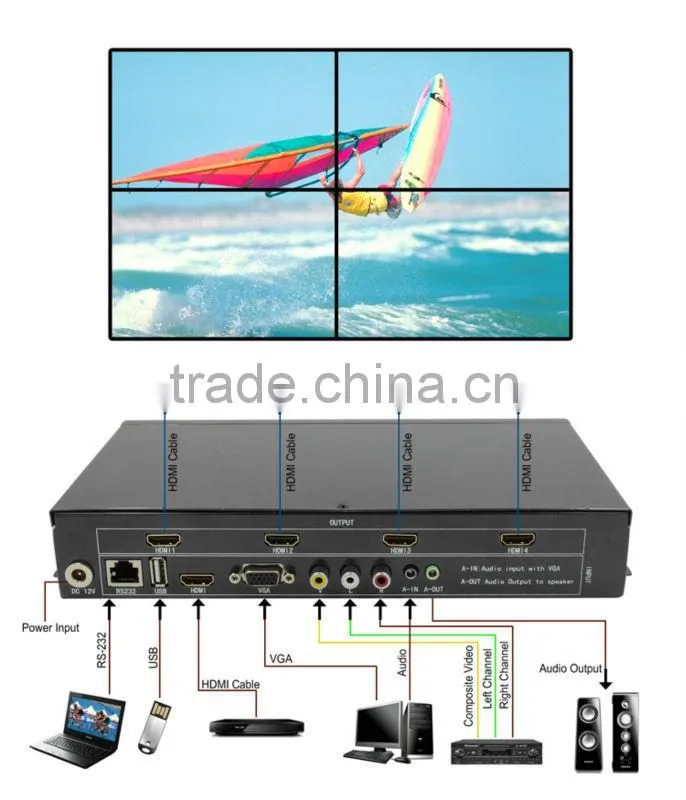

Wiring Diagram

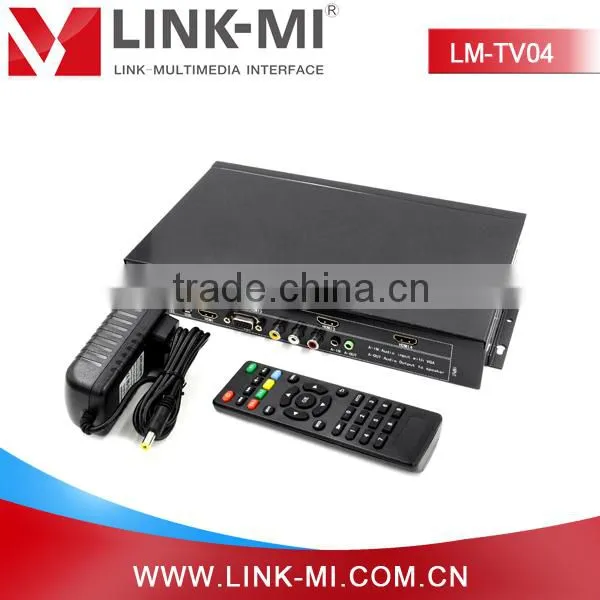

Packing Contents: HDMI Video Wall Controller
♦ Main Unit. 1pcs HDMI Video Wall Controller
♦ 1pcs Power Adapter
♦ 1pcs Remote Controller
♦ 1pcs User Manual
