LM-HT208 Bottom Price 60m HDMI Extender Cat5e x1
Model:LM-HT208
Color:Black
Size:94.5x71x26mm
Keyword:60m HDMI Extender
LM-HT208 60m HDMI Extender
The LM-HT208 60m HDMI Extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p and IR signal transmission. The HDMI extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
[Specifications]
Parameter |
Description |
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
Maximum pixel clock |
165MHz |
|
Maximum data rate |
6.75Gbps |
|
Resolution |
1920X1080@60Hz |
|
Connector |
HDMI-A |
|
Impedance |
100Ω |
|
IR |
Interface |
3.5mm Stereo Audio Jack |
Signal direction |
Reverse direction |
|
Signal type |
Digital |
|
IR frequency |
20k-60kHz |
|
UTP |
Interface |
RJ45 |
Transmission distance |
CAT6-60m |
|
Other |
Power supply |
The power adapter: DC 5V/1A |
Power dissipation |
MAX 3W |
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
Humidity |
Operating: 5% ~ 90% |
|
Dimension |
94.5*71*26mm |
|
[Commodity Description]
Features:
1. Transmits HDMI video and audio signals up to 60m over a single CAT6 cable;
2. Support video resolution up to 1920*1080@60Hz, 3D signal;
3. Support reverse direction IR signal transmission;
4. Support copy EDID function, can auto-match many kind display device;
5. Compliance with HDMI 1.3 and HDCP 1.2 standard;
6. High compatibility, can auto-match source and display device;
7. Built-in automatic adjustment system, make the image smooth, clear and stable;
8. Built-in ESD protection system;
9. Simple to install, plug and play
Panel Description:

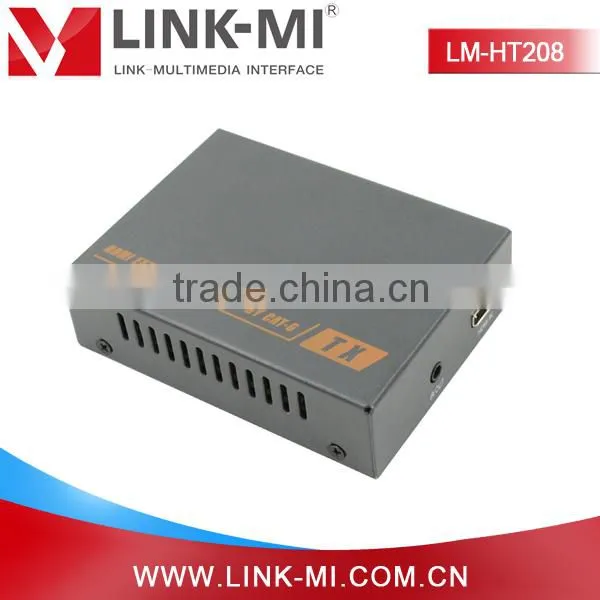

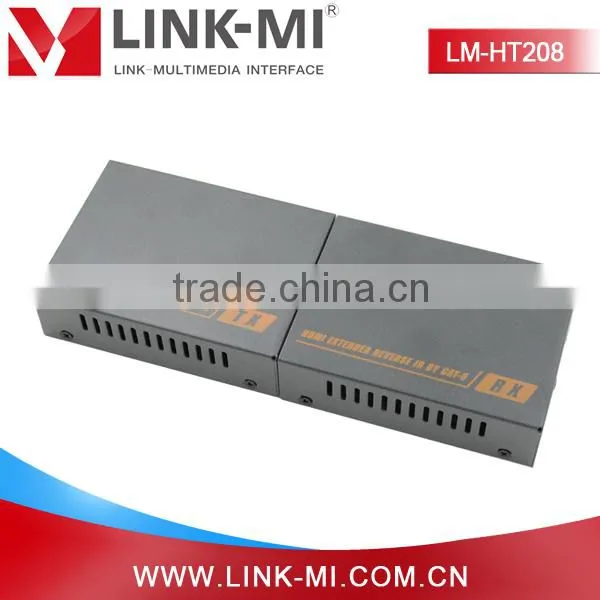

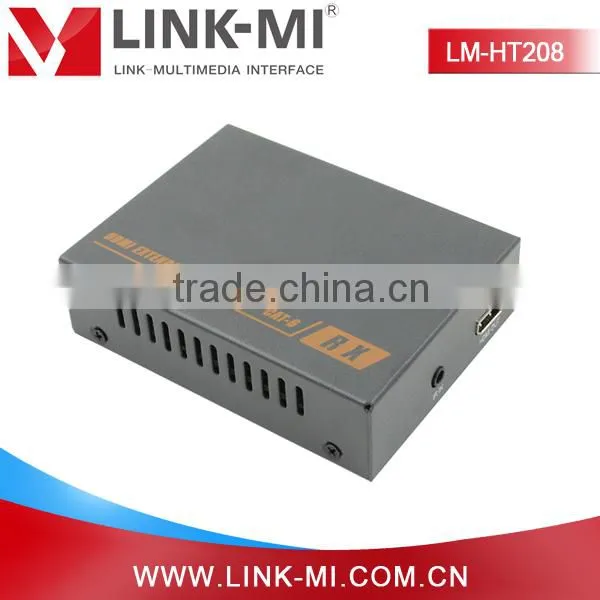

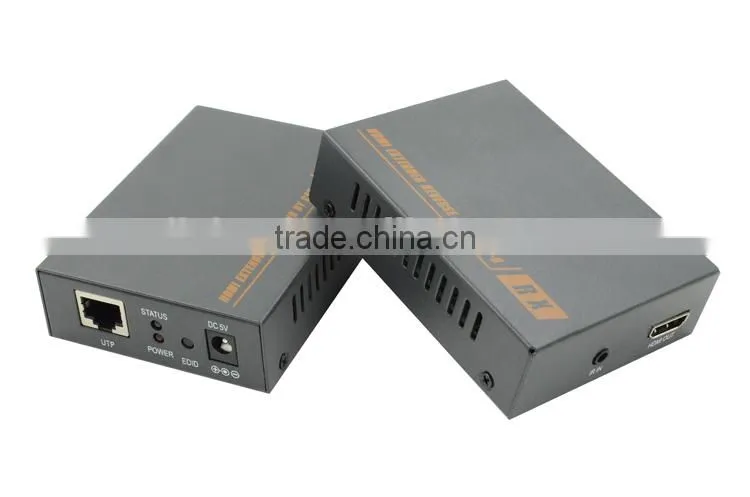

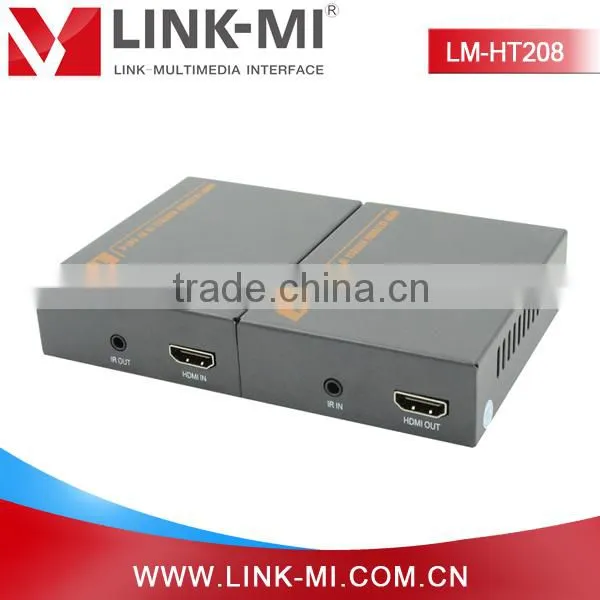

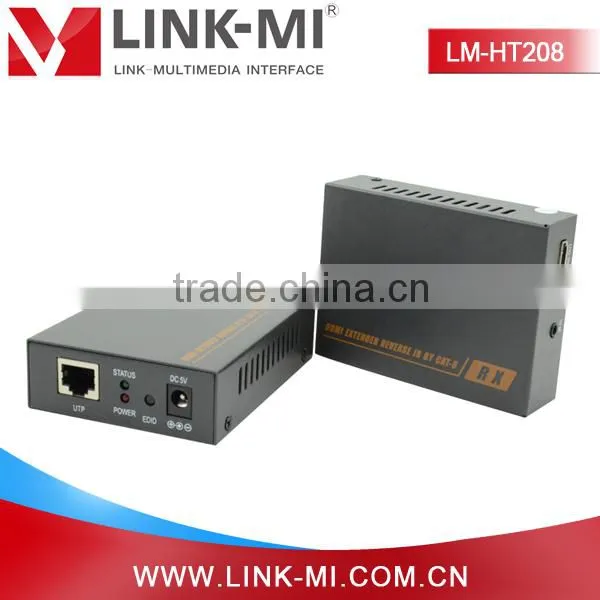

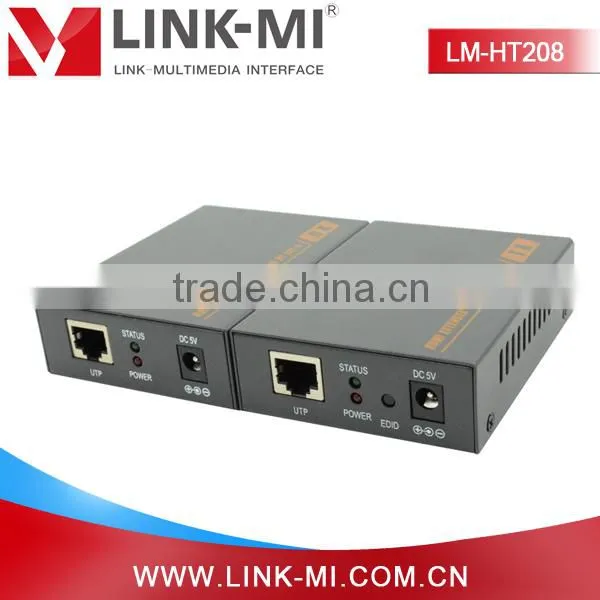

[Product Demonstration]
[Installation]
Connection and Operation:
1) Connect the HDMI input source (such as HD-DVD, PS3, STB etc. ) to transmitter.
2) Connect a CAT6 cable from UTP port of transmitter to UTP port of receiver
3) Connect the HDMI sink(such as HD-LCD, HD-DLP)to receiver,
4) Connect the transmitter UTP port to the receiver UTP port using a single CAT6 cable.
5) Connect the IR TX UNIT into transmitter IR TX; Connect the IR RX UNIT into receiver IR RX.
6) Power on Transmitter and Receiver.
Connection Diagram:
[Packing Contents]
1) 1 set 60m HDMI Extender ( 1 TX and 1 RX )
2) 2pcs DC 5V Power Adapter
3) 1pcs Mini USB Cable
4) 1pcs User's Manual
