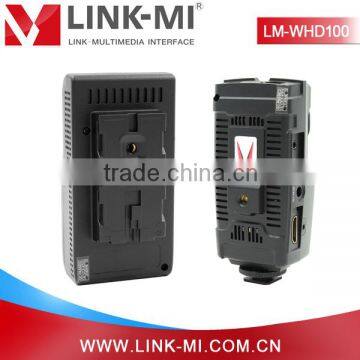

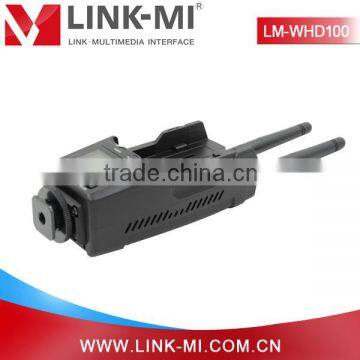

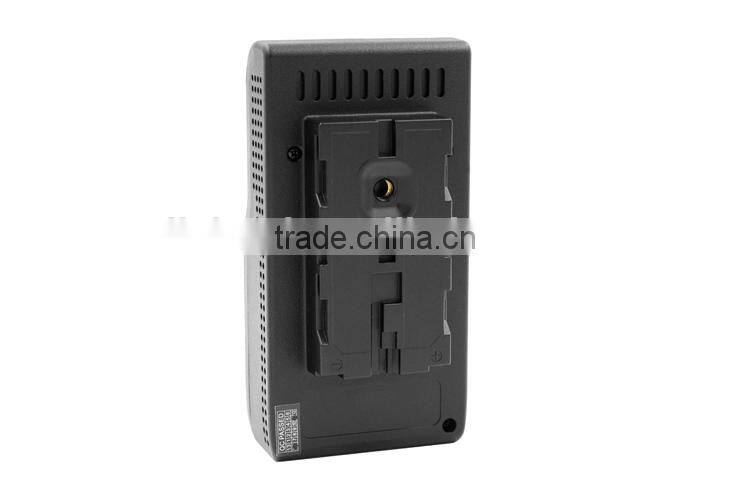

LM-WHD100 WHDI Stick Black Wireless Transmission System, HDMI Input & Output, 1080p
Model:LM-WHD100
color:Black
Keyword:Wireless HDMI Transmitter and Receiver
LM-WHD100 Wireless HDMI Transmitter and Receiver
LM-WHD100 Wireless HDMI Transmitter and Receiver is 5GHz wireless HD Video transmission, includes one transmitter and one receiver, supports 1080p/60Hz, 3D format, with HDMI input and output, can transmit HDMI signal 1080p up to 330ft/100m, very low latency <30ms, is easy to use, no software is required.
[Specifications]
Item |
Transmitter |
Receiver |
Transmission Frequency |
5GHz |
|
Video Communication |
MIMO |
|
Modulation Mode |
OFDM |
|
Frequency Stability |
±20PPM |
|
Bandwidth |
40MHz |
|
Standard Protocol |
HDMI 1.3, HDCP 1.2 |
|
Video Format |
480p, 576p, 1080i, 1080p |
|
Audio Format |
PCM,DTS-HD, Dolby TrueHD |
|
Transmission Power ( EIRP) |
14dBm |
15dBm |
Receiving Sensitivity |
≤-70dBm |
|
System Latency |
≤30ms |
|
Antenna |
2 External Antennas |
Built-in Antennas |
Transmission Distance |
Up to 80m(260ft), line of sight |
|
Installation |
Hot-shoe, 1/4 inch screw nut |
|
Power Supply |
1. DC ( 6-17V); 2 Li-Battery ( SONY NP-F570/750/950) |
|
Power Consumption |
5.5W |
5W |
Dimensions ( L*W*H) |
118x54x43mm |
118x60x45mm |
Operating Temperature |
-10 to 50℃ |
-10 to 40℃ |
With Li-Battery: 0 to 40℃ | ||
[Commodity Description]
Features:
1. Wireless HD Video Transmission for DSLR/DV
2. Support full-HD 1080p/60Hz video display with very low latency
3. Full-hardware for plug & play, no software needed
4. Up to 80m/260ft, effective range line of sight
5. Support external Li-battery supply for mobile convenience
6. Support Hot-shoe installation with 1/4 screw nut
7. Support audio input from external microphone
8. Hi-quality LCD screen display signal & battery status of product

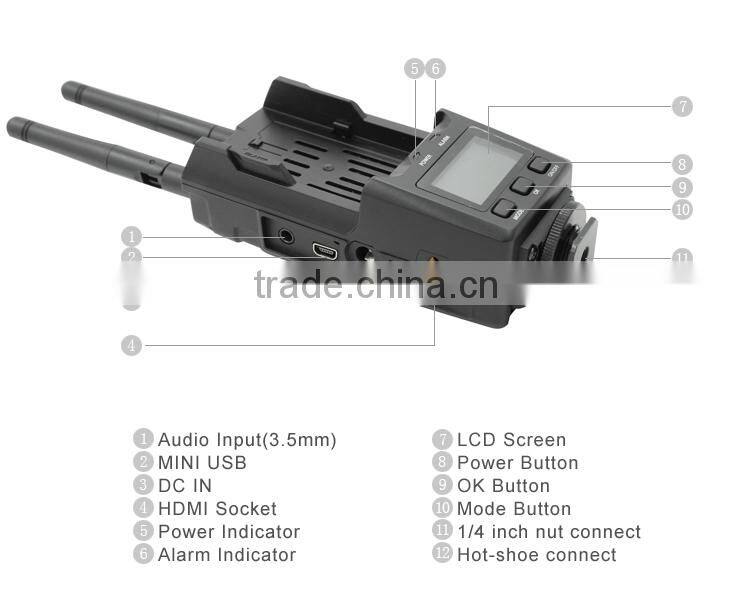

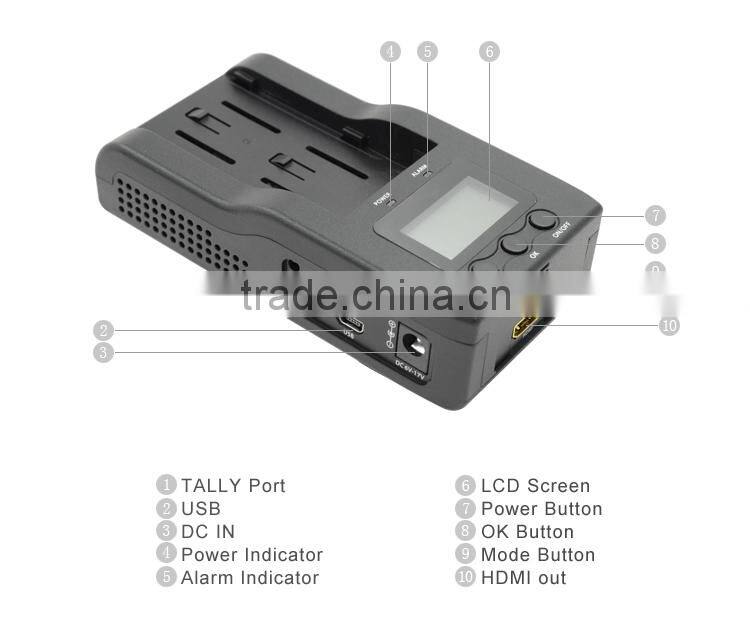

Panel Description:

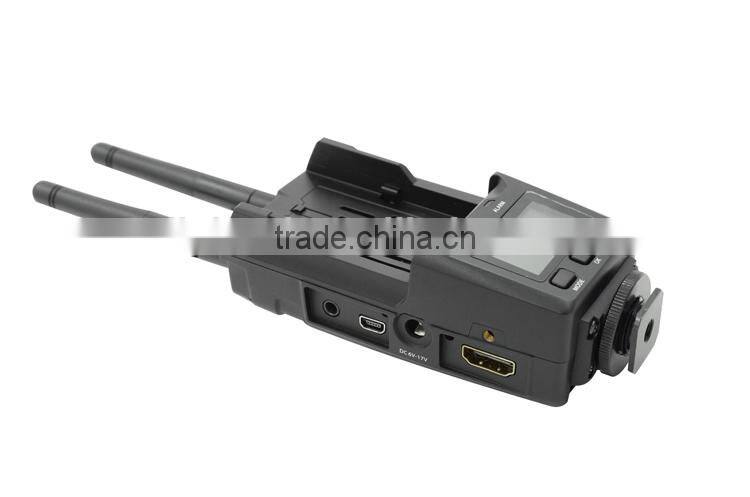

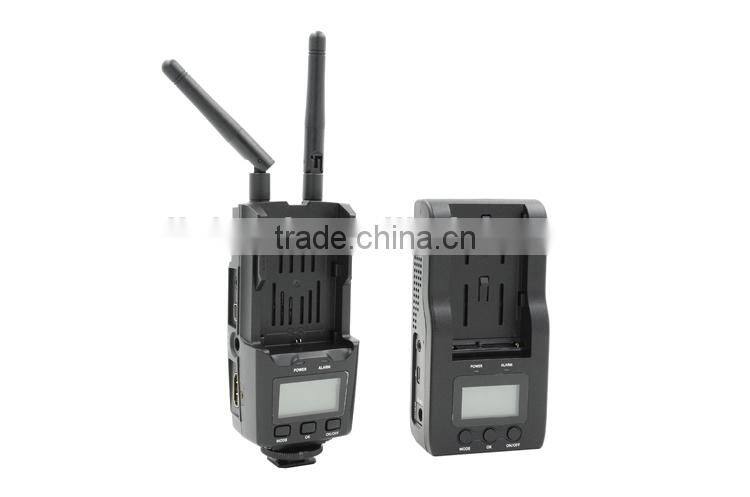

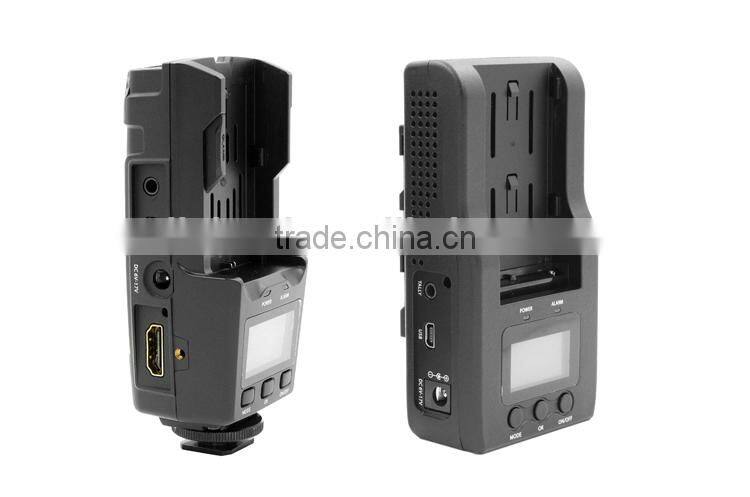

[Product Demonstration]

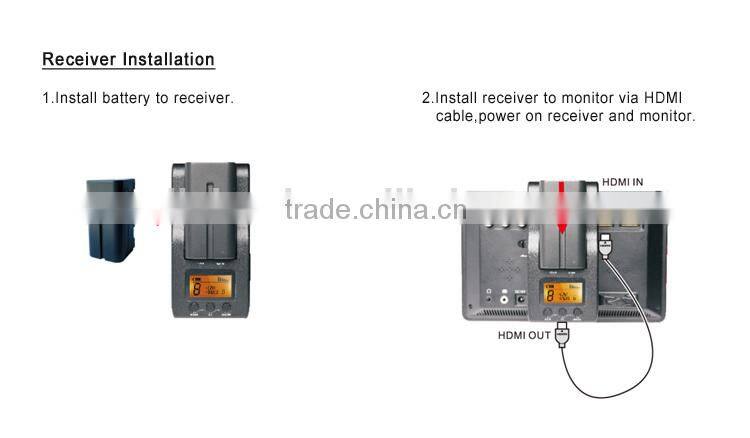

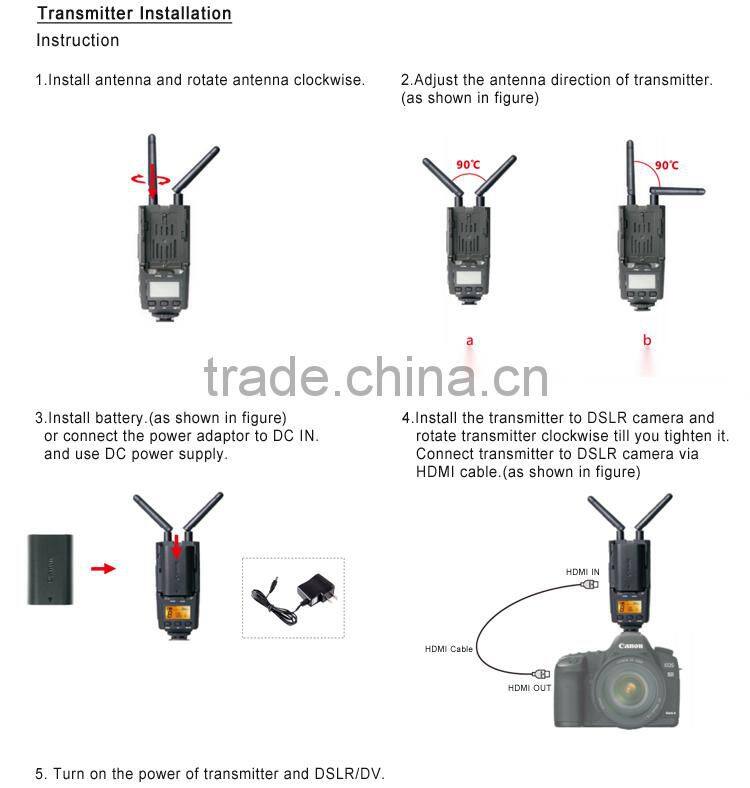

[Installation]
Connection and Operation:

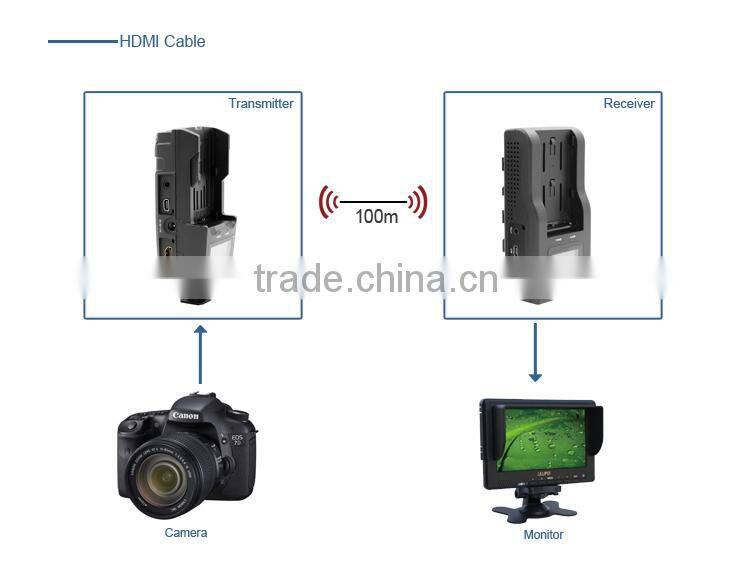

Connection Diagram:
[Packing Contents]
1. Main Unit. HDMI Wireless TV Signal Transmission
2. 1pcs Standard HDMI Cable
3. 1pcs Standard Mini HDMI Cable 90°
4. 2pcs Antenna
5. 2pcs DC 12V 1A Adapter
