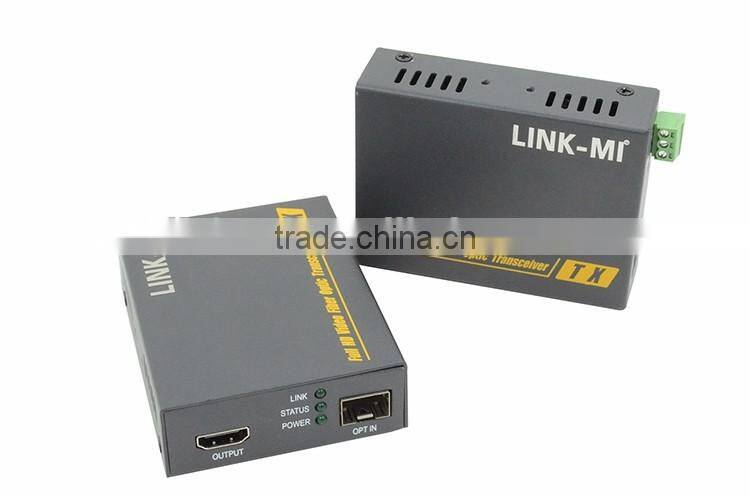

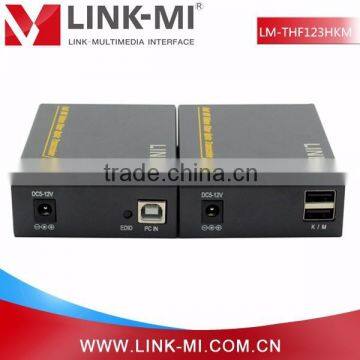

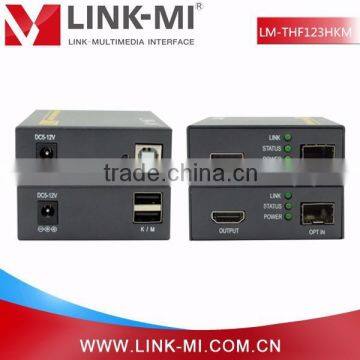

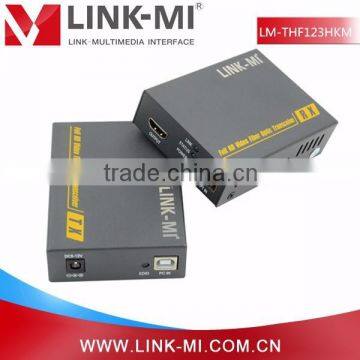

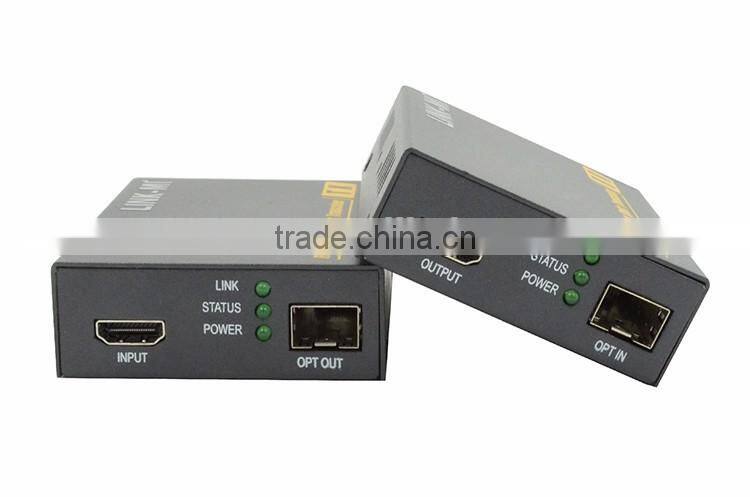

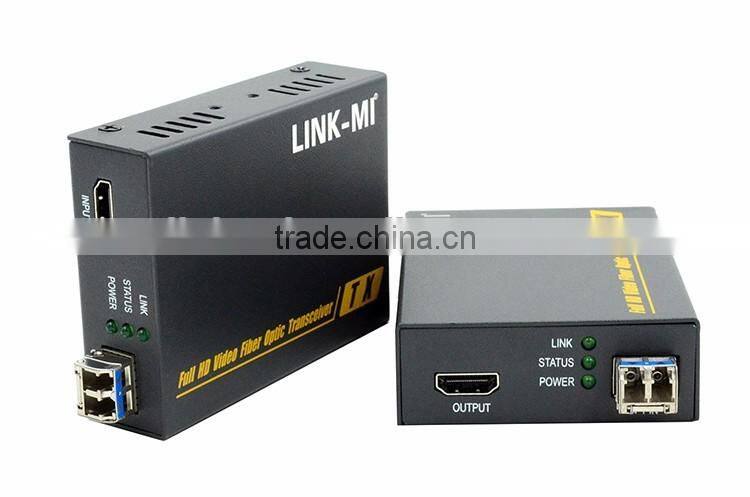

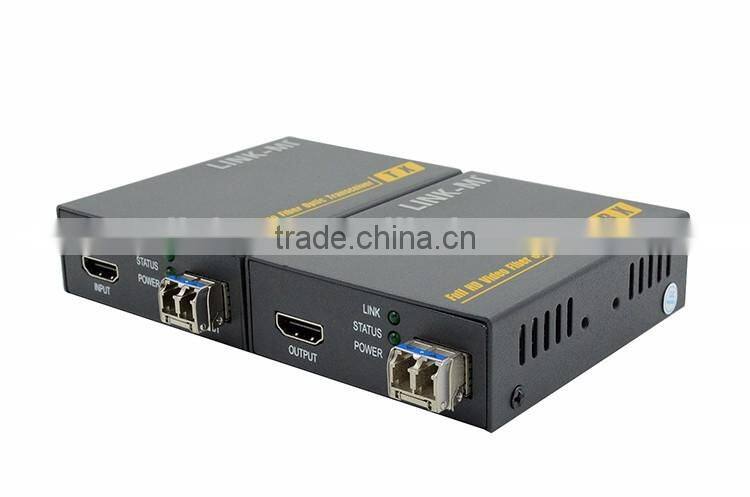

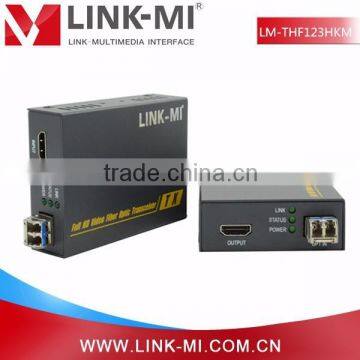

LINK-MI 2KM-10KM HDMI Fiber Optic Extender SFP model LC 4K*2K, EDID copy/pass-thru function EDID/HMDI 1.4 standard LM-THF123HKM
Description
LINK-MI LM-THF123HKM The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, EDID copy/pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
1.Uncompressed, no delay transmits HDMI video signals up to 300-10KM over fiber optic cable;
2.Support video resolution up to 3840*2160@30Hz,1920*1200@60hz,
3.1920*1080@60Hz, 3D signal, 4Kx2K@30HZ;
4.Double fiber cable pass-through transmits HDCP/EDID ;
5.Single fiber support copy EDID, but can’t pass HDCP;
6.Support RS232 Undirectional transmission
7.Support pass-through/copy EDID local transmission function.
8.Compliance with HDMI 1.4
9.High compatibility, can auto-match source and display device;
10.Built-in automatic adjustment system, make the image smooth, clear and stable;
11.Built-in ESD protection system;
12.Simple to install, plug and play.

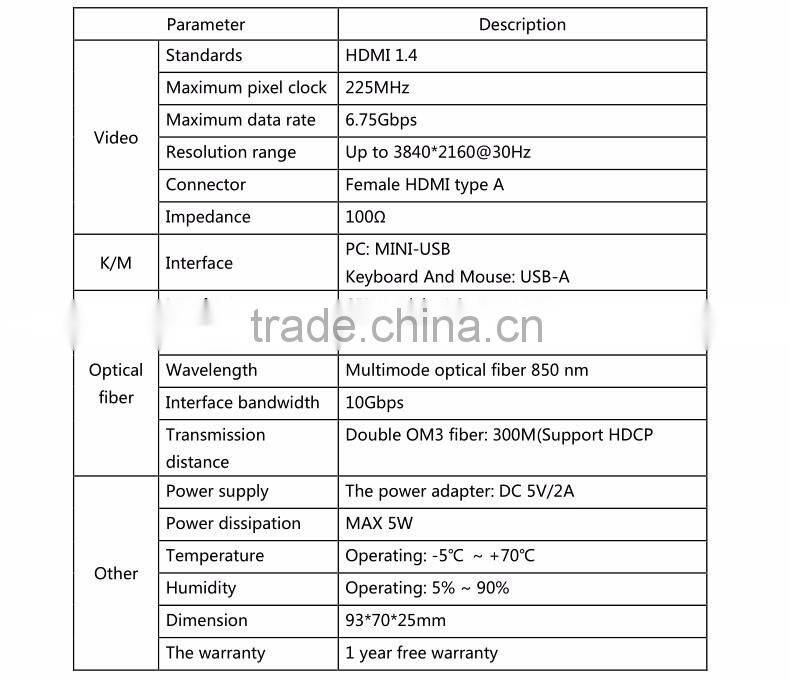

Specifications

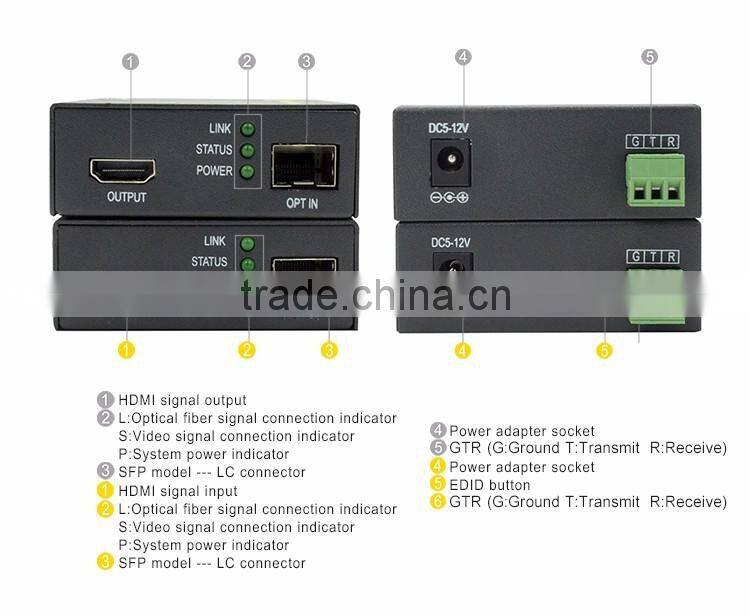

Panel

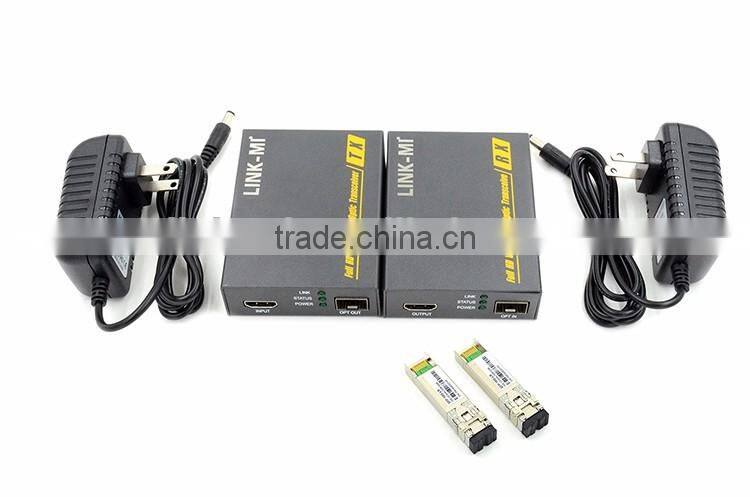

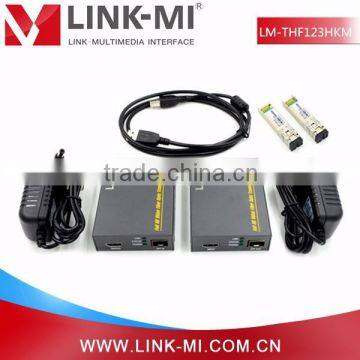

Package list
1.HDMI optical fiber transmitter …………1 PCS
2.HDMI optical fiber receiver………………1 PCS
3.Fiber optic module …………………………2 PCS
4.Power adapter…………………………………2 PCS
5.User manual……………………………………1 PCS
Installation
1.Connect the provided DC power supplies to the power socket of the transmitter and the receiver,
2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3.Connect the HDMI output port of receiver to the display device with HDMI cable,
4.Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

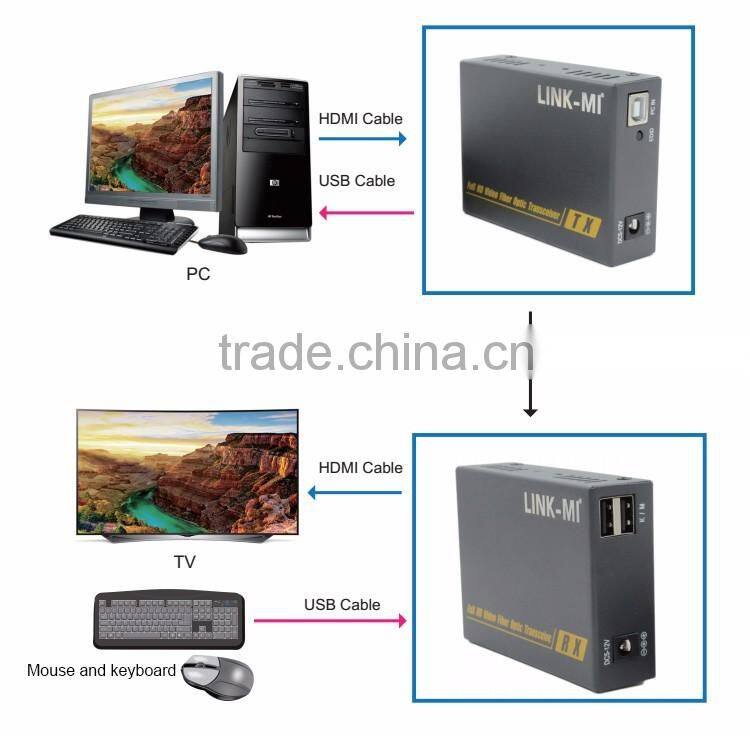

Diagram
