LINK-MI OEM LM-KVM801 1920x1440 HD Video 8 port HDMI KVM Switch with USB
Model NO.:LM-KVM-801
Key word: hdmi kvm switch
Main feature
1.Using only 1 set of keyboard, mouse and monitor to control 8 host devices.
2.Support Windows 95/98/2000/2003/NT/XP/WIN7/WIN8, Linux, Unix, MAC OSS.
3.Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.
4.Support auto switching (monitor the devices in a specified time interval.
5.Support keyboard hot keys to control KVM switch.
6.Available to use keyboard and mouse without any delay after switch host devices.
7.Support auto switching host devices by just moving mouse.
8.Support resolution up to 1920*1440.

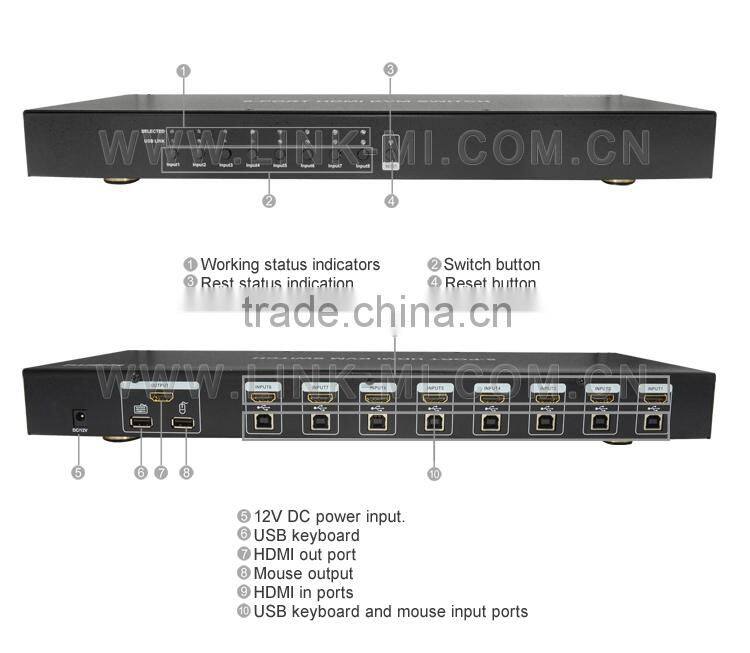

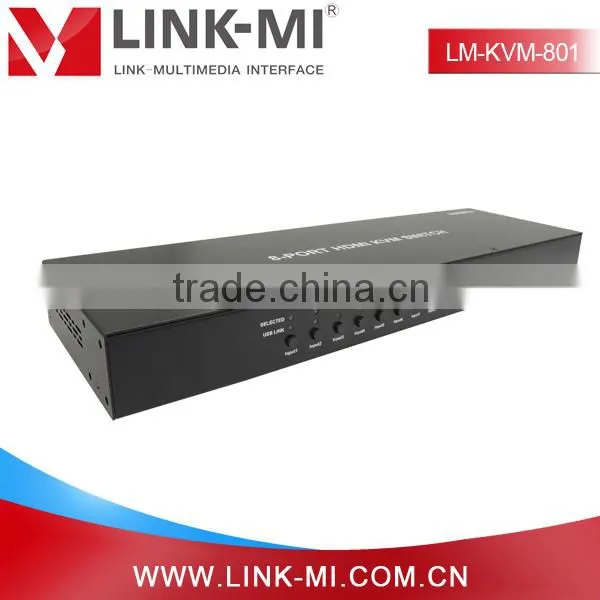

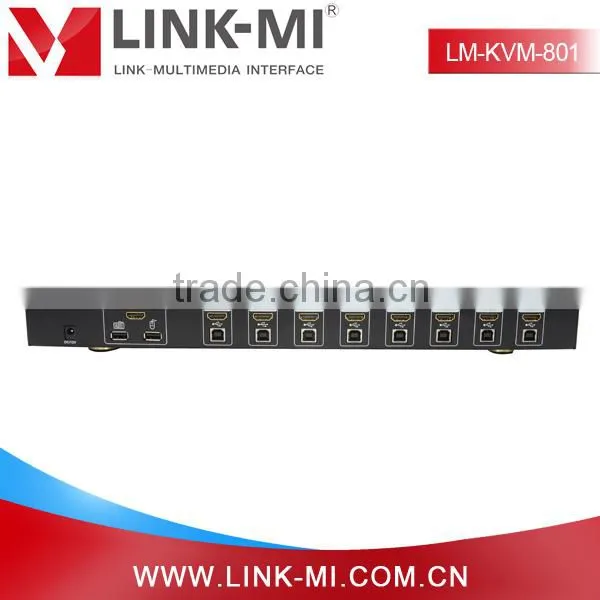

Panel description
Connecting and operating
(1) Connect all the PCs to the HDMI KVM switch, then start all the PCs.
(2) After all the PCs are started in step 1, then you can switch to any PC by keyboard hot key or the key pad on the KVM panel. (For example, if you want to control the PC connected to HDMI IN 2 just press the key under the PORT 2 LED indicator, or the keyboard hotkey commands described following).

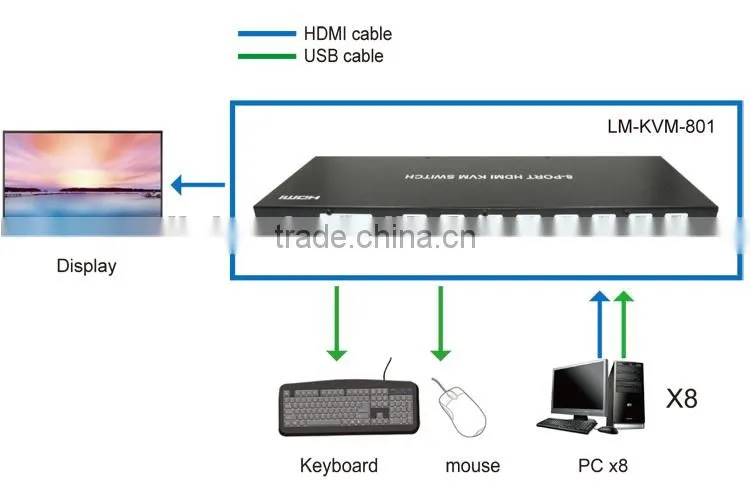

Connection diagram

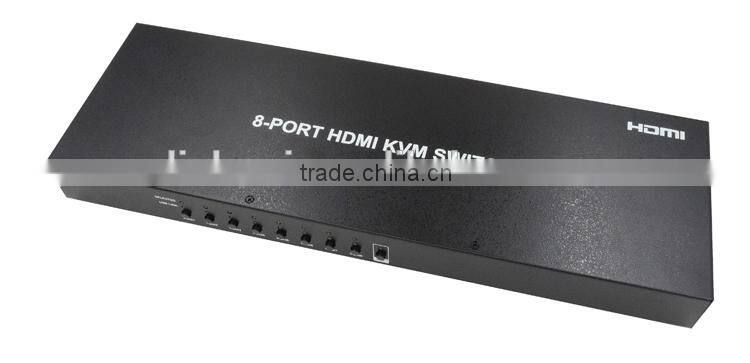

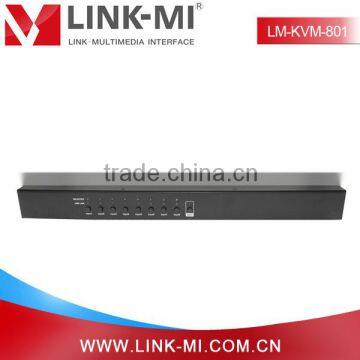

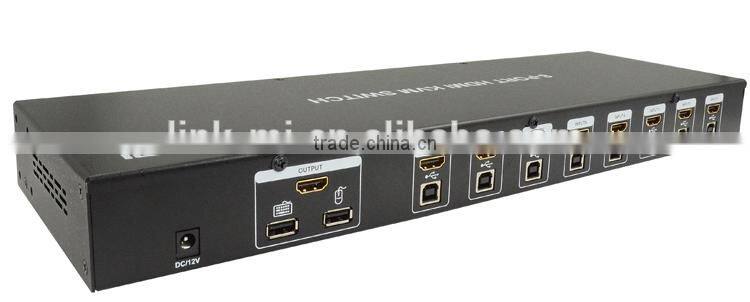

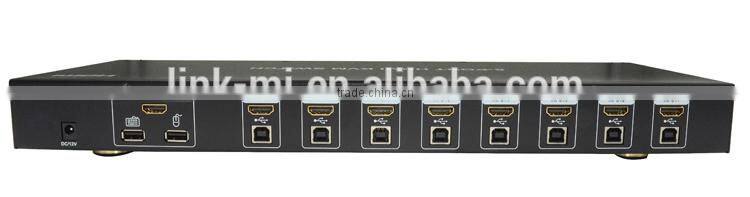

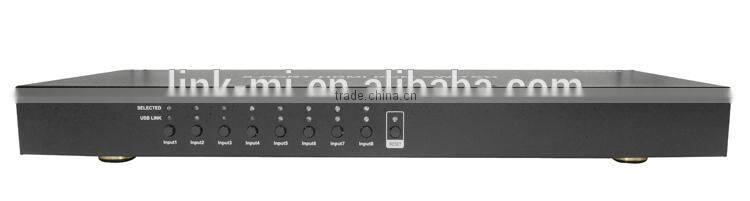

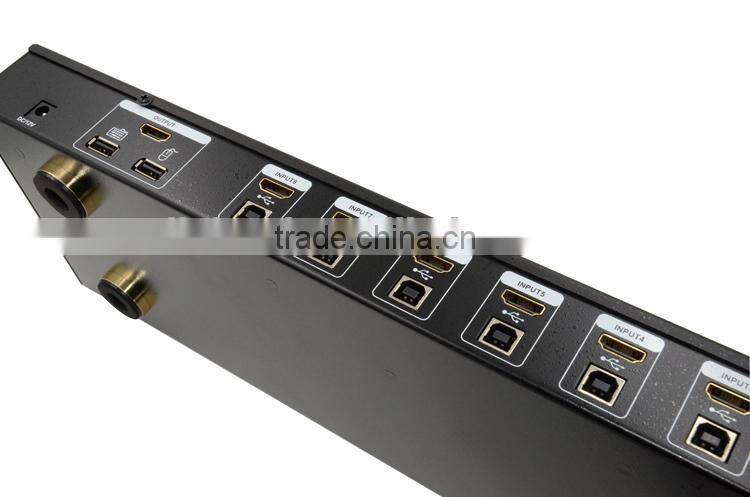

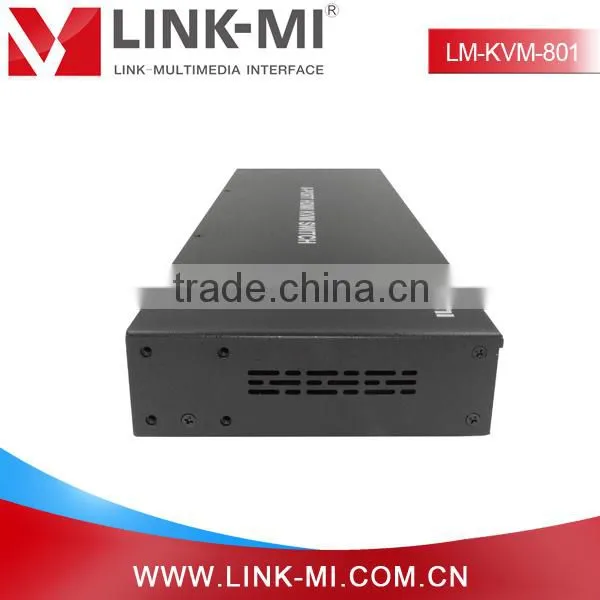

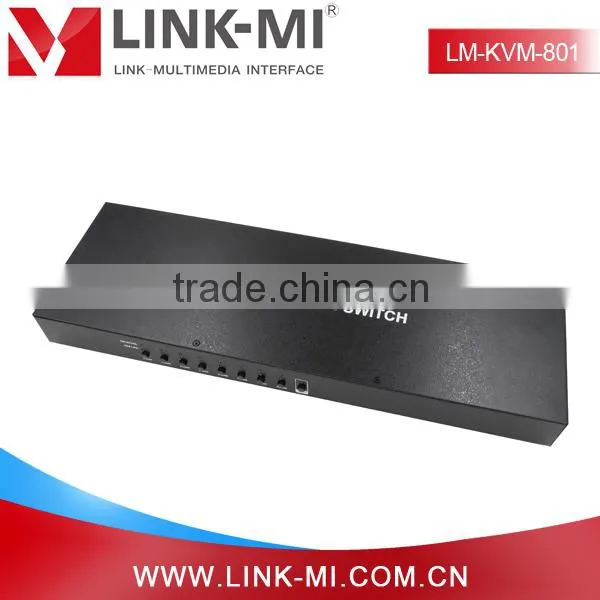

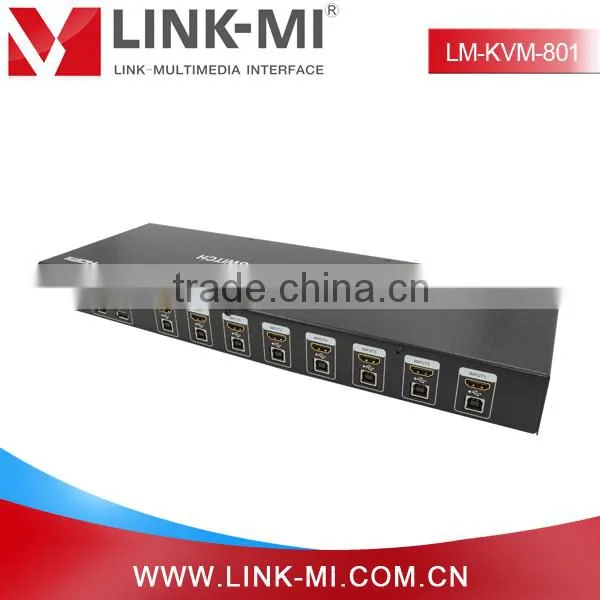

Product Image
Specification
Function | LM-KVM-801 | ||
Port Selection | HotKey, Pushbutton | ||
Connectors | Console Ports | Keyboard | 1xUSB Type A Female |
Video | 1x HDMI Female | ||
Mouse | 1x USB Type A Female | ||
KVM Ports | Keyboard/Mouse | 8xUSB Type B Female | |
Video | 8xHDMI Female | ||
Power | 1xDC Jack | ||
Switches | Port Selection | 8xPushbutton | |
Reset | 1xPushbutton | ||
Switch control way | Auto Switching, Timing Switch, Mouse movement switching | ||
LEDS | USB Link | 8( Green) | |
On line/Selected | 8( Green) | ||
Rest | 1( Red ) | ||
Emulation | Keyboard/Mouse | USB | |
Bandwidth | 2.25Gbps | ||
Video | Resolution (Max) reach up to 1080p(1920*1440) | ||
Scan interval | More than 1's ( Default 6 secs) | ||
Power Consumption | DC 12V,5watts ( Max) | ||
Environment | Operation Temperature | +32 to +104 ℉ (0 to +40℃) | |
Storage Temperature | -4 to +140 ℉ (-20 to +60℃) | ||
Humidity | 20-90%RH(No condensation) | ||
Physical Properties | Housing | Metal, Black | |
Weight | 1.85kg | ||
Dimensions(LxWxH) | 48.1X14.2X4.4cm | ||

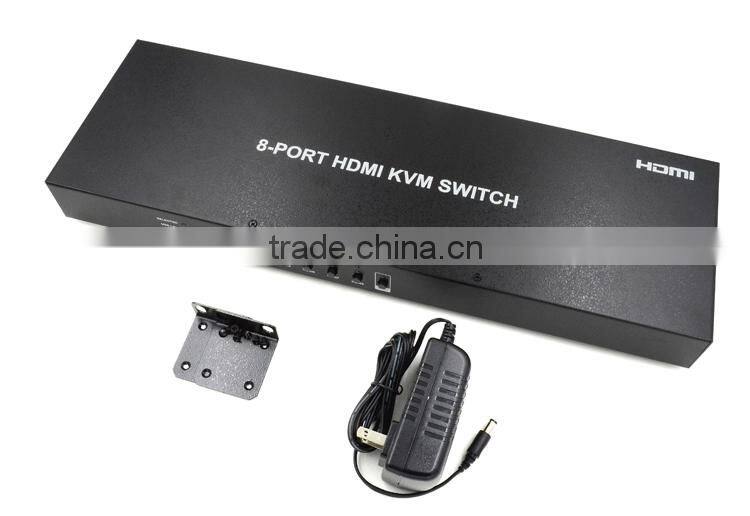

Packing Contents
1) 8-Port HDMI KVM switch
2) 12V DC Power Supply
3) Operating Instructions
4) 1 pair Mounting ear
