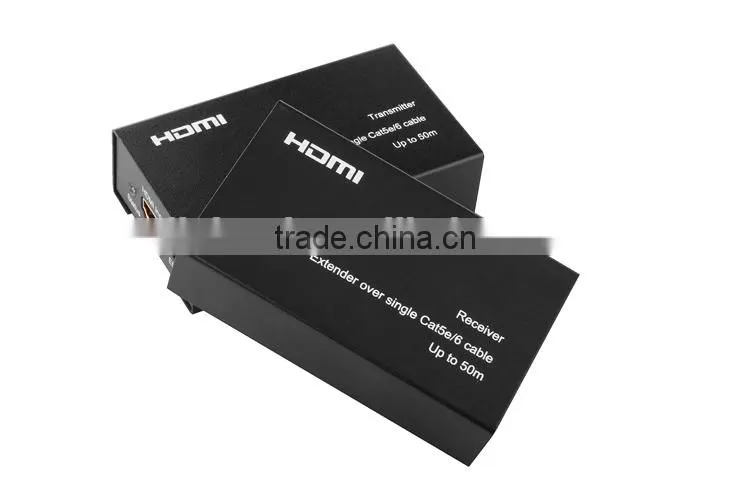

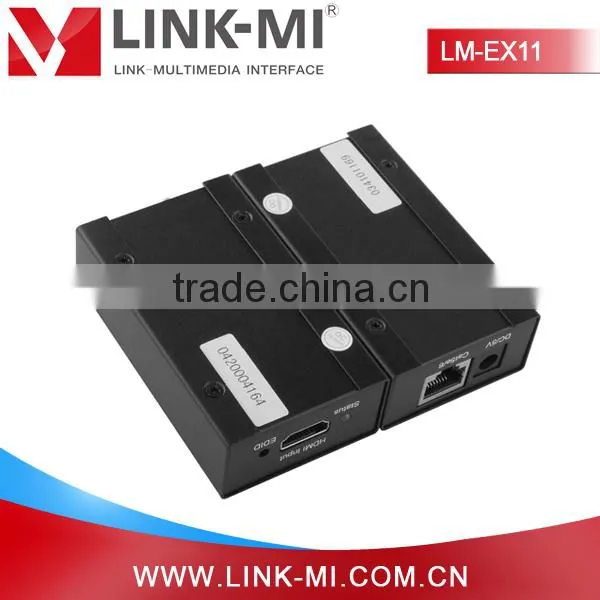

LM-EX11 50m HDMI Extender over Cat5e x1 with EDID Copy Function
Model: LM-EX11
Color: Black
Size: 83x48x25mm
Keyword: HDMI Extender Cat5e x1
LM-EX11 HDMI Extender Cat5e x1
LM-EX11 HDMI Extender Cat5e x1 is a high quality HDMI Extender product, supports 36 bit deep color, high definition video format 1080p, 3D Video and digital audio, extend HDMI Signal 1080p up to 50m over single cat5e/6 cable, with EDID Copy function.
Features:
1. Each set includes one transmitter and one receiver.
2. Use single UTP LAN cable(Cat5E/6)to substitute HDMI cable to achieve long distance transmission, the UTP Cable follows the standard of IEEE-568B.
3. Transmission distance extend up to 50 meters under 1080P .
4. Supports Deep Color up to 36 bits.
5. Supports lossless compressed digital audio: Dolby True-HD, DTS-HD Master Audio.
6. Transmit Digital Audio and Video over the CAT6 / CAT5e cable with zero signal loss.
7. Data transfer speed 6.75 Gbps.
8. DC 5V power supply.
9. EDID copy function.
Product Description:
[Specifications]
Operating Temperature Range |
-5 to +35℃(+23 to +95℉) |
Operating Humidity Range |
5 to 90%RH (No Condensation) |
Input Video Signal |
0.5-1.0 Volts P-P |
Input DDC Signal |
5 volts p-p(TTL) |
Support Video Format |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P 3D video |
Video Output |
HDMI ,HDCP |
Support Audio Format |
DTS-HD Master Audio,Dolby true-HD etc. |
Transmission Distance |
1080P 8-bit 50m(Maximum) over single CAT5E/6 /24AWG/Solid |
Power consumption |
5watts(Maximum) |
Dimension (L×W×H) |
83x48x25mm |
Net Weight |
250g(Pair) |
[Installation]
Connecting and Operating:

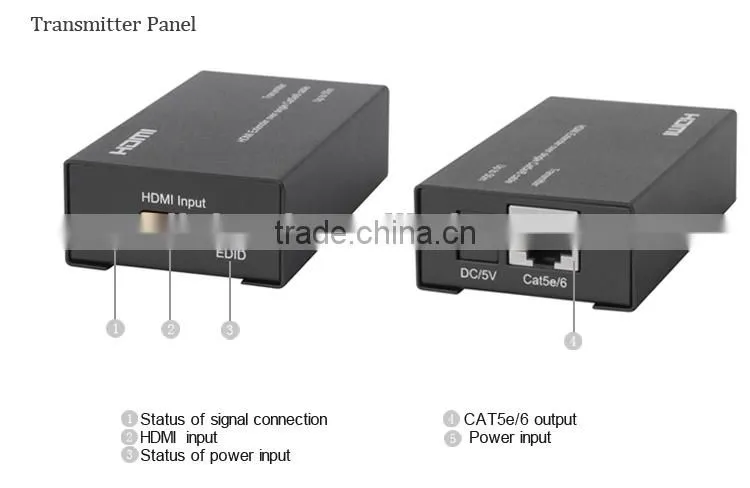

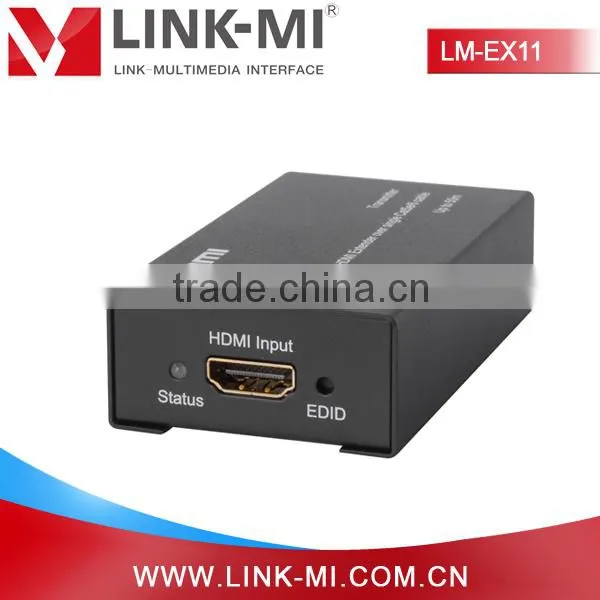

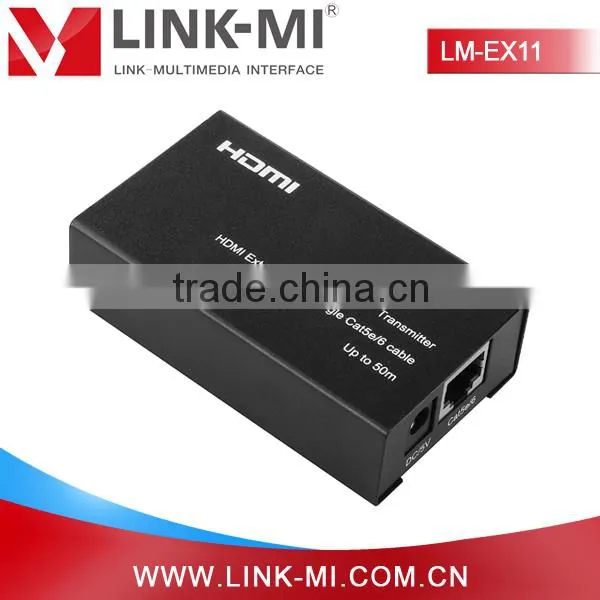

1) Connect the HDMI signal sources (Such as PS3, STB etc) to HDMI Transmitter.
2) Connect CAT5e or 6cables to both the outputs of the transmitter and inputs of the Receiver. (The cables must follow the standard of EIA-TIA 568B).

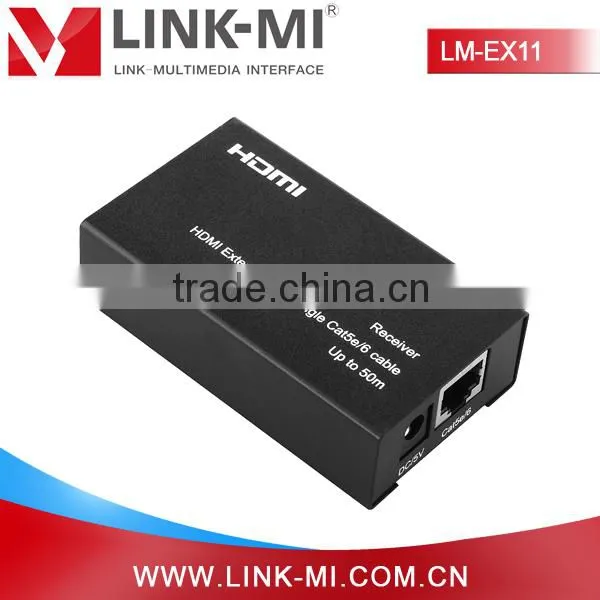

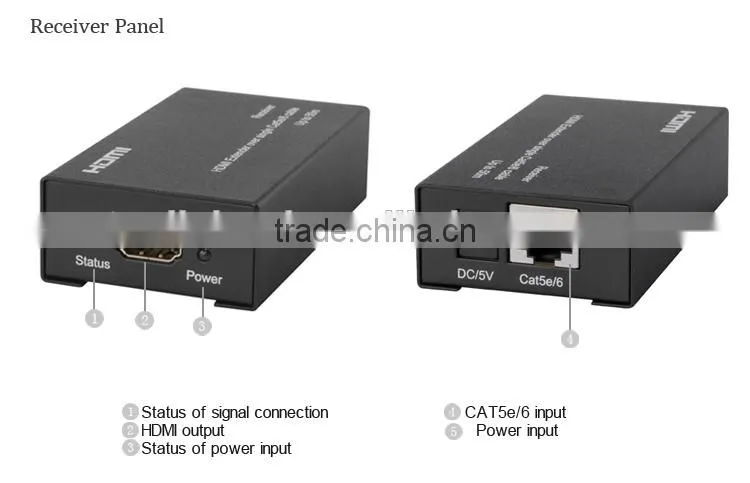

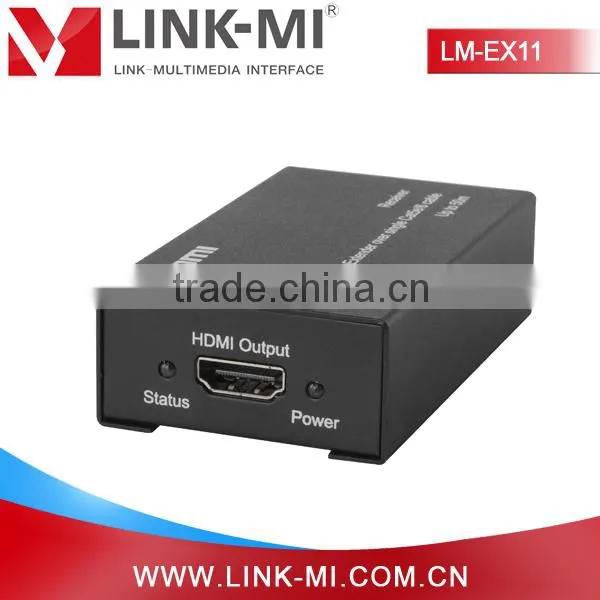

3) Connect the HDMI output (Such as HD-LCD, HD-DLP) into the Receiver.
Attention: Insert/Extract cables gently.
Connection Diagram:
[Product Demonstration]
[Packing Contents]
1) Main Unit. Transmitter & Receiver HDMI Extender
2) DC 5V 1A x2PCS
3) Operating Instructions
