12-12mm chrome plated metal Ball Socket/connector with M5

Specifications

1.Ball socket to fit M5
2.Suitable for Diam 12mm ball stud
3.gas spring metal Ball socket effective length 12mm

12-12mm chrome plated metal Ball Socket with M5

1. We have attained ISO9001 certification and also have been audited by the SGS Group.
2. Material: Low carbon steel or Mild stell, Q235.
3. Inner parts are full of lubricate oil, induction hardened balls are wear resistant.
4. Retaining ring inside, without safety clip ouside
5. Surface protection: Nickle plating Optional: Electroplated, Phosphatized and oiled, galvanized in white or yellow or blue or black, passivated by chrome or nickle.
6. A wide range of gas spring metal ball socket in differents sizes, materials and finishes for easy installation of your gas spring or other industrial applications.

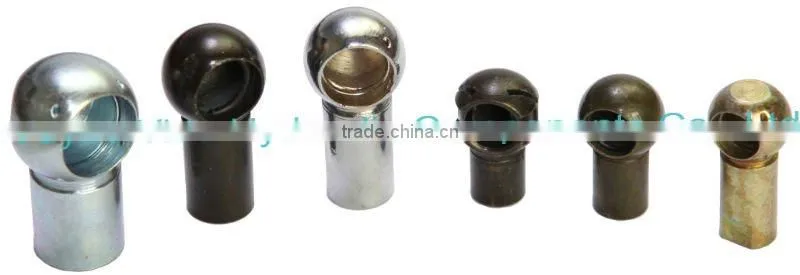

More photos & Drawing ABOUT Gas spring metal Ball socket:

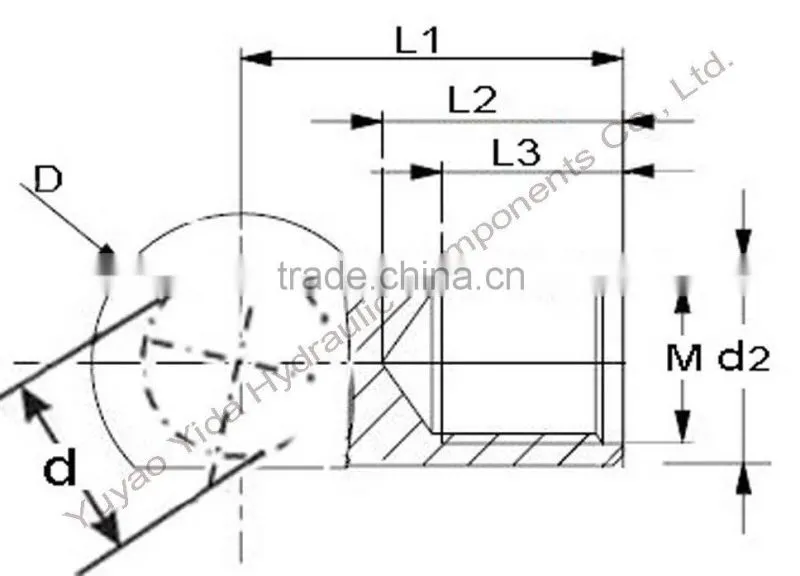

Metal Ball Socket with snap ring for gas spring (dimension in mm)
Type	D	d	M	d2	L1	L2	L3
JQ01	12	8	M5	8	12	8	7
JQ02	16	10	M6	10	20	13	13
JQ03	16	10	M8	10	20	14	13
JQ04	16	10	M6	10	20	13.5	13
JQ05	18	10	M8	11	20	14	13
JQ06	18	10	M8	11	19	12.5	12
JQ07	20	13	M10	13	23	16	15

Many types are available, special versions upon request!
For more information, please contact us!
