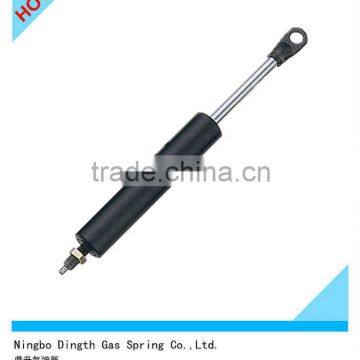

Rigid lockable Gas Strut(400N)

Specifications

Rigid lockable Gas Strut(400N)
1)TS16949 certificate
2)Good performance
3)Produce as your drawings

Lockable Gas Spring





What's lockable gas spring?

A lockable gas spring is a basic type of lockable gas spring, where the locking is achieved in gas. It is typically applied for use in seat height adjustment. The piston travels completely in compressible nitrogen gas. When the valve is closed, this type can be positioned anywhere along the stroke but the locking is elastic. Depending on the amount of force applied, a displacement will take place when locked, allowing for comfortable damping. The construction corresponds mainly to that of a standard gas spring, only instead of a nozzle works a piston in the gas chamber. The gas which is on both piston sides can be compressed with the corresponding load. The locking force is, depending on the position of the piston, more or less low. The smaller the gas chamber between piston and the respective end part, the higher the figure.



Where is lockable gas spring applied for ?

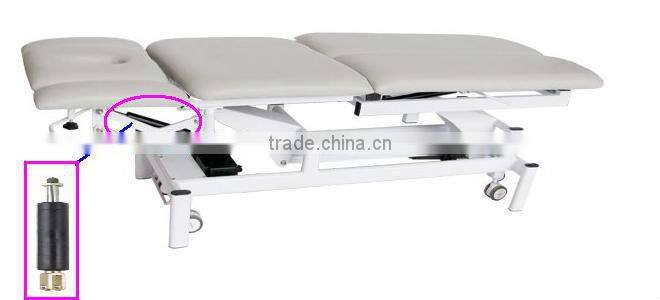

1. physiotherapy couch

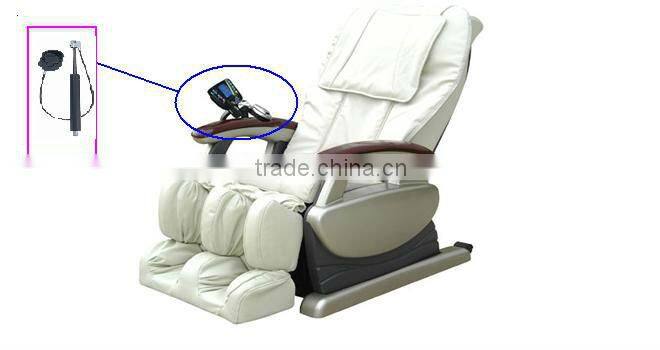

2.Massage armchair

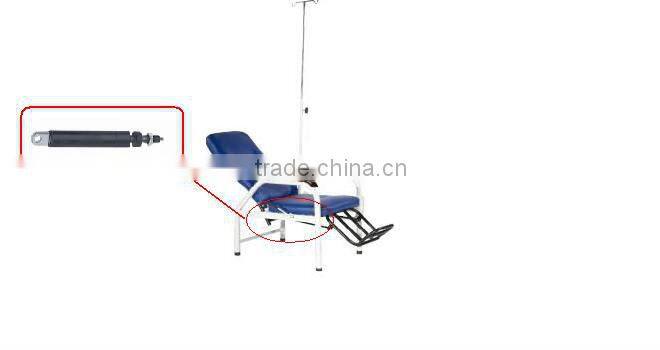

3.Transfution chair

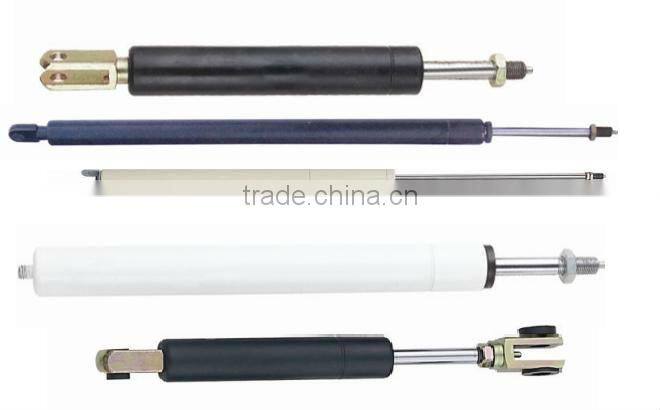

Our Locking Gas Spring Detail Show:



Dimensions table:
