Help Center16-13-12OD End Cap With M6
US$ 0.139 - 0.195
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
EC
Model Number:
EC13
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6-8-16OD End Cap for Gas SpringUS$ 0.067 - 0.098MOQ: 5000 Pieces -
Gas Spring End CapUS$ 0.083 - 0.248MOQ: 10000 Pieces
-
16-13-12OD End Cap With M6 for Gas SpringUS$ 0.139 - 0.191MOQ: 10000 Pieces
-
13-10-9OD End Connectors With M6 for Gas SpringUS$ 0.108 - 0.182MOQ: 5000 Pieces
-
20-16-16OD End Cap Connector With M8 for Gas SpringUS$ 0.109 - 0.183MOQ: 5000 Pieces
Place of Origin
Zhejiang, China
Brand Name
EC
Model Number
EC13
Specifications
1.Thread M82.end cap Outside Diameter 16x13x12mm
3.gas spring end cap Length 23mm
16-13-12OD End Cap with M6 for Gas spring
- We have attained ISO9001 certification and also have been audited by the SGS Group.
- Material: Low carbon steel or Mild stell, Q235.
- Surface protection: Phosphatized and oiled.
- A wide range of Gas spring end cap in differents sizes, materials and finishes for easy installation of your gas spring or other industrial applications.

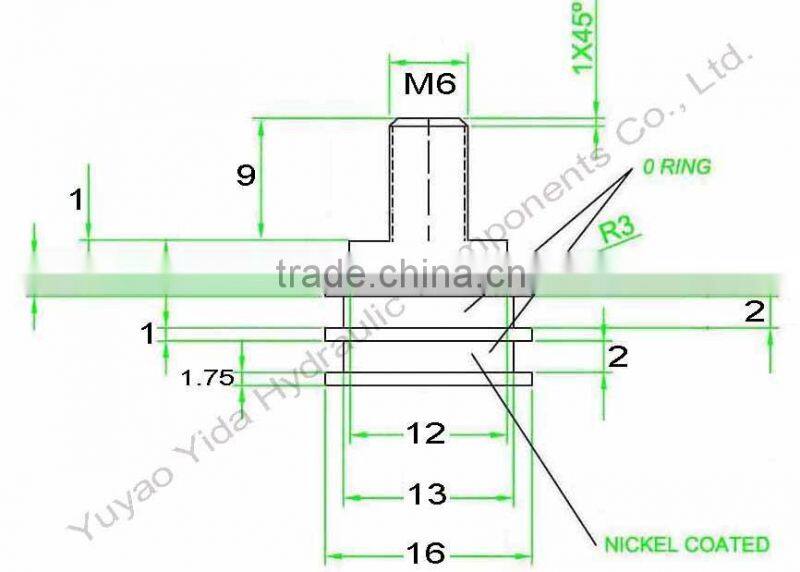

More photos & Drawing ABOUT Gas spring end cap:
End cap with metal eye, Terminal connector, Tube eyelet(dimension in mm) | ||||||
Type | d | d1 | d2 | d3 | h1 | h2 |
EC12 | 7 | 16 | 15 | 19 | 10 | 1 |
EC13 | / | 12 | 13 | 16 | 9 | 1 |
| h3 | h4 | h5 | h6 | h7 | M |
EC12 | 4 | 1 | 1.75 | 3 | 3 | / |
EC13 | 6 | 1 | 1.75 | 2 | 2 | M6 |
Many types are available, special versions upon request!
For more information, please contact us
