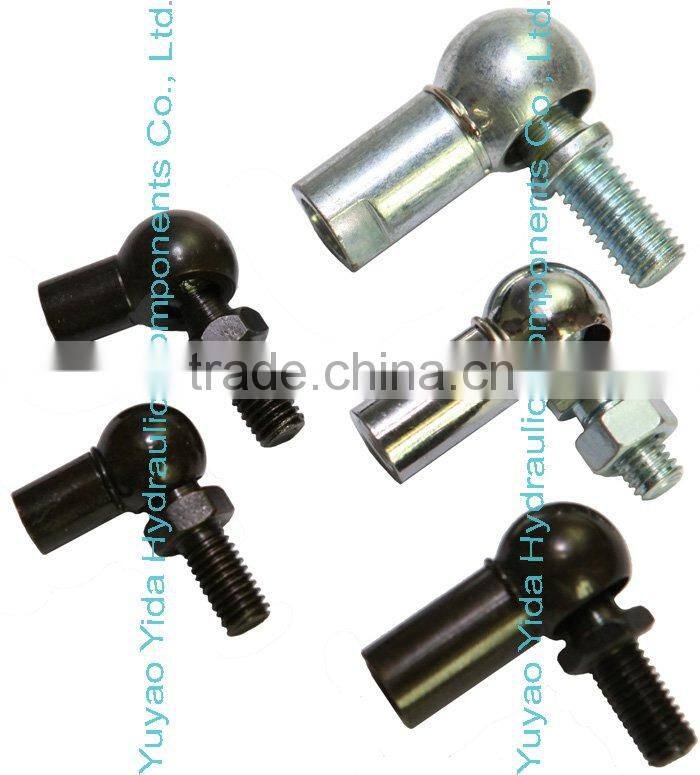

20-8-21mm White Zinc Plated Metal Ball Joint With M6 and M5 for Gas Spring

US$ 0.825 - 1.237 MOQ: 1000 Sets

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

BJ01

Ningbo Dingth Gas Spring Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name BJ

Model Number BJ01

Specifications

Gas spring metal Ball Joint
1.Ball socket to fit M6 effective length 20mm
2.Ball stud Diam 8mm M6 and effective length 5mm

20-8-21mm white zinc plated metal Ball and socket Joint with M6 and M5 for Gas spring

We have attained ISO9001 certification and also have been audited by the SGS Group.
Material: Low carbon steel or Mild stell, Q235.
Inner parts are full of lubricate oil, induction hardened balls are wear resistant.
Ball stud effective length 21mm
Surface protection: White zice plating
Optional: Electroplated, Phosphatized and oiled, galvanized in white or yellow or blue or black, passivated by chrome or nickle.
Retaining ring inside & safety clip ouside.

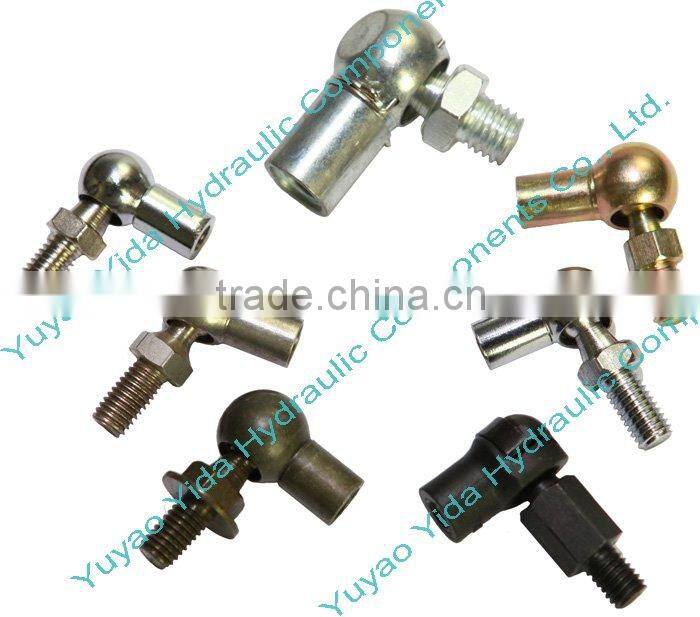

A wide range of gas spring metal ball and socket joints in differents sizes, materials and finishes for easy installation of your gas spring or other industrial applications.

More photos & Drawing ABOUT Gas spring metal Ball and socket Joint:

Metal Ball Joint for Gas spring (dimension in mm)
Type	A1	A2	B	C	D	E
BJ01	M5	M6	11	10	20	8
BJ02	M5	M6	15	10	16	8.5
BJ03	M8	M8	13.5	17	32	13
BJ04	M8	M6	13	16	20	9
BJ05	M8	M8	15	16	30	13
BJ06	M12	M12	17	20	36	16
BJ08	M10	M10	18	20	36	16
BJ09	M12	M12	21	11	33	16
